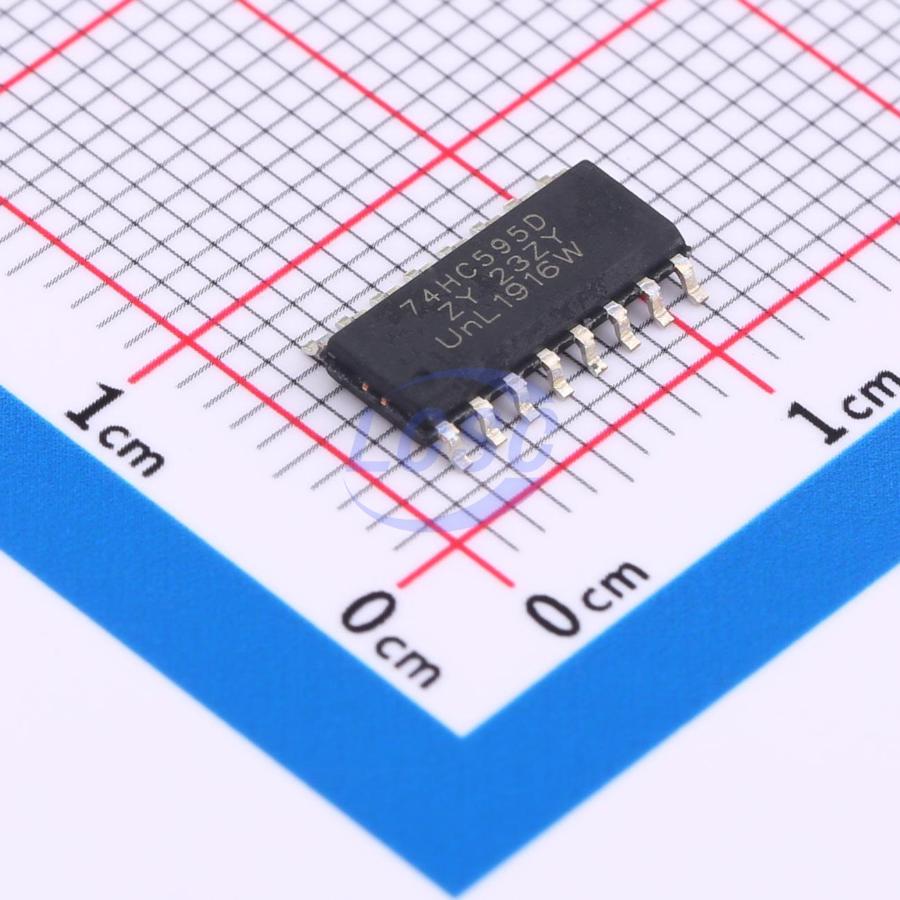

74HC595
2V~6V 1 35mA 100ns@5V,50pF Serial-to-Serial or Parallel SOP-16 Shift Registers
SOP-16RoHSActive
8-bit CMOS shift register
- Manufacturer
- GR
- Manufacturer part #
- 74HC595
- Store part #
- C18164493
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56,790 in stock
#C18164493
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.26 | ₹92.60 |
| 100+ | ₹7.18 | ₹718.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 1,000+ | ₹5.36 | ₹5,360.00 |
| 4,000+ | ₹4.66 | ₹18,640.00 |
| 8,000+ | ₹4.35 | ₹34,800.00 |
10 × ₹9.26
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC595
₹92.60 for 10 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 35mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 100ns@5V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
74HC595 is an 8-bit CMOS shift register. The 8-bit parallel output port features controllable tri-state outputs and one serial output port, enabling multi-stage serial cascading to form 8n-bit (n = number of chips) parallel output.
Applications
- LED digit display driving
- Automation engineering control
Key features
- Low input current: ≤1uA
- Low power consumption: Icc ≤ 5.0μA @ VCC = 6V
- Controllable tri-state output design
- Standard SPI interface
- CMOS serial output, supports cascading of multiple devices
- Package: DIP16, SOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC595NS16ACRDQ#C52766795GR · SOP-16 | GR | SOP-16 | 2,860 | ₹7.70 · 2,860 in stock | View |
