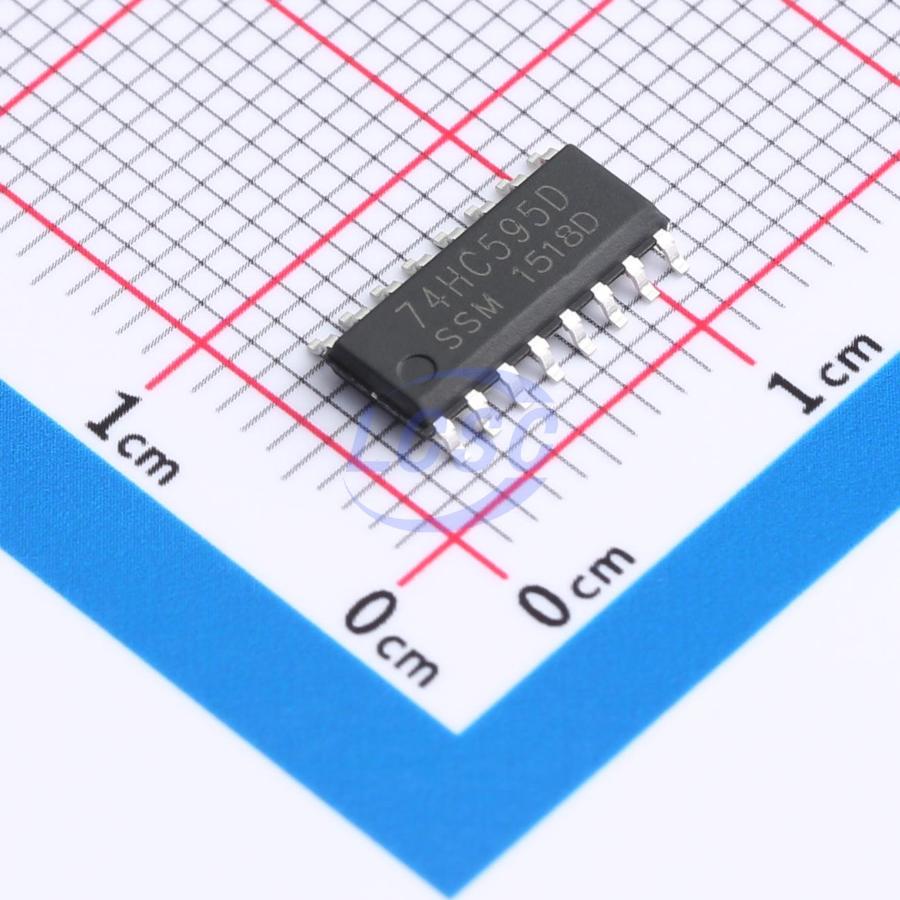

74HC595-TD
2V~6V 1 100ns@5V,50pF Serial-to-Serial or Parallel SOP-16 Shift Registers RoHS
SOP-16ROHS CompliantActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 74HC595-TD
- Store part #
- C42421783
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C42421783
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.80 | ₹88.00 |
| 100+ | ₹6.95 | ₹695.00 |
| 300+ | ₹6.03 | ₹1,809.00 |
| 2,500+ | ₹5.34 | ₹13,350.00 |
| 5,000+ | ₹4.79 | ₹23,950.00 |
| 10,000+ | ₹4.51 | ₹45,100.00 |
10 × ₹8.80
₹88.00
excl. GST
₹103.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC595-TD
₹88.00 for 10 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Series
- 74HC
- Number of Elements
- 1
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 100ns@5V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.276 g
Overview
The 74HC595 is an 8-bit CMOS shift register. It features an 8-bit parallel output port with controllable tri-state outputs and a serial output port, enabling multi-stage cascading to form 8n-bit (where n is the number of ICs) parallel output.
Applications
- LED digit driver
- Automation engineering control
- Other application areas
Key features
- Low input current: ≤1μA
- Low power consumption: Icc≤5.0μA @ VCC=6V
- Controllable tri-state output design
- Standard SPI interface
- CMOS serial output, supports cascading of multiple devices
- Package: DIP-16, SOP-16, TSSOP-16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC595D-TD#C52437591TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 630 | ₹8.49 · 630 in stock | View |
