HXY MOSFETDatasheet (PDF)

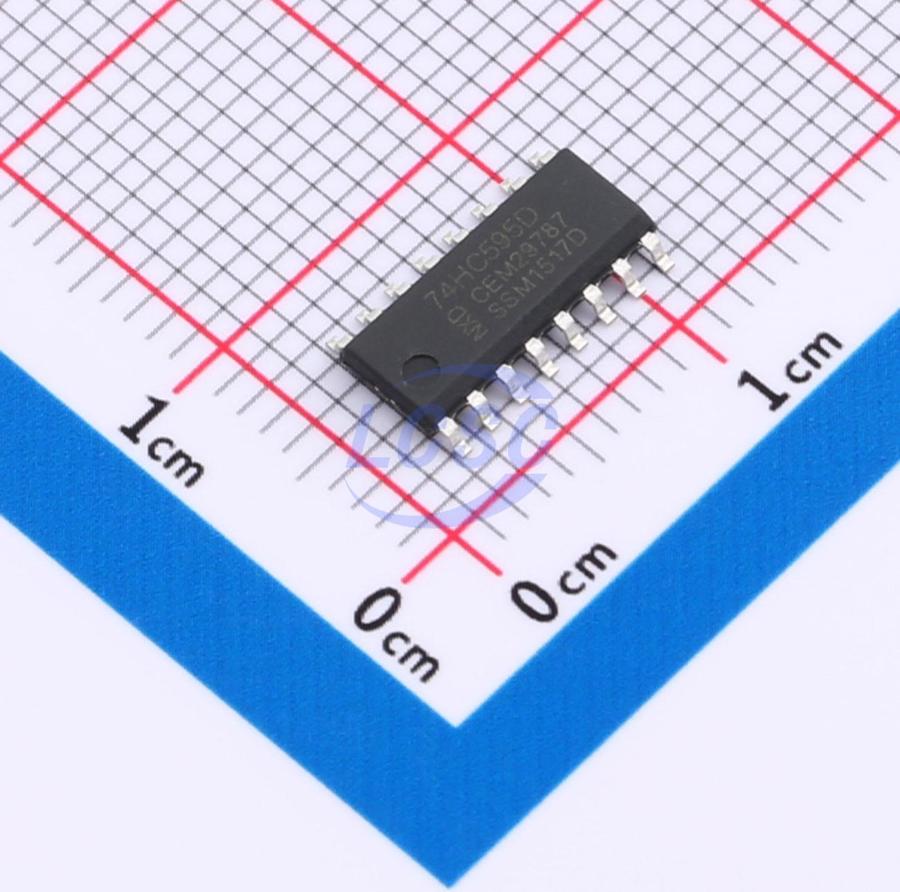

74HC595D
2V~6V Serial-to-Serial or Parallel SOP-16 Shift Registers RoHS
SOP-16ROHS CompliantActive
8-bit shift register with serial input and serial or parallel output and a tri-state output latch
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 74HC595D
- Store part #
- C5451631
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,490 in stock
#C5451631
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.00 | ₹100.00 |
| 100+ | ₹8.20 | ₹820.00 |
| 300+ | ₹7.29 | ₹2,187.00 |
| 2,500+ | ₹5.52 | ₹13,800.00 |
| 5,000+ | ₹4.97 | ₹24,850.00 |
| 10,000+ | ₹4.71 | ₹47,100.00 |
10 × ₹10.00
₹100.00
excl. GST
₹118.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC595D
₹100.00 for 10 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Series
- 74HC
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.301 g
Overview
The 74HC595D is a high-speed silicon gate CMOS device with pin compatibility with low-power Schottky TTL. The device incorporates an 8-bit shift register and an 8-bit D-type latch with 3-state parallel outputs. The shift register accepts serial data and provides serial or parallel outputs, while simultaneously supplying parallel data to the 8-bit latch. The shift register and latch have separate clock inputs. The device also includes an asynchronous reset for the shift register.
Key features
- 8-bit shift register (serial input, serial or parallel output)
- Latch with tri-state output
- Typical shift output frequency: 60MHz
- ESD protection
- Package: DIP16, SOP16
