HANSCHIP semiconductorDatasheet (PDF)

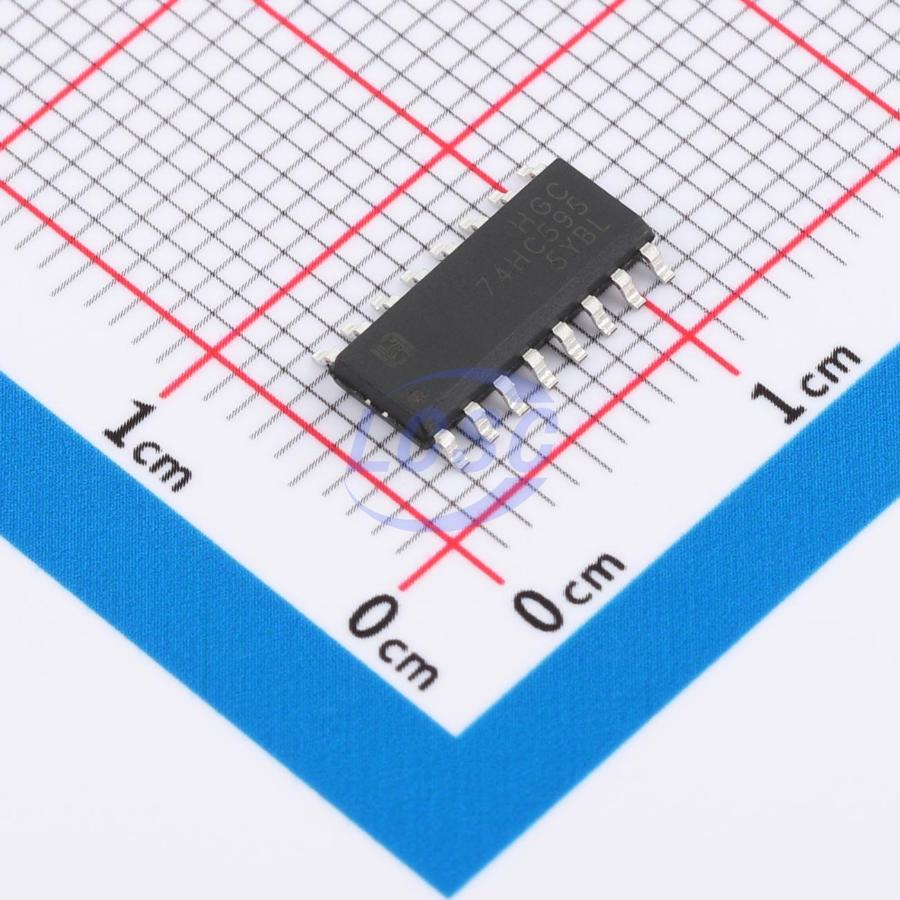

74HC595DRG
3.2V~5.5V 35mA 100ns@5V,50pF Serial-to-Parallel SOP-16 Shift Registers RoHS
SOP-16ROHS CompliantActive
8-bit CMOS shift register
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- 74HC595DRG
- Store part #
- C42433274
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,150 in stock
#C42433274
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.31 | ₹93.10 |
| 100+ | ₹7.40 | ₹740.00 |
| 300+ | ₹6.43 | ₹1,929.00 |
| 2,500+ | ₹5.70 | ₹14,250.00 |
| 5,000+ | ₹5.12 | ₹25,600.00 |
| 10,000+ | ₹4.84 | ₹48,400.00 |
10 × ₹9.31
₹93.10
excl. GST
₹109.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC595DRG
₹93.10 for 10 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 3.2V~5.5V
- Output Type
- Tri-State
- Series
- 74HC
- Output Current
- 35mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 100ns@5V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.281 g
Overview
The 74HC595 is an 8-bit CMOS shift register. It features an 8-bit parallel output port with controllable tri-state outputs and a serial output port, enabling cascading of multiple chips for serial control to form an 8n-bit (where n is the number of chips) parallel output.
Applications
- LED digit driver
- Automation engineering control
Key features
- Low input current: ≤1μA
- Low power consumption
- Controllable tri-state output design
- Standard SPI interface CMOS serial output, supports daisy-chaining of multiple devices
- Package options: DIP-16, SOP-16, TSSOP-16
