74HCT125D,653
4.5V~5.5V 1 4 15ns@4.5V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive

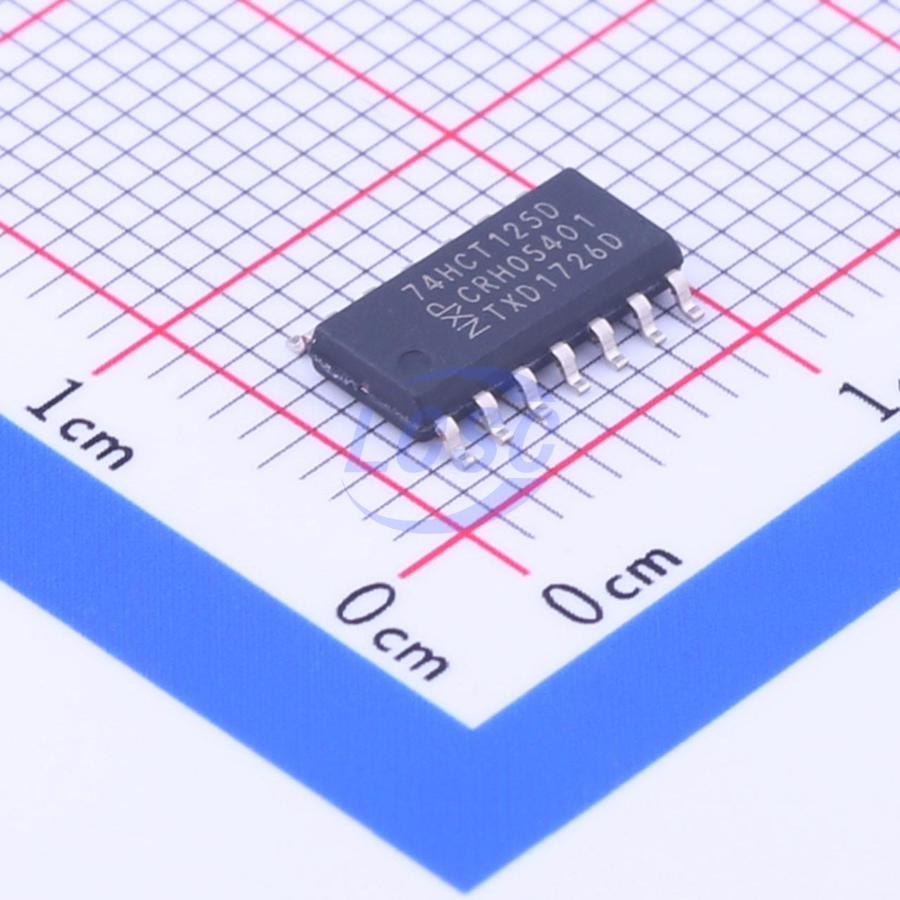

Quad buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT125D,653
- Store part #
- C5962
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86,265 in stock
#C5962
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.90 | ₹139.50 |
| 50+ | ₹21.75 | ₹1,087.50 |
| 150+ | ₹19.10 | ₹2,865.00 |
| 500+ | ₹15.81 | ₹7,905.00 |
| 2,500+ | ₹14.34 | ₹35,850.00 |
| 5,000+ | ₹13.45 | ₹67,250.00 |
5 × ₹27.90
₹139.50
excl. GST
₹164.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT125D,653
₹139.50 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 15ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The 74HC125; 74HCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Logic level translation
- Bus buffering
- Data transmission line driving
- Signal isolation
- Tri-state output control
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- The 74HC125: CMOS levels
- The 74HCT125: TTL levels
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
