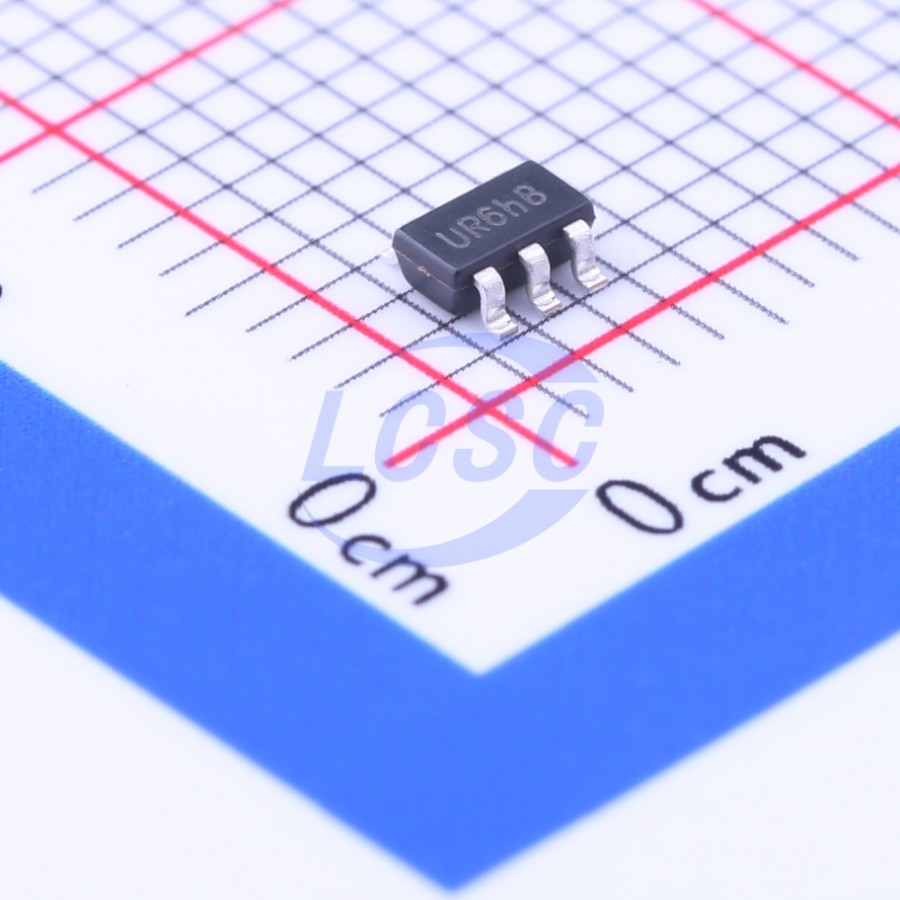

DIODES

74LVC1G17W5-7

Schmitt trigger 1.65V~5.5V 1 1 4.4ns@5V,15pF SOT-25-5 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-25-5ROHS CompliantActive

SINGLE SCHMITT-TRIGGER BUFFER

Manufacturer: DIODES
Manufacturer part #: 74LVC1G17W5-7
Store part #: C151394
Package / case: SOT-25-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,980 in stock

#C151394

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.02	₹65.10
50+	₹10.29	₹514.50
150+	₹8.94	₹1,341.00
500+	₹7.92	₹3,960.00
3,000+	₹7.09	₹21,270.00
6,000+	₹6.68	₹40,080.00

Quantity (min 5, multiples of 5)

5 × ₹13.02

₹65.10

excl. GST

₹76.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G17W5-7

₹65.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Power-off isolation
Current - Output High(IOH): 32mA
Input type: Schmitt trigger
Series: 74LVC
Voltage - Supply: 1.65V~5.5V
Current - Output Low(IOL): 32mA
Output Type: Push-pull
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Propagation Delay: 4.4ns@5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.061 g

Overview

The 74LVC1G17 is a single 1-input Schmitt-trigger buffer with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65V to 5.5V
±24mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22 Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
