NexperiaDatasheet (PDF)

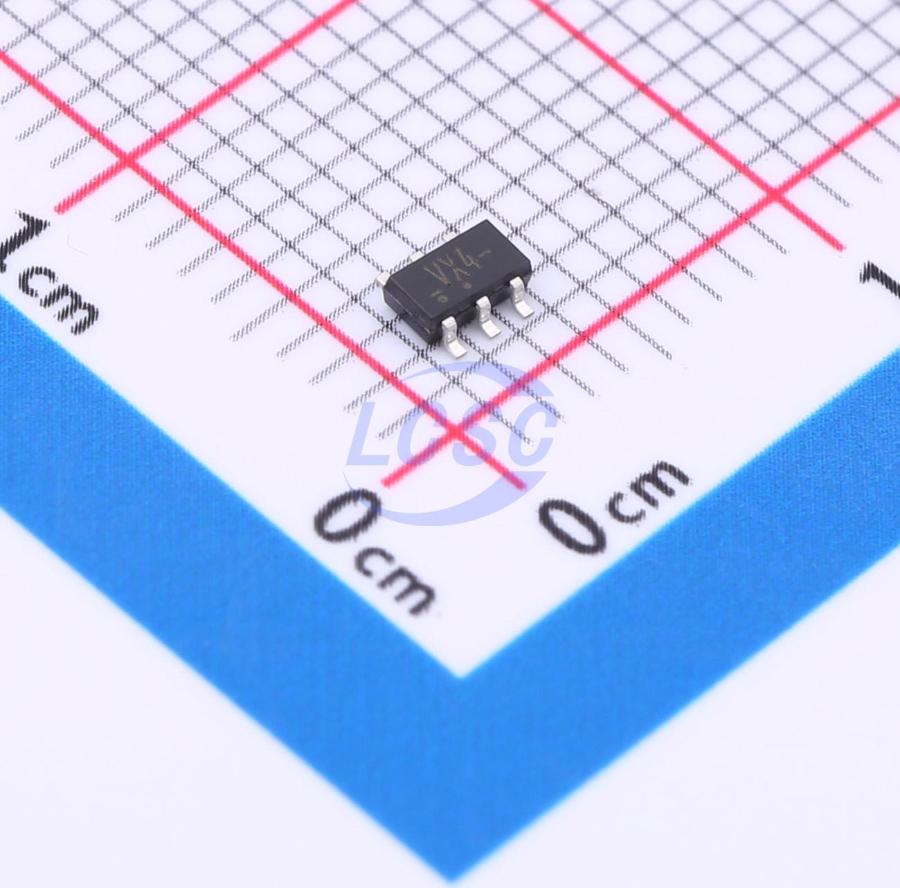

74LVC1GX04GV,125
SC-74 Specialty Logic RoHS
SC-74ROHS3 CompliantActive
X-tal driver
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1GX04GV,125
- Store part #
- C548474
- Package / case
- SC-74
- Category
- Specialty Logic
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,282 in stock
#C548474
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.35 | ₹56.35 |
| 10+ | ₹50.31 | ₹503.10 |
| 30+ | ₹47.50 | ₹1,425.00 |
| 100+ | ₹44.48 | ₹4,448.00 |
| 500+ | ₹42.75 | ₹21,375.00 |
| 1,000+ | ₹41.89 | ₹41,890.00 |
1 × ₹56.35
₹56.35
excl. GST
₹66.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1GX04GV,125
₹56.35 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 1.65V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
The 74LVC1GX04 is a crystal driver. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the Y output, preventing the potentially damaging backflow current through the device when it is powered down.
Applications
- Crystal controlled oscillator circuits in clock pulse generators
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low power dissipation
- Direct interface with TTL levels
- IOFF circuitry provides partial Power-down mode operation at output Y
- Latch-up performance exceeds 250 mA
- Complies with JEDEC standard:
- JESD8 - 7 (1.65 V to 1.95 V)
- JESD8 - 5 (2.3 V to 2.7 V)
- JESD8C (2.7 V to 3.6 V)
- JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
