UTCDatasheet (PDF)

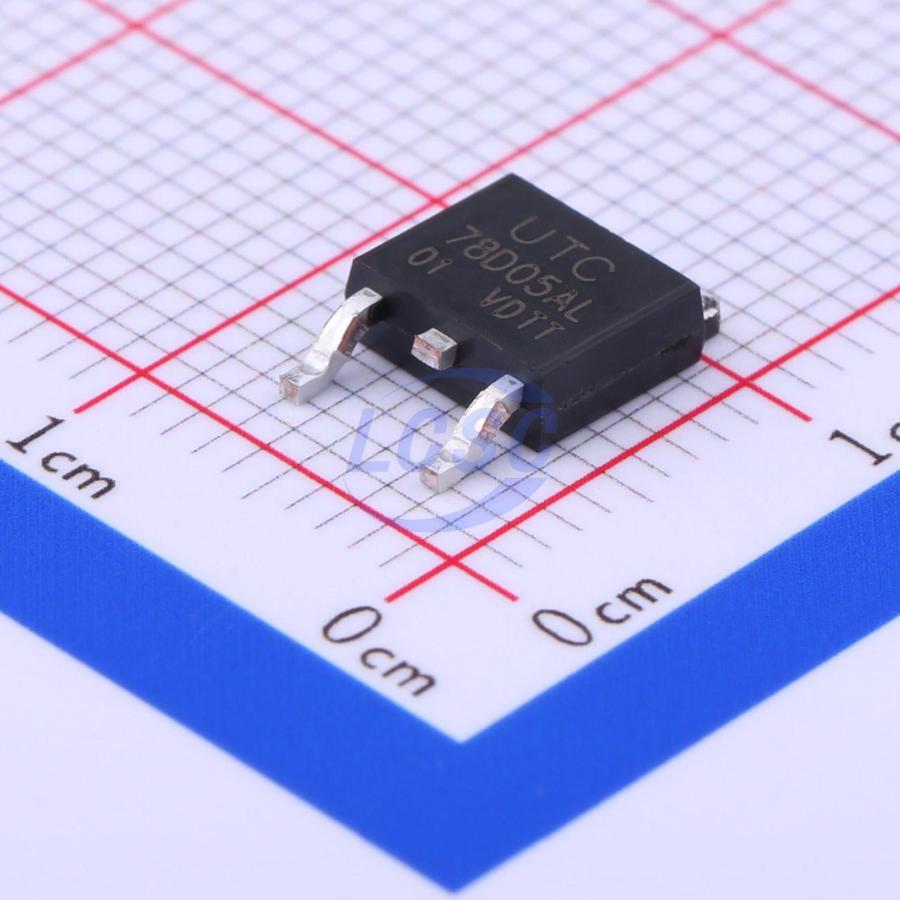

78D05AL-TN3-R
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS CompliantActive
3-Terminals 1A Positive Voltage Regulator
- Manufacturer
- UTC
- Manufacturer part #
- 78D05AL-TN3-R
- Store part #
- C75493
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
695 in stock
#C75493
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.63 | ₹108.15 |
| 50+ | ₹17.23 | ₹861.50 |
| 150+ | ₹15.33 | ₹2,299.50 |
| 500+ | ₹12.97 | ₹6,485.00 |
| 2,500+ | ₹10.54 | ₹26,350.00 |
| 5,000+ | ₹9.91 | ₹49,550.00 |
5 × ₹21.63
₹108.15
excl. GST
₹127.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78D05AL-TN3-R
₹108.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.504 g
Overview
The UTC 78DXXA family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.
Key features
- Peak output current up to 1A.
- Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V and 24V available.
- Thermal overload shutdown protection.
- Short circuit current limiting.
- Output transistor SOA protection.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78D05L#C347284UMW · TO-252-2 | UMW | TO-252-2 | 6,295 | ₹15.29 · 6,295 in stock | View |
 | 78M05#C347278UMW · TO-252 | UMW | TO-252 | 3,05,480 | ₹14.05 · 3,05,480 in stock | View |
 | L78M05AGT#C51898334GREENMICRO · TO-252-2 | GREENMICRO | TO-252-2 | 740 | ₹9.66 · 740 in stock | View |
 | L7805MDTR(XBLW)#C42376985XBLW · TO-252-2L | XBLW | TO-252-2L | 29,915 | ₹15.62 · 29,915 in stock | View |
 | 78M05B#C21714299Slkor · TO-252 | Slkor | TO-252 | 3,760 | ₹23.21 · 3,760 in stock | View |
