UTCDatasheet (PDF)

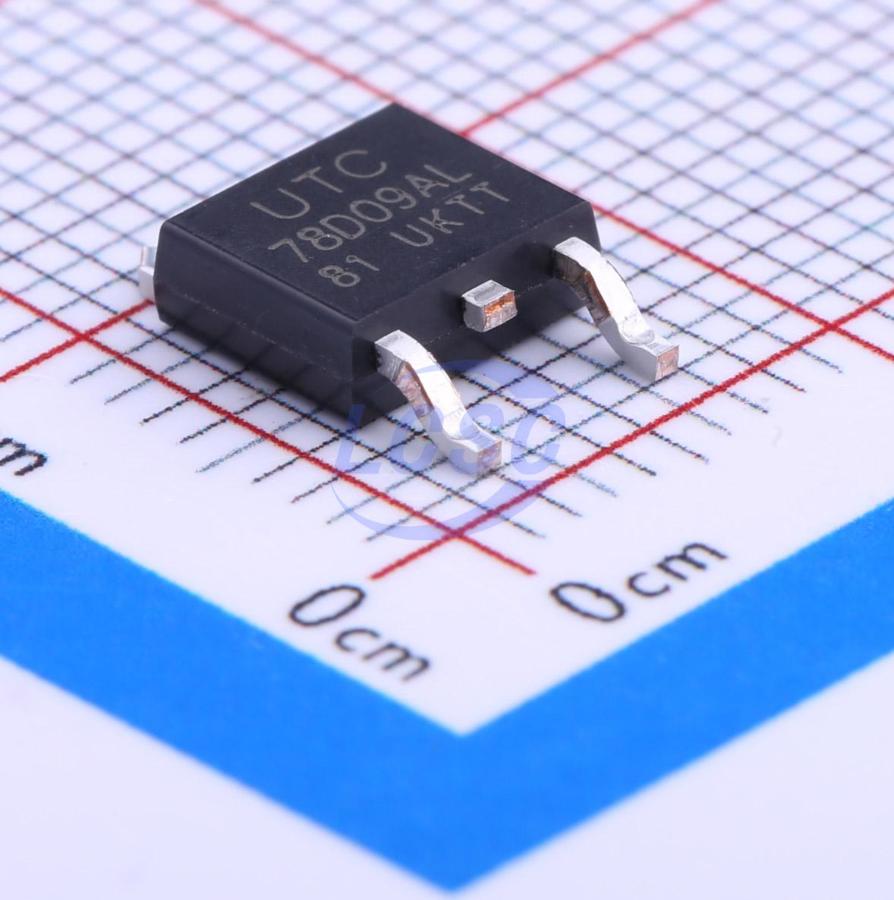

78D09AG-TN3-R
9V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS CompliantActive
3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR
- Manufacturer
- UTC
- Manufacturer part #
- 78D09AG-TN3-R
- Store part #
- C171522
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,595 in stock
#C171522
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.09 | ₹140.45 |
| 50+ | ₹22.20 | ₹1,110.00 |
| 150+ | ₹19.69 | ₹2,953.50 |
| 500+ | ₹16.54 | ₹8,270.00 |
| 2,500+ | ₹15.14 | ₹37,850.00 |
| 5,000+ | ₹14.29 | ₹71,450.00 |
5 × ₹28.09
₹140.45
excl. GST
₹165.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78D09AG-TN3-R
₹140.45 for 5 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.504 g
Overview
The UTC 78DXXA family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.
Key features
- Peak output current up to 1A.
- Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V and 24V available.
- Thermal overload shutdown protection.
- Short circuit current limiting.
- Output transistor SOA protection.
