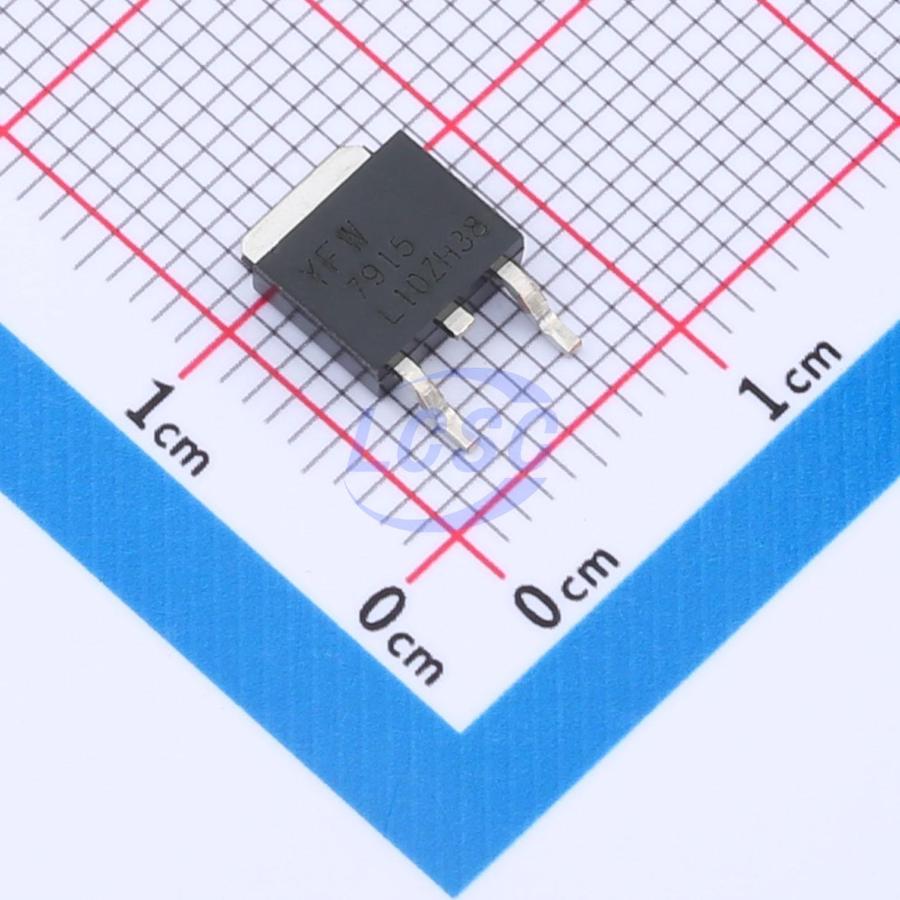

YFWDatasheet (PDF)
7915
15V Negative Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS CompliantActive
3-Terminal 1.5A Negative Voltage Regulator
- Manufacturer
- YFW
- Manufacturer part #
- 7915
- Store part #
- C20606623
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,435 in stock
#C20606623
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.01 | ₹200.05 |
| 50+ | ₹31.38 | ₹1,569.00 |
| 150+ | ₹27.69 | ₹4,153.50 |
| 500+ | ₹23.09 | ₹11,545.00 |
| 2,500+ | ₹21.75 | ₹54,375.00 |
| 5,000+ | ₹20.52 | ₹1,02,600.00 |
5 × ₹40.01
₹200.05
excl. GST
₹236.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
7915
₹200.05 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 150mA
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.446 g
Overview
The 7915 three-terminal negative regulators is available in TO-252 packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage as the 7815 positive, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current up to 1.5A
- Output Voltages of -15V
- Thermal Overload Protection
- Short Circuit Protection
- Output transition SOA protection
