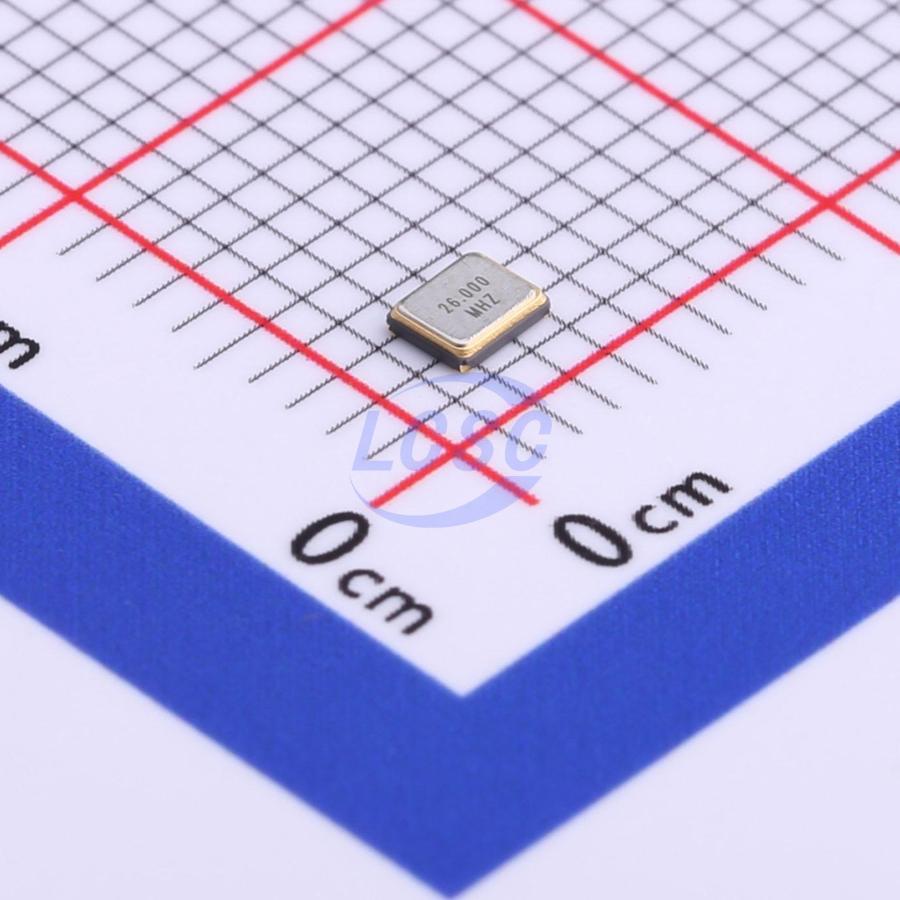

HD
7C026000HW1
Crystal 26MHz ±10ppm 9pF SMD2520-4P
SMD2520-4PROHS CompliantActive
CRYSTAL 26MHz 9pF SMD
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,100 in stock
#C655066
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.96 | ₹69.80 |
| 50+ | ₹11.25 | ₹562.50 |
| 150+ | ₹9.90 | ₹1,485.00 |
| 500+ | ₹8.88 | ₹4,440.00 |
| 3,000+ | ₹7.05 | ₹21,150.00 |
| 6,000+ | ₹6.64 | ₹39,840.00 |
5 × ₹13.96
₹69.80
excl. GST
₹82.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
7C026000HW1
₹69.80 for 5 + GST
Specifications
- Frequency Stability
- ±20ppm
- Load Capacitance
- 9pF
- Normal temperature Frequency Tolerance
- ±10ppm
- Frequency
- 26MHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- Frequency: 26.000MHz
- Load Capacitance (CL): 9pF
- Frequency Tolerance (Δf / f): ±10ppm
- Frequency Temperature Stability: ±20ppm
- Resonant Resistance: 50ohms Max
- Oscillation Mode: Fundamental Mode
- Shunt Capacitance (C0): 2pF Max
- Drive Level (DL): 100μW Max
- Operating Temperature Range (TOPR): -20 to +70°C
- Storage Temperature Range (TSTG): -55 to +125°C
- Insulation Resistance (IR): >500M ohms
- Aging (ΔfA): ±3ppm/Year Max
