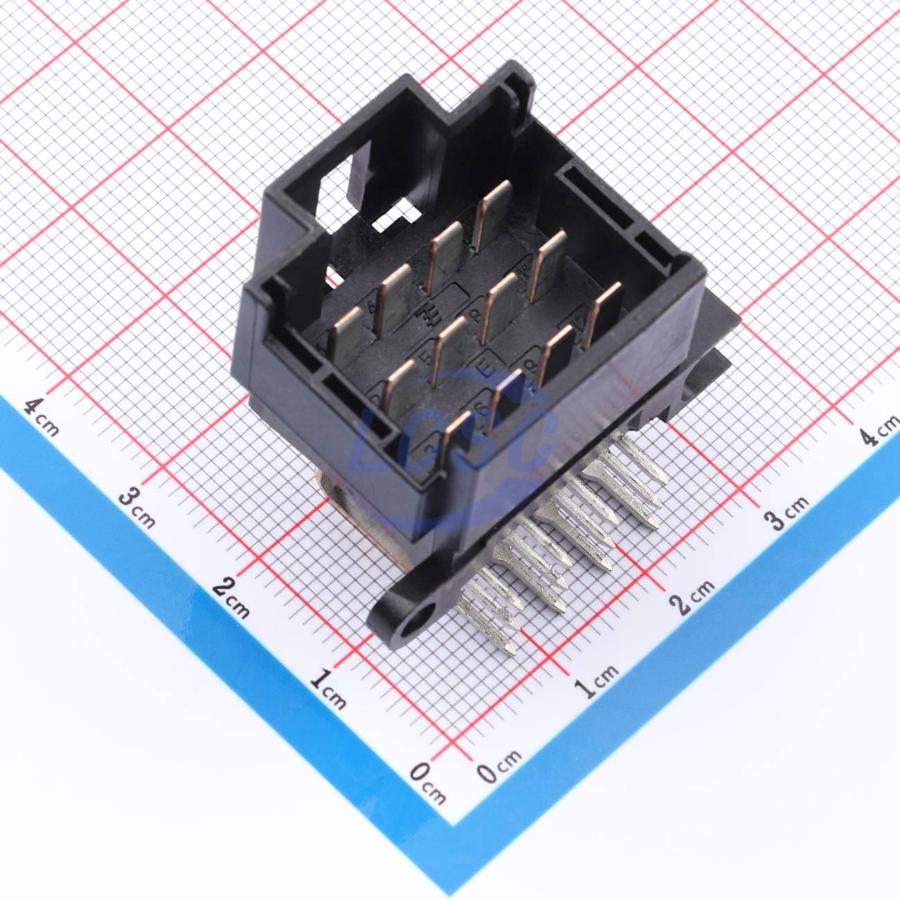

TE Connectivity

966140-3

Right Angle 24V 4 3 3.5mm 12P Tin -40℃~+100℃ Black 3x4P 5.51mm Through Hole,Right Angle Headers, Male Pins RoHS

Through Hole,Right AngleROHS3 CompliantActive

Manufacturer: TE Connectivity
Manufacturer part #: 966140-3
Store part #: C17407118
Package / case: Through Hole,Right Angle
Category: Headers, Male Pins
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C17407118

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹682.97	₹682.97
10+	₹668.01	₹6,680.10
30+	₹657.82	₹19,734.60
100+	₹647.85	₹64,785.00

Quantity (min 1)

1 × ₹682.97

₹682.97

excl. GST

₹805.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 210 per tray

966140-3

₹682.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type: Right Angle
Voltage Rating (Max): 24V
Contact Material: Copper alloy
Number of PINs Per Row: 4
Number of Rows: 3
Pitch: 3.5mm
Flame Retardant Rating: UL94HB
Number of PINs: 12P
Contact Plating: Tin
Operating Temperature: -40℃~+100℃
Color: Black
X-Length of Bottom Edge on Board (Spacing Line): 36mm
Pin Structure: 3x4P
Row Spacing: 5.51mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 210 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 13.1 g

Overview

Key features

PCB mount plug, horizontal orientation, wire-to-board, 12-position, 3.5mm (0.138 in) centerline spacing, fully shielded, tin plated, AMP MCP connector system
Product part numbers identified by TE Connectivity as compliant with the EU RoHS directive have maximum weight concentrations of lead, hexavalent chromium, mercury, polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP), bis(2-ethylhexyl) phthalate (DEHP), and diisobutyl phthalate (DIBP) of 0.1%, and cadmium of 0.01% in homogeneous materials, or comply with exemptions set out in the Annex of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked in accordance with Directive 2011/65/EU. Components may not be CE marked.
Product part numbers identified by TE Connectivity as compliant with the EU ELV directive have maximum weight concentrations of lead, hexavalent chromium, and mercury of 0.1%, and cadmium of 0.01% in homogeneous materials, or comply with exemptions set out in the Annex of Directive 2000/53/EC (ELV). Regarding the REACH regulation, TE Connectivity's SVHC information for articles supplied under this part number is based on the latest 'Guidance on requirements for substances in articles' published by ECHA at: https://echa.europa.eu/guidance-documents/guidance-onreach
PCB mount plug, horizontal orientation, wire-to-board, 12-position, 3.5mm (0.138 in) centerline spacing, fully shielded, tin plated, AMP MCP connector system
