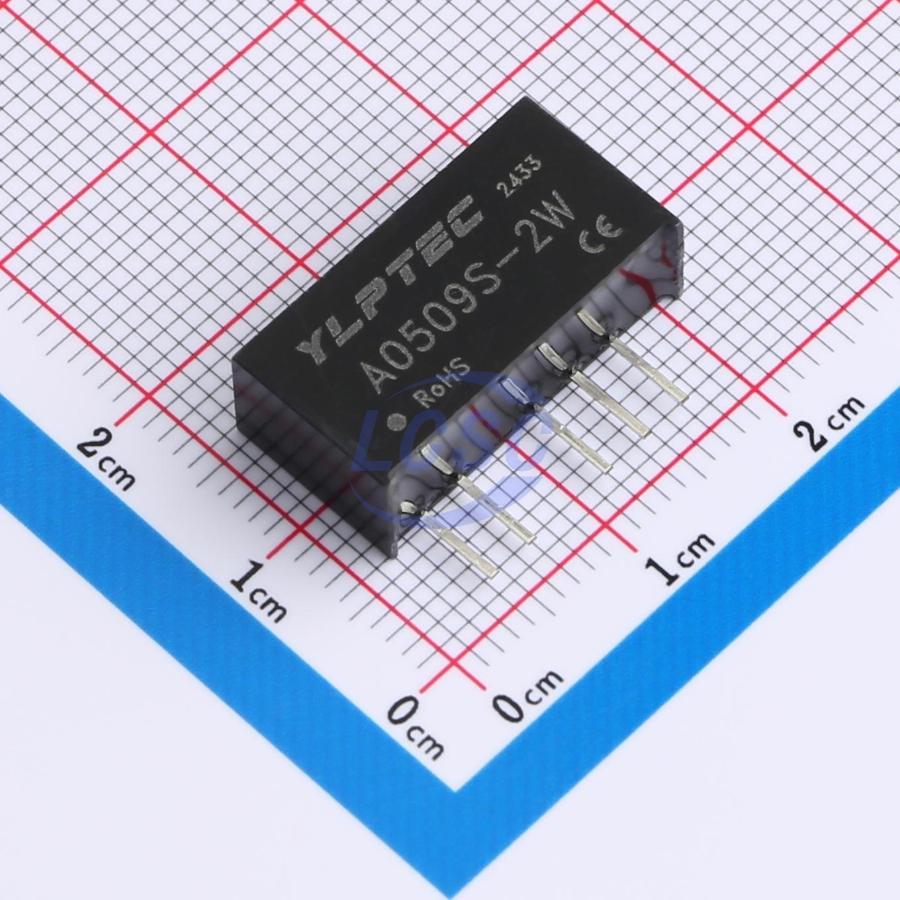

A0509S-2W
Isolated Module DC DC Converter Boost 2 Output ±9V ±112mA 4.5V~5.5V Input
SIP,19.5x7mmRoHSActive
2W isolated non-regulated dual-output DC/DC power module with fixed voltage input
- Manufacturer
- YLPTEC
- Manufacturer part #
- A0509S-2W
- Store part #
- C22751235
- Package / case
- SIP,19.5x7mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C22751235
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹307.61 | ₹307.61 |
| 10+ | ₹260.30 | ₹2,603.00 |
| 25+ | ₹230.65 | ₹5,766.25 |
| 100+ | ₹200.36 | ₹20,036.00 |
| 500+ | ₹186.62 | ₹93,310.00 |
| 1,000+ | ₹180.74 | ₹1,80,740.00 |
1 × ₹307.61
₹307.61
excl. GST
₹362.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
A0509S-2W
₹307.61 for 1 + GST
Specifications
- Output Voltage
- ±9V
- Ripple Noise
- 60mVp-p
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Capacitive Load(Max)
- 100uF
- Number of Outputs
- 2
- Iout
- 112mA
- Height
- 7mm
- Frequency - Switching
- 300kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Features
- Short Circuit Protection
- Conversion Efficiency
- 86%
- Output Power
- 2W
- Length
- 19.5mm
- Width
- 10mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.5 g
Overview
Applications
- Applications requiring two isolated output rails from input power in distributed power systems
- Applications where input supply voltage variation is within ±10%
- Applications requiring input-to-output isolation (isolation voltage 1500VDC)
- Applications where output voltage stability and output ripple noise requirements are not stringent
Key features
- 7-pin SIP international standard pinout
- Low quiescent current and high conversion efficiency
- Low ripple and low noise
- Built-in soft-start technology
- Isolation voltage 1500VDC
- Operating temperature range: -40°C to +85°C
