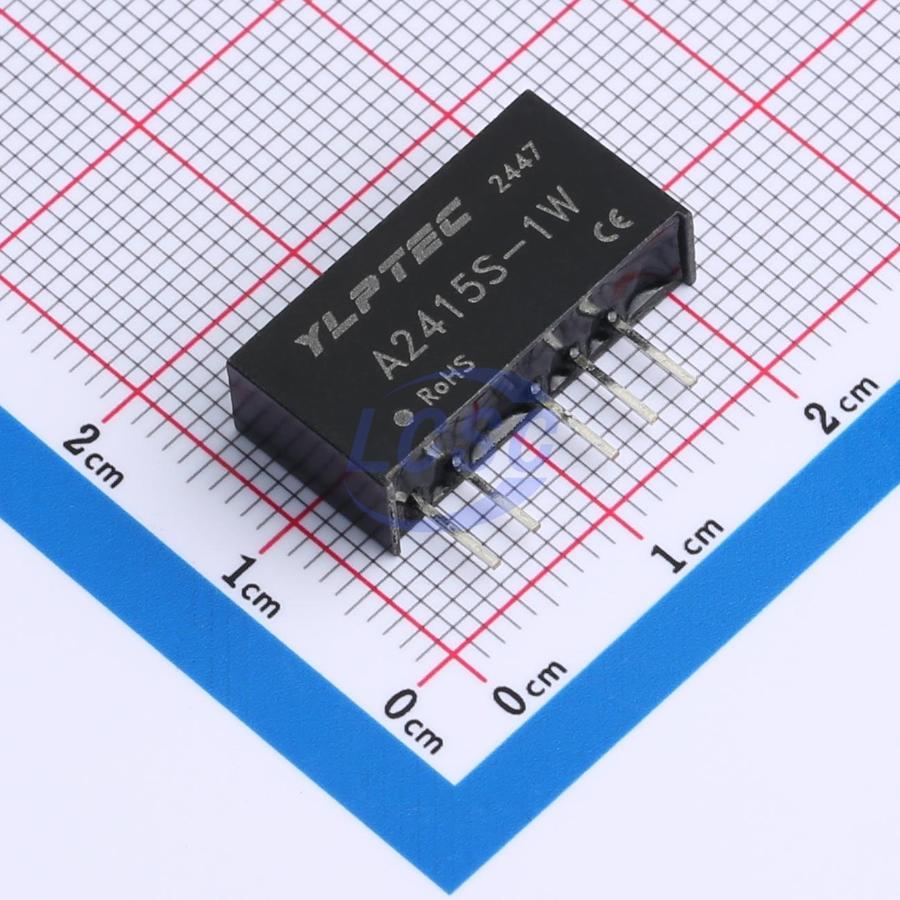

A2415S-1W YLPTEC

A2415S-1W

Isolated Module DC DC Converter 2 Output ±15V 4mA 21.6V~26.4V Input

SIP,19.5x6mmROHS CompliantActive

1W Isolated Non-Regulated Dual-Output DC/DC Power Module with Fixed Voltage Input

Manufacturer: YLPTEC
Manufacturer part #: A2415S-1W
Store part #: C22749799
Package / case: SIP,19.5x6mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

24 in stock

#C22749799

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹247.86	₹247.86
10+	₹211.73	₹2,117.30
25+	₹189.27	₹4,731.75
100+	₹166.16	₹16,616.00
500+	₹155.65	₹77,825.00
1,000+	₹151.03	₹1,51,030.00

Quantity (min 1)

1 × ₹247.86

₹247.86

excl. GST

₹292.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

A2415S-1W

₹247.86 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: ±15V
Ripple Noise: 60mVp-p
Operating Temperature: -40℃~+85℃
Voltage - Supply: 21.6V~26.4V
Capacitive Load(Max): 100uF
Number of Outputs: 2
Iout: 4mA
Height: 6mm
Frequency - Switching: 300kHz
Isolation Voltage(Vrms): 1.5kV
Output Power: 1W
Features: Short Circuit Protection
Conversion Efficiency: 80%
Length: 19.5mm
Width: 10mm

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 3.047 g

Overview

Applications

Applications requiring two isolated output rails from input power in distributed power systems
Applications where input supply voltage variation is within ±10%
Applications requiring input-to-output isolation (isolation voltage 1500VDC)
Applications where output voltage stability and output ripple noise requirements are not stringent

Key features

Low quiescent current and high conversion efficiency
Low ripple and low noise
Built-in soft-start technology
Isolation voltage 1500VDC
Operating temperature range: -40°C~+85°C
