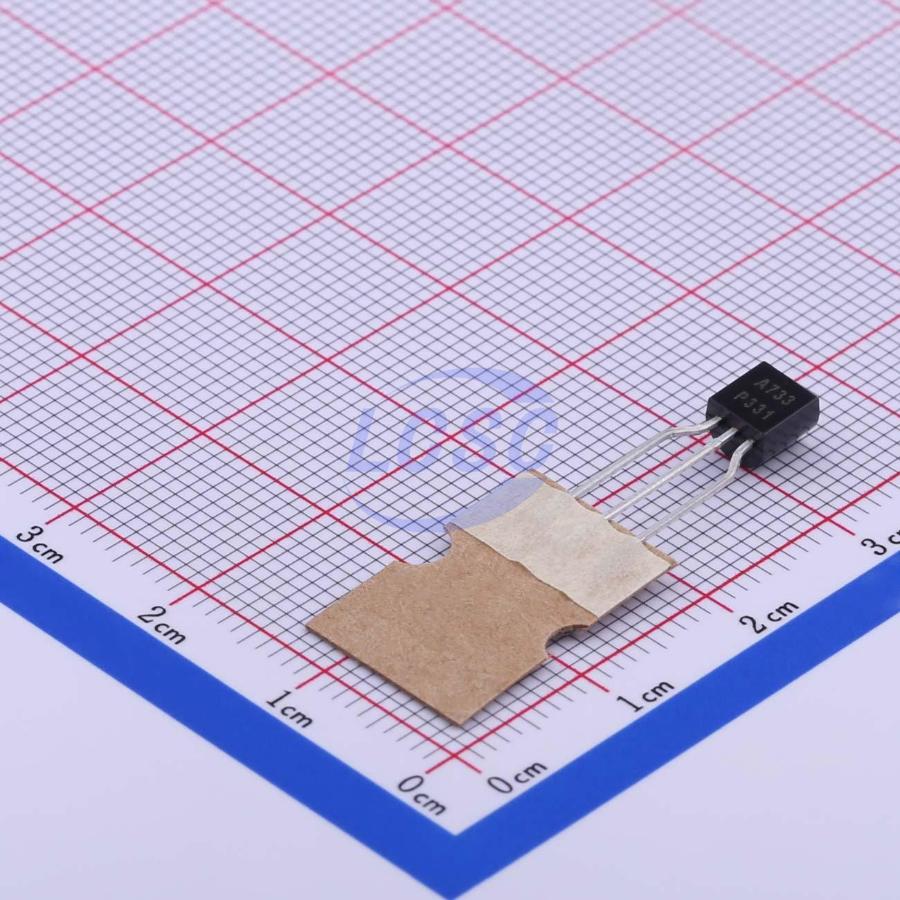

A733-TA(RANGE:200-400)
Bipolar (BJT) Transistor PNP 50V 100mA 100MHz 250mW Through Hole TO-92
TO-92ROHS CompliantActive
TRANS PNP 50V 100mA TO-92
- Manufacturer
- JSCJ
- Manufacturer part #
- A733-TA(RANGE:200-400)
- Store part #
- C2090
- Package / case
- TO-92
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C2090
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.37 | ₹53.70 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.78 | ₹1,134.00 |
| 2,000+ | ₹3.39 | ₹6,780.00 |
| 4,000+ | ₹3.06 | ₹12,240.00 |
| 10,000+ | ₹2.90 | ₹29,000.00 |
10 × ₹5.37
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per box
A733-TA(RANGE:200-400)
₹53.70 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 50V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 200
- Pd - Power Dissipation
- 250mW
- Current - Collector(Ic)
- 100mA
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 300mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.25 g
Overview
Key features
- Power dissipation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | A733(RANGE:200-400)#C154967JSCJ · TO-92 | JSCJ | TO-92 | 320 | ₹3.41 · 320 in stock | View |
 | 2SA1015(RANGE:200-400)#C168617JSCJ · TO-92 | JSCJ | TO-92 | 3,860 | ₹3.86 · 3,860 in stock | View |
 | 2N6520#C47089367JSCJ · TO-92 | JSCJ | TO-92 | 11,550 | ₹6.40 · 11,550 in stock | View |
 | BC556-TA(RANGE:180-460)#C2910409JSCJ · TO-92 | JSCJ | TO-92 | 1,060 | ₹4.75 · 1,060 in stock | View |
 | BC556(RANGE:180-460)#C33473JSCJ · TO-92 | JSCJ | TO-92 | 1,000 | ₹4.58 · 1,000 in stock | View |
