ADIDatasheet (PDF)

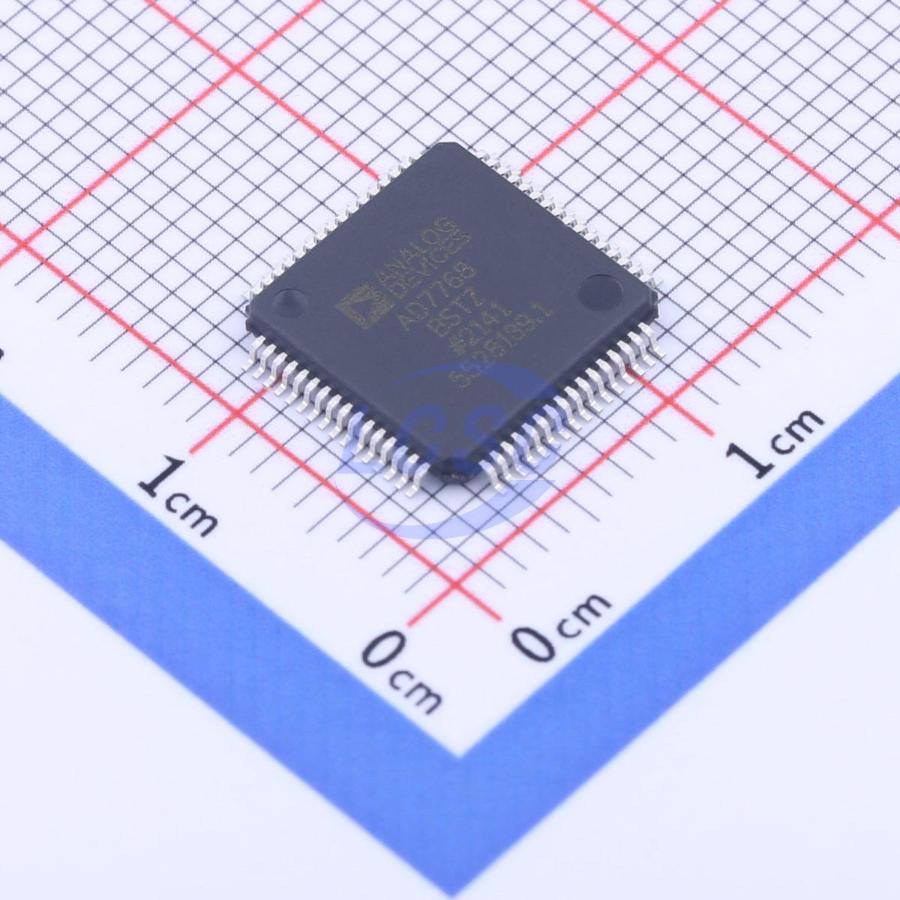

AD7768BSTZ-RL
24 Bit Analog to Digital Converter 8 Input Sigma-Delta LQFP-64(10x10)
LQFP-64(10x10)ROHS3 CompliantActive
8-/4-Channel, 24-Bit, Simultaneous Sampling ADCs with Power Scaling, 110.8 kHz BW
- Manufacturer
- ADI
- Manufacturer part #
- AD7768BSTZ-RL
- Store part #
- C651533
- Package / case
- LQFP-64(10x10)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,668 in stock
#C651533
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹4,651.97 | ₹4,651.97 |
| 30+ | ₹4,415.74 | ₹1,32,472.20 |
1 × ₹4,651.97
₹4,651.97
excl. GST
₹5,489.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
AD7768BSTZ-RL
₹4,651.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Interface
- SPI
- Voltage - Supply
- 5V;2.25V~5V
- Number of Channels
- 8
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 32.768MHz
- Features
- Simultaneous sampling;Integrated modulator;Built-in digital filter;Input buffer
- Resolution(Bits)
- 24;256kHz
- S/N Ratio
- 107.8dB
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Applications
- Data acquisition systems: USB/PXI/Ethernet
- Instrumentation and industrial control loops
- Audio testing and measurement
- Vibration and asset condition monitoring
- 3- phase power quality analysis
- Sonar
- High precision medical electroencephalogram (EEG)/electromyography (EMG)/electrocardiogram (ECG)
Key features
- Precision ac and dc performance
- 8- /4- channel simultaneous sampling
- 256 kSPS maximum ADC ODR per channel
- 108 dB dynamic range
- 110.8 kHz maximum input bandwidth (- 3 dB BW)
- - 120 dB THD, typical
- ± 2 ppm of full- scale range (FSR) integral nonlinearity(INL)
- ± 50μV offset error
- ± 30 ppm gain error
- Optimized power dissipation vs. noise vs. input bandwidth
- Selectable power, speed, and input bandwidth
- Fast (highest speed): 110.8 kHz BW, 51.5 mW per channel
- Median (half speed): 55.4 kHz BW, 27.5 mW per channel
- Low power (lowest power): 13.8 kHz BW, 9.375 mW per channel
- Input BW range: dc to 110.8 kHz
- Programmable input bandwidth/sampling rates
- CRC error checking on data interface
- Daisy- chaining
- Linear phase digital filter
- Low latency sinc5 filter
- Wideband brick wall filter: ± 0.005 dB ripple to 102.4 kHz
- Analog input precharge buffers
- Power supply
- AVDD1 = 5.0 V, AVDD2 = 2.25 V to 5.0 V
- IOVDD = 2.5 V to 3.3 V or IOVDD = 1.8 V
- 64- lead LQFP package, no exposed pad
- Temperature range: - 40℃ to +105℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD7768BSTZ#C461538ADI · LQFP-64(10x10) | ADI | LQFP-64(10x10) | 18 | ₹6,502.27 · 18 in stock | View |
 | HCT6678#C46469634HCTmicro · LQFP-64(10x10) | HCTmicro | LQFP-64(10x10) | 1 | ₹3,488.49 · 1 in stock | View |
 | AD7768BSTZ-RL7#C2928894ADI · LQFP-64(10x10) | ADI | LQFP-64(10x10) | On request | ₹4,354.97 · 0 in stock | View |
