lingxingicDatasheet (PDF)

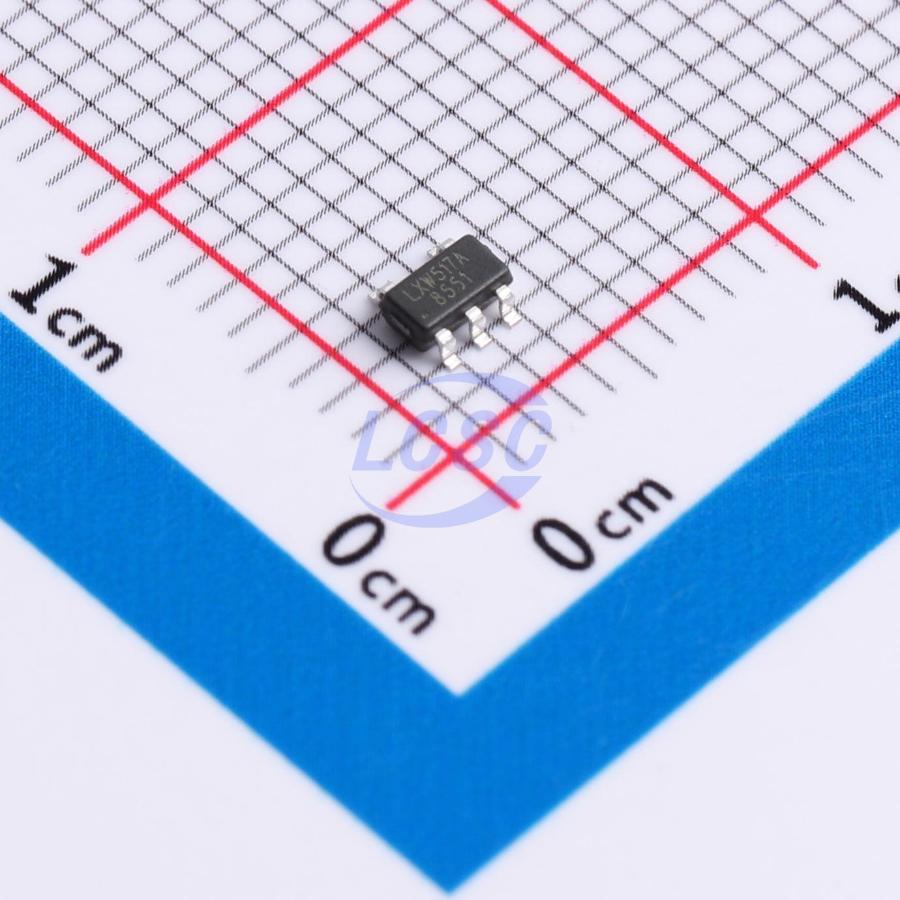

AD8551(LX)
50mA 1uV 2.3V/us 400pA 120dB 3.5MHz 450uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- AD8551(LX)
- Store part #
- C52097907
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C52097907
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.37 | ₹161.85 |
| 50+ | ₹28.40 | ₹1,420.00 |
| 150+ | ₹26.70 | ₹4,005.00 |
| 500+ | ₹24.58 | ₹12,290.00 |
| 3,000+ | ₹23.63 | ₹70,890.00 |
| 6,000+ | ₹23.06 | ₹1,38,360.00 |
5 × ₹32.37
₹161.85
excl. GST
₹190.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD8551(LX)
₹161.85 for 5 + GST
Specifications
- Output Current
- 50mA
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 2.3V/us
- Input Offset Current(Ios)
- 200pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 400pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 8nV/℃
- Gain Bandwidth Product
- 3.5MHz
- Quiescent Current
- 450uA
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The AD855X series are rail-to-rail input/output operational amplifiers employing chopper-stabilized technology, featuring ultra-low offset voltage, zero drift, and low noise characteristics. These devices operate from a 2.4V to 5.5V single supply or ±1.2V to ±2.5V dual supply. The AD8553 and AD8559 integrate an enable pin to support a low-power standby mode. Key specifications include a 3.5MHz gain-bandwidth product, 120dB open-loop large-signal gain, and excellent power supply rejection ratio and common-mode rejection ratio. The series is available in multiple package options, including SOT23-5, SOT23-6, SOP8, MSOP8, TSSOP8, DFN8, MSOP10, SOP14, and TSSOP14.
Applications
- Pressure and position sensors
- Strain gauge amplifiers
- Medical instrumentation
- Thermocouple amplifiers
- Precision current sensing
Key features
- Supply voltage range: 2.4V ~ 5.5V
- Low offset voltage: 5μV max
- Input offset voltage drift: 0.05μV/℃ max
- Gain bandwidth product: 3.5MHz
- Open-loop large-signal gain: 120dB
- Quiescent current: 450μA typical per channel
- Power supply rejection ratio: 130dB typical
- Common-mode rejection ratio: 120dB typical
- Multiple package options available
