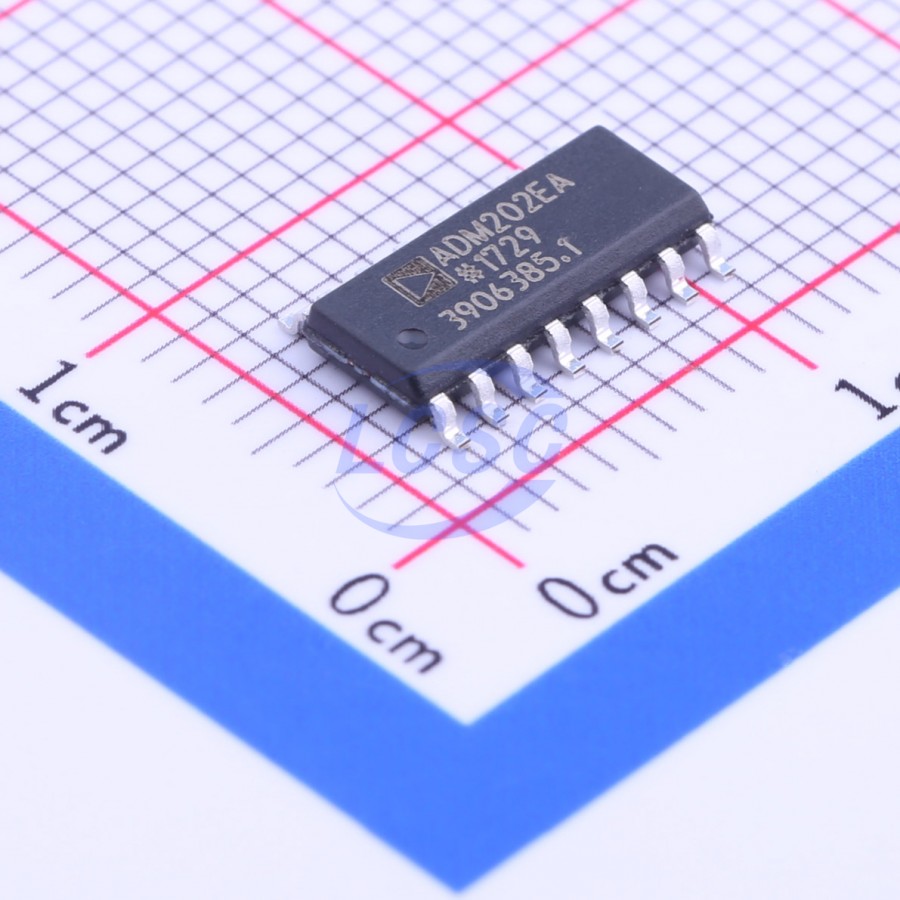

ADM202EARNZ-REEL7
5V Transceiver 230Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
EMI/EMC-Compliant, ±15 kV, ESD-Protected RS-232 Line Drivers/Receivers
- Manufacturer
- ADI
- Manufacturer part #
- ADM202EARNZ-REEL7
- Store part #
- C141949
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,833 in stock
#C141949
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹190.68 | ₹190.68 |
| 10+ | ₹158.95 | ₹1,589.50 |
| 30+ | ₹141.55 | ₹4,246.50 |
| 100+ | ₹121.77 | ₹12,177.00 |
| 500+ | ₹105.24 | ₹52,620.00 |
| 1,000+ | ₹101.10 | ₹1,01,100.00 |
1 × ₹190.68
₹190.68
excl. GST
₹225.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ADM202EARNZ-REEL7
₹190.68 for 1 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 230Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.299 g
Overview
The ADM202E and ADM1181A are rugged, high-speed dual-channel RS-232/V.28 interface devices powered from a single 5V supply. Both products are suited for harsh electrical environments and comply with the European Union EMC directive (89/336/EEC). Electromagnetic emissions and immunity both meet the required standards. EMI immunity includes ESD protection exceeding ±15 kV on all I/O lines, fast transient/burst protection (1000-4-4), and radiated immunity (1000-4-3). EMI emissions cover radiated and conducted emissions as required by EN55022 and CISPR22 for information technology equipment. The ADM202E and ADM1181A comply with EIA-232E and CCITT V.28 specifications, supporting data rates up to 230 kbps. The voltage multiplier/inverter uses four external 0.1 μF charge pump capacitors, enabling operation from a single 5V supply. The ADM202E offers a rugged, pin-compatible upgrade for existing ADM202, ADM232L, or MAX202E/MAX232E sockets. It is available in 16-pin PDIP, wide SOIC, narrow SOIC, and TSSOP packages — 44% smaller than SOIC. The ADM1181A offers a rugged, pin-compatible upgrade for the LTC1181A, available in a 16-pin PDIP package and a wide 16-pin SOIC package.
Applications
- General-purpose RS-232 data links
- Portable instruments
- PDA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232EESE+T#C113731MAXIM · SOIC-16 | MAXIM | SOIC-16 | 751 | ₹502.14 · 751 in stock | View |
 | GM232ESA#C18199342GATEMODE · SOP-16 | GATEMODE | SOP-16 | 7,575 | ₹24.86 · 7,575 in stock | View |
 | HG202EIM/TR#C46552324HGSEMI · SOP-16 | HGSEMI | SOP-16 | 2,480 | ₹28.25 · 2,480 in stock | View |
 | MAX232ECDR#C138709TI · SOIC-16 | TI | SOIC-16 | 857 | ₹143.28 · 857 in stock | View |
| LT1381IS#PBF#C663669ADI · SO-16 | ADI | SO-16 | 19 | ₹1,171.82 · 19 in stock | View | |
