ADI

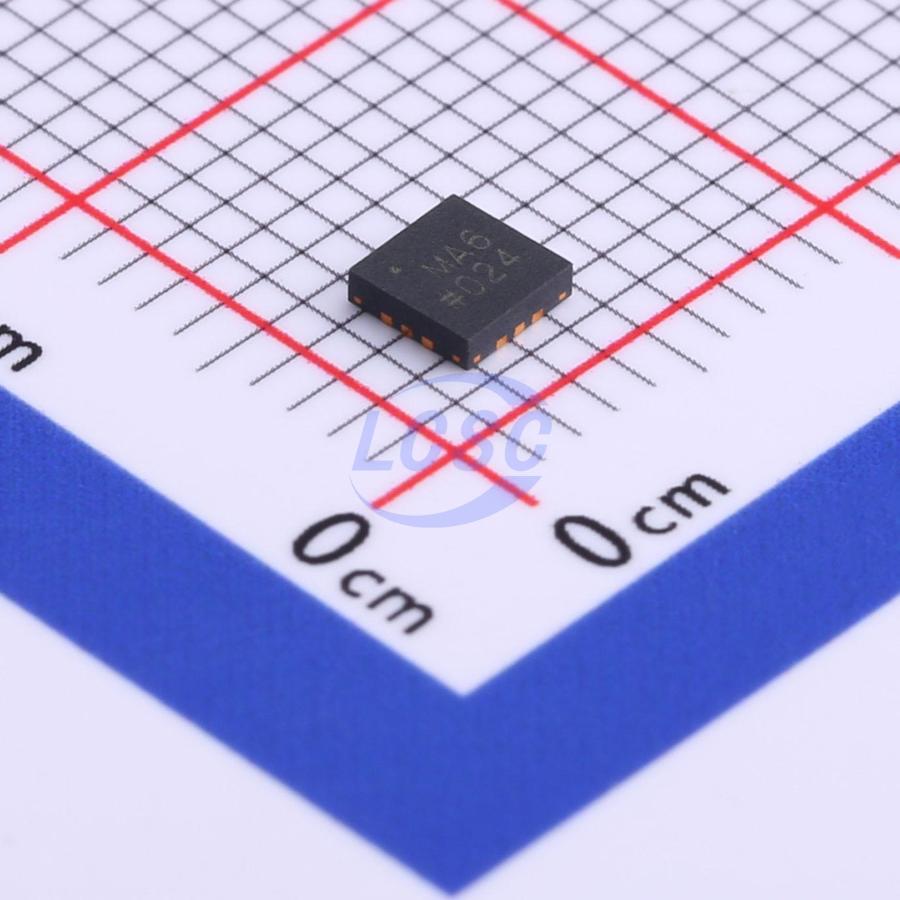

ADM3101EACPZ-REEL

Transceiver 3V~5.5V 460Kbps LFCSP-12(3x3) Drivers, Receivers, Transceivers RoHS

LFCSP-12(3x3)ROHS3 CompliantActive

±15 kV ESD Protected, 3.3 V Single-Channel RS-232 Line Driver/Receiver

Manufacturer: ADI
Manufacturer part #: ADM3101EACPZ-REEL
Store part #: C514336
Package / case: LFCSP-12(3x3)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,440 in stock

#C514336

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹236.02	₹236.02
10+	₹201.86	₹2,018.60
30+	₹180.34	₹5,410.20
100+	₹158.59	₹15,859.00
500+	₹139.22	₹69,610.00
1,000+	₹134.87	₹1,34,870.00

Quantity (min 1)

1 × ₹236.02

₹236.02

excl. GST

₹278.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

ADM3101EACPZ-REEL

₹236.02 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 460Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 1
Number of Receivers: 1
Quiescent Supply Current: 1.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.112 g

Overview

The ADM3101E is a high speed, single-channel, RS-232/ ITU-T V.28 transceiver interface device that operates from a single 3.3 V power supply. Low power consumption makes it ideal for battery-powered portable instruments. The ADM3101E conforms to the EIA/TIA-232E and ITU-T V.28 specifications and operates at data rates of up to 460 kbps. All RS-232 (TOUT and RIN) and CMOS (TIN and ROUT) inputs and outputs are protected against electrostatic discharges (up to ±15 kV ESD protection). Because of the ±15 kV ESD protection of the ADM3101E input/output pins, this device is ideally suited for operation in electrically harsh environments or where RS-232 cables are frequently plugged and unplugged. Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single 3.3 V supply. The ADM3101E is available in both a 12-lead LFCSP and 16-lead QSOP, specified over the -40°C to +85°C temperature range.
