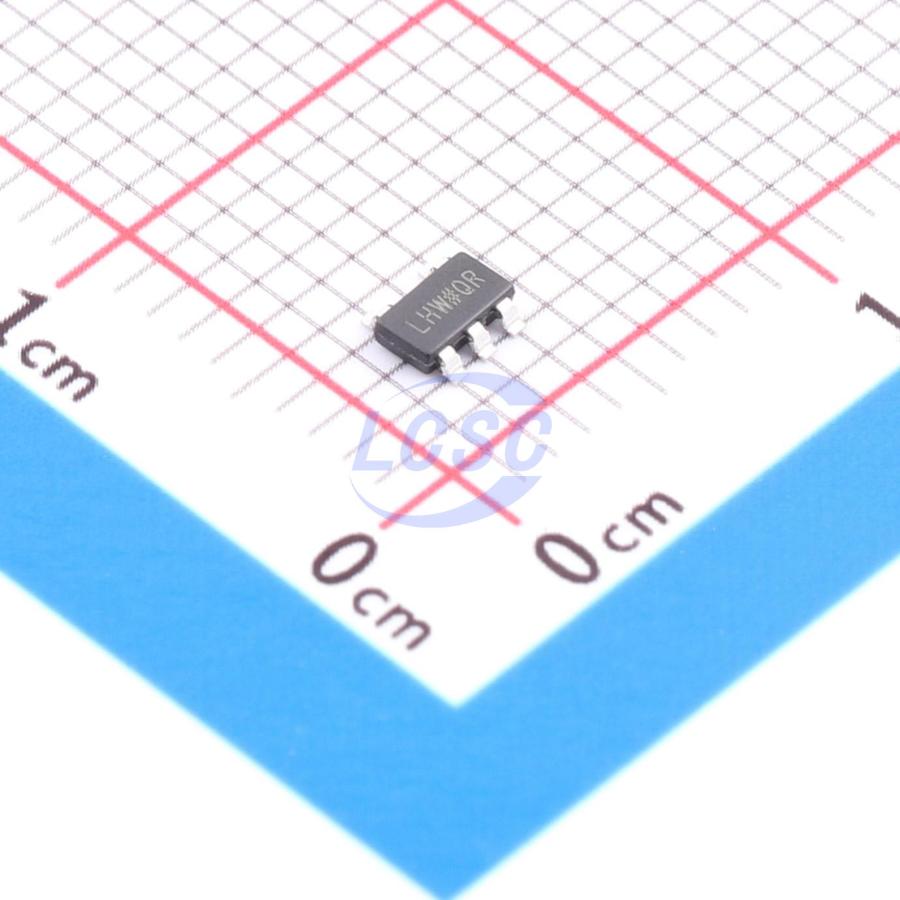

ADP161AUJZ-R7

The ADP160/ADP161/ADP162/ADP163 are ultralow quiescent current, low dropout linear regulators operating from 2.2 V to 5.5 V with output currents up to 150 mA. The 195 mV dropout voltage at 150 mA load improves efficiency and allows the devices to operate over a wide input voltage range. The ADP16x devices are specifically designed to operate with small 1 μF ±30% ceramic input and output capacitors, making them suitable for high performance, space-constrained applications. The ADP160 offers 15 fixed output voltage options ranging from 1.2 V to 4.2 V. The ADP160/ADP161 include a switch resistor that automatically discharges the output when the LDO is disabled. The ADP162 is identical to the ADP160 except it does not include the output discharge function. The ADP161 and ADP163 are adjustable output voltage regulators available only in a 5-lead TSOT package. The ADP163 is identical to the ADP161 except it does not include the output discharge function. Short-circuit and thermal overload protection circuits prevent device damage under adverse conditions. The ADP160 and ADP162 are available in compact 5-lead TSOT and 4-ball, 0.5 mm pitch WLCSP packages, offering the smallest footprint solution for a variety of portable power applications.

Applications

• Mobile phones
• Digital cameras and audio devices
• Portable and battery-powered devices
• Post DC-DC regulation
• Portable medical devices

Key features

• Ultra-low quiescent current: IQ = 560 nA (0 μA load), IQ = 860 nA (1 μA load)
• Stable operation with 1 μF ceramic input and output capacitors
• Maximum output current: 150 mA
• Input voltage range: 2.2 V to 5.5 V
• Low shutdown current: < 50 nA (typical)
• Low dropout: 195 mV at 150 mA load current
• Initial accuracy: ±1%
• Accuracy over full line, load, and temperature range: ±3.5%
• 15 fixed output voltage options: 1.2 V to 4.2 V
• Adjustable output voltage available
• PSRR: 72 dB (100 Hz)
• Current limiting and thermal overload protection
• Logic-controlled enable
• Integrated output discharge resistor
• 5-pin TSOT package
• 4-pin, 0.5 mm pitch WLCSP package
