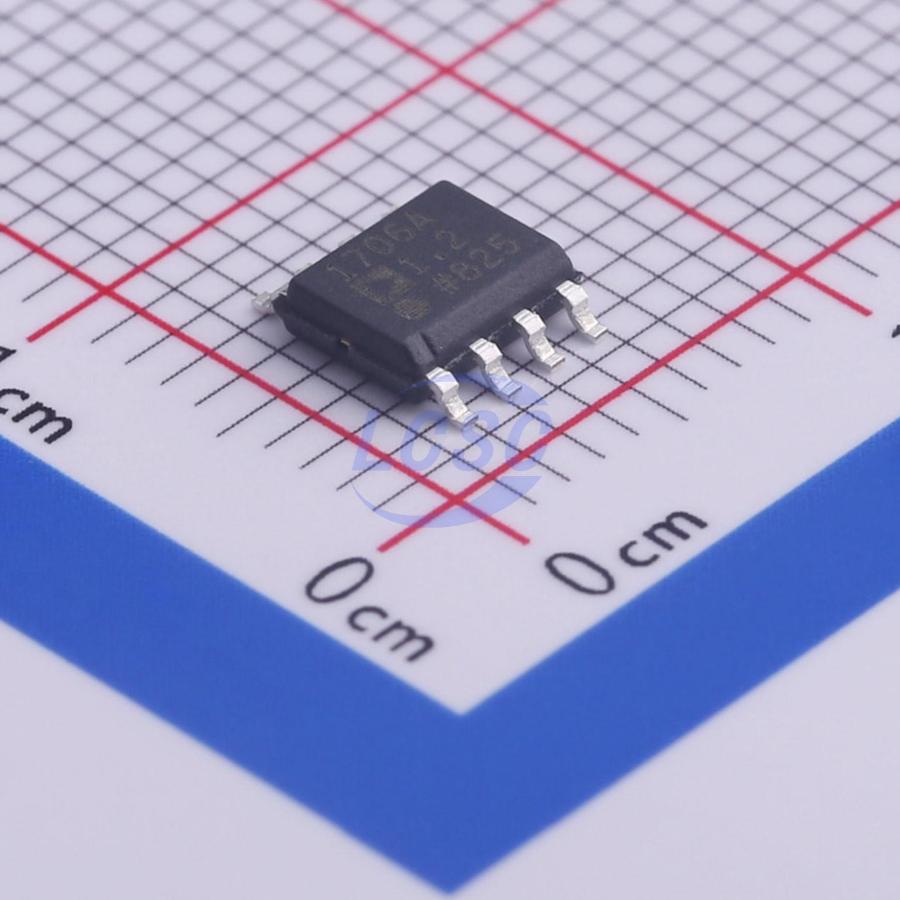

ADP1706ARDZ-1.2-R7

The ADP1706/ADP1707/ADP1708 are CMOS, low dropout linear regulators that operate from 2.5 V to 5.5 V and provide up to 1 A of output current. Using an advanced proprietary architecture, they provide high power supply rejection and achieve excellent line and load transient response with a small 4.7 μF ceramic output capacitor. The ADP1706/ADP1707 are available in 16 fixed output voltage options. The ADP1708 is available in an adjustable version, which allows output voltages that range from 0.8 V to 5.0 V via an external divider. The ADP1706 allows an external soft start capacitor to be connected to program the start-up time; the ADP1707 and ADP1708 contain internal soft start capacitors that give a typical start-up time of 100 μs. The ADP1707 includes a tracking feature that allows the output to follow an external voltage rail or reference. The ADP1706/ADP1707/ADP1708 are available in an 8-lead, exposed paddle SOIC package and an 8-lead, 3 mm×3 mm exposed paddle LFCSP, making them not only very compact solutions but also providing excellent thermal performance for applications requiring up to 1 A of output current in a small, low profile footprint.

Applications

• Notebook computers
• Memory components
• Telecommunications equipment
• Network equipment
• DSP/FPGA/microprocessor supplies
• Instrumentation equipment/data acquisition systems

Key features

• Maximum output current: 1 A
• Input voltage range: 2.5 V to 5.5 V
• Low shutdown current: <1 μA
• Low dropout voltage: 345 mV at 1 A load
• Initial accuracy: ±1%
• Accuracy over line, load, and temperature: ±2.5%
• 16 fixed output voltage options with soft start 0.75 V to 3.3 V (ADP1706)
• 16 fixed output voltage options with tracking 0.75 V to 3.3 V (ADP1707)
• Adjustable output voltage option 0.8 V to 5.0 V (ADP1708)
• Stable with small 4.7 μF ceramic output capacitor
• Excellent load/line transient response
• Current limit and thermal overload protection
• Logic-controlled enable
• Available in an 8-lead, exposed paddle SOIC and a 3 mm×3 mm, 8-lead exposed paddle LFCSP
