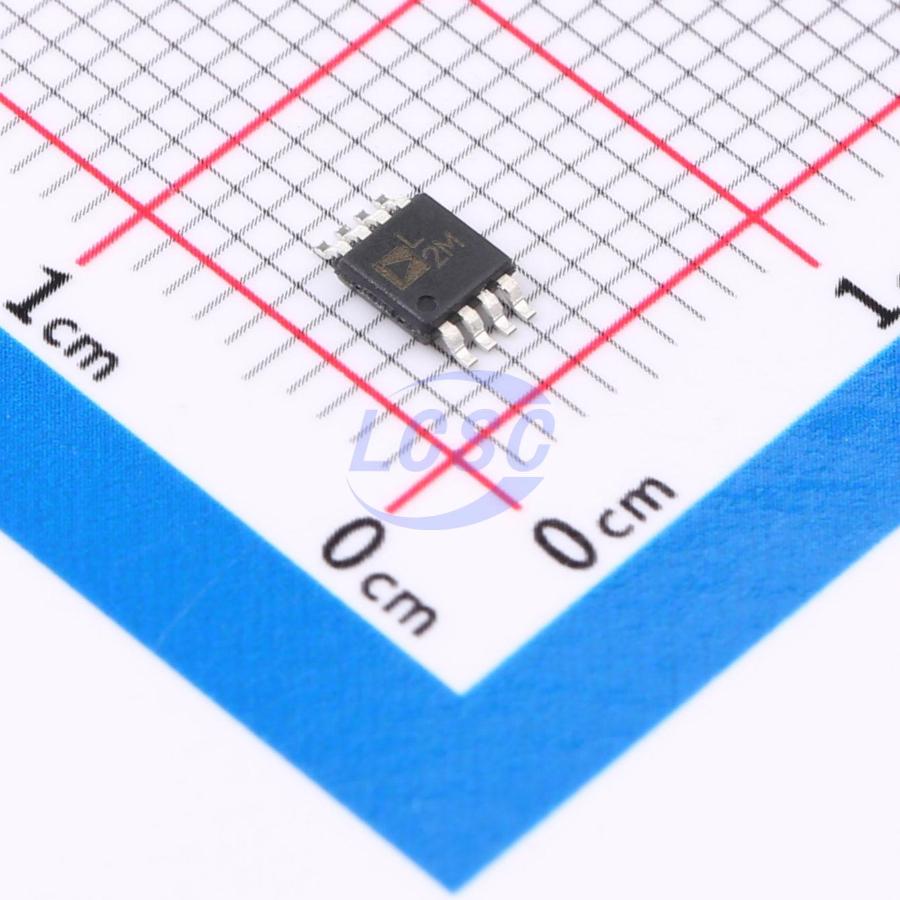

ADP1720ARMZ-R7

The ADP1720 is a high voltage, micropower, low dropout linear regulator. Operating over a very wide input voltage range of 4 V to 28 V, the ADP1720 can provide up to 50 mA of output current. With just 28 μA of quiescent supply current and a micropower shutdown mode, this device is ideal for applications that require low quiescent current. The ADP1720 is available in fixed output voltages of 3.3 V and 5.0 V. An adjustable version is also available, which allows the output to be set anywhere between 1.225 V and 5.0 V. An enable function that allows external circuits to turn on and turn off the ADP1720 output is available. For automatic startup, the enable (EN) pin can be connected directly to the input rail. The ADP1720 is optimized for stable operation with small 1 μF ceramic output capacitors, allowing for good transient performance while occupying minimal board space. The ADP1720 operates from -40°C to +125°C and uses current limit protection and thermal overload protection circuits to prevent damage to the device in adverse conditions. Available in a small thermally enhanced MSOP package, the ADP1720 provides a compact solution with low thermal resistance.

Applications

• DC-to-DC post regulation
• PCMCIA regulation
• Keep-alive power in portable equipment
• Industrial applications

Key features

• Wide input voltage range: 4 V to 28 V
• Maximum output current: 50 mA
• Low light load current: 28 μA at 0 μA load, 35 μA at 100 μA load
• Low shutdown current: 0.7 μA
• Low dropout voltage: 275 mV @ 50 mA load
• Initial accuracy: ±0.5%
• Accuracy over line, load, and temperature: ±2%
• Stable with small 1 μF ceramic output capacitor
• Fixed 3.3 V and 5.0 V output voltage options
• Adjustable output voltage option: 1.225 V to 5.0 V
• Current limit and thermal overload protection
• Logic controlled enable
• Space-saving thermally enhanced MSOP package
