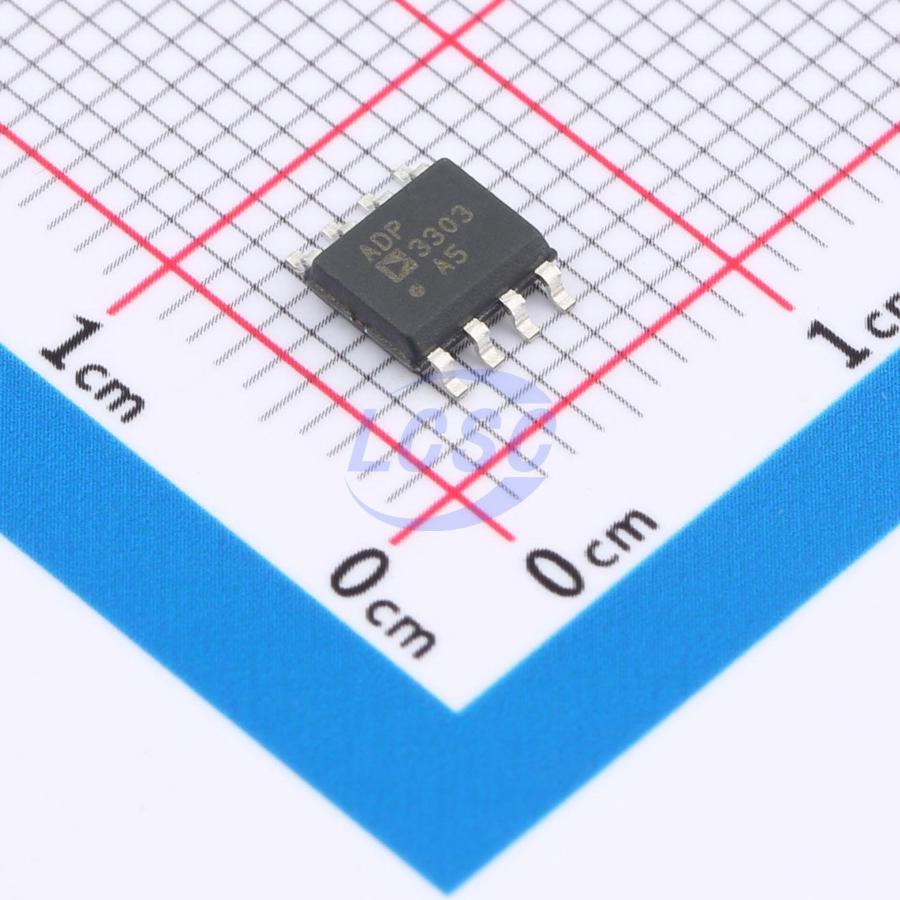

ADP3303ARZ-5

The ADP3303 is a member of the ADP3300, ADP3301, and ADP3309 family of precision low dropout anyCAP1 voltage regulators. The ADP3303 stands out from the conventional LDOs with a different architecture, an enhanced process, and a different package. Its patented design requires only a 0.47 μF output capacitor for stability. This device is insensitive to capacitor Equivalent Series Resistance (ESR) and is stable with any good quality capacitor, including ceramic types (MLCC) for space restricted applications. The ADP3303 achieves exceptional accuracy of ±0.8% at room temperature and ±1.4% overall accuracy over temperature, line, and load regulations. The dropout voltage of the ADP3303 is only 180 mV (typical) at 200 mA. In addition to the architecture and process, the proprietary thermally enhanced package (Thermal Coastline) can handle 1 W of power dissipation without external heatsink or large copper surface on the printed circuit board (PCB). This keeps PCB real estate to a minimum and makes the ADP3303 very attractive for use in portable equipment. The ADP3303 operates with a wide input voltage range from 3.2 V to 12 V and delivers a load current in excess of 200 mA. It features an error flag that signals when the device is about to lose regulation or when the short circuit or thermal overload protection is activated. Other features include shutdown and optional noise reduction capabilities.

Applications

• Cellular telephones
• Notebook, palmtop computers
• Battery powered systems
• Portable instruments
• Post regulator for switching supplies
• Bar code scanners

Key features

• High accuracy over line and load ±0.8% at +25°C, ±1.4% over temperature
• Ultralow dropout voltage: 180 mV (typical) at 200 mA
• Requires only C₀ = 0.47 μF for stability
• anyCAP = stable with all types of capacitors (including MLCC)
• 3.2 V to 12 V supply range
• Current and thermal limiting
• Low noise
• Dropout detector
• Low shutdown current: <1 μA
• Thermally enhanced SOIC_N package
• Excellent Line and Load Regulation Performance
