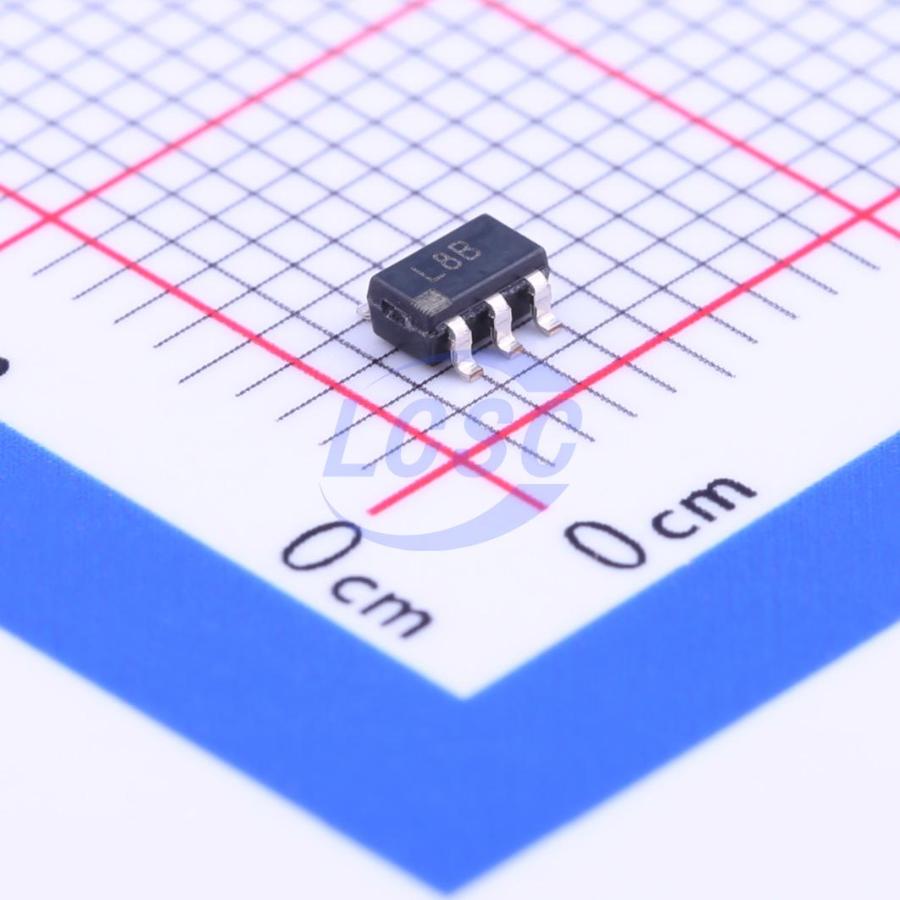

ADP3330ARTZ-5-RL7

The ADP3330 is a precision low dropout (LDO) anyCAP voltage regulator. It operates with an input voltage range of 2.9 V to 12 V and delivers a load current up to 200 mA. It has a novel architecture and an enhanced process, offering performance advantages and higher output current. It requires only a minimum output capacitor of 0.47 μF for stability, is insensitive to output capacitor ESR, and is stable with any good quality capacitor, including ceramic (MLCC) types. It achieves exceptional accuracy of ±0.7% at room temperature and ±1.4% over temperature, line and load variations. The dropout voltage is only 140 mV (typical) at 200 mA. It includes a safety current limit, thermal overload protection, and a shutdown feature. In shutdown mode, the ground current is reduced to less than 2 μA. It has an ultralow ground current 34 μA (typical) in light load situations. The 6 - lead SOT - 23 package has been thermally enhanced to maximize power dissipation.

Applications

• Cell phones
• Notebook and palmtop computers
• Battery - powered systems
• PCMCIA regulators
• Bar code scanners
• Camcorders and cameras

Key features

• High accuracy over line and load ±0.7% at +25°C, ±1.4% over temperature
• Ultralow dropout voltage: 140 mV (typical) at 200 mA
• Requires only Cout = 0.47 μF for stability
• anyCAP = stable with any type of capacitor, including multilayer ceramic capacitors (MLCC)
• Current and thermal limiting
• Low noise
• Low shutdown current: < 2 μA
• 2.9 V to 12 V supply range
• -40°C to +85°C ambient temperature range
• Ultrasmall, thermally enhanced, chip - on - lead 6 - lead SOT - 23 package
