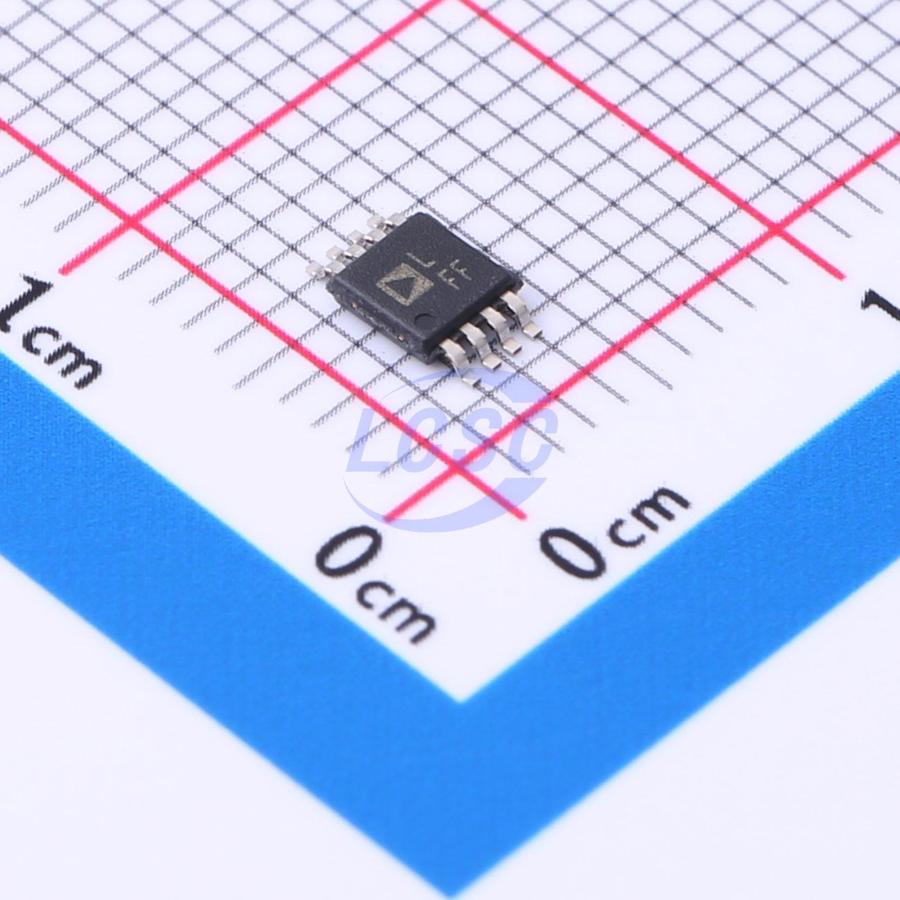

ADP3335ARMZ-5-R7

The ADP3335 is a member of the ADP333x family of precision, low dropout, anyCAP voltage regulators. It operates with an input voltage range of 2.6 V to 12 V, and delivers a continuous load current up to 500 mA. The ADP3335 stands out from conventional low dropout regulators (LDOs) by using an enhanced process enabling it to offer performance advantages beyond its competition. Its patented design requires only a 1.0 μF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable with any good quality capacitor—including ceramic (MLCC) types for space-restricted applications. The ADP3335 achieves exceptional accuracy of ±0.9% at room temperature and ±1.8% over temperature, line, and load. The dropout voltage of the ADP3335 is only 200 mV (typical) at 500 mA. This device also includes a safety current limit, thermal overload protection, and a shutdown feature. In shutdown mode, the ground current is reduced to less than 1 μA. The ADP3335 has a low quiescent current of 80 μA (typical) in light load situations.

Applications

• PCMCIA cards
• Cellular phones
• Camcorders, cameras
• Networking systems, DSL/cable modems
• Cable set-top box
• MP3/CD players
• DSP supplies

Key features

• High accuracy over line and load: ±0.9% at 25°C, ±1.8% over temperature
• Ultralow dropout voltage: 200 mV (typical) at 500 mA
• Requires only C₀ = 1.0 μF for stability
• anyCAP = stable with any type of capacitor (including MLCC)
• Current and thermal limiting
• Low noise
• Low shutdown current: <10 nA (typical)
• 2.6 V to 12 V supply range
• -40°C to +85°C ambient temperature range
