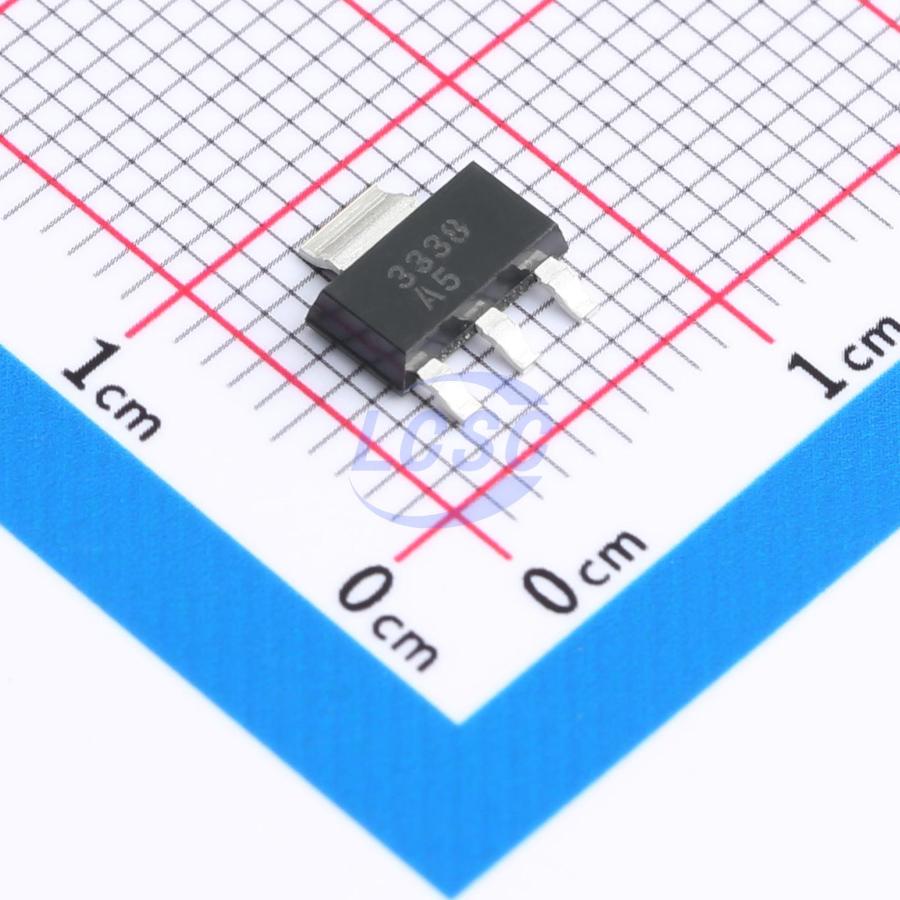

ADP3338AKCZ-5-REEL

The ADP3338 is a member of the ADP33xx family of precision, low dropout (LDO), anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7 V to 8 V and delivers a load current up to 1 A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1 μF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3338 achieves exceptional accuracy of ±0.8% at room temperature and ±1.4% over temperature, line, and load variations. The dropout voltage of the ADP3338 is only 190 mV (typical) at 1 A. The device also includes a safety current limit and thermal overload protection. The ADP3338 has ultralow quiescent current: 110 μA (typical) in light load situations.

Applications

• Notebook, palmtop computers
• SCSI terminators
• Battery - powered systems
• Bar code scanners
• Camcorders, cameras
• Home entertainment systems
• Networking systems
• DSP/ASIC supplies

Key features

• High accuracy over line and load: ±0.8% @ 25°C, ±1.4% over temperature
• Ultralow dropout voltage: 190 mV (typ) @ 1 A
• Requires only C₀ = 1.0 μF for stability
• anyCAP is stable with any type of capacitor (including MLCC)
• Current and thermal limiting
• Low noise
• 2.7 V to 8 V supply range
• -40°C to +85°C ambient temperature range
• SOT - 223 package
