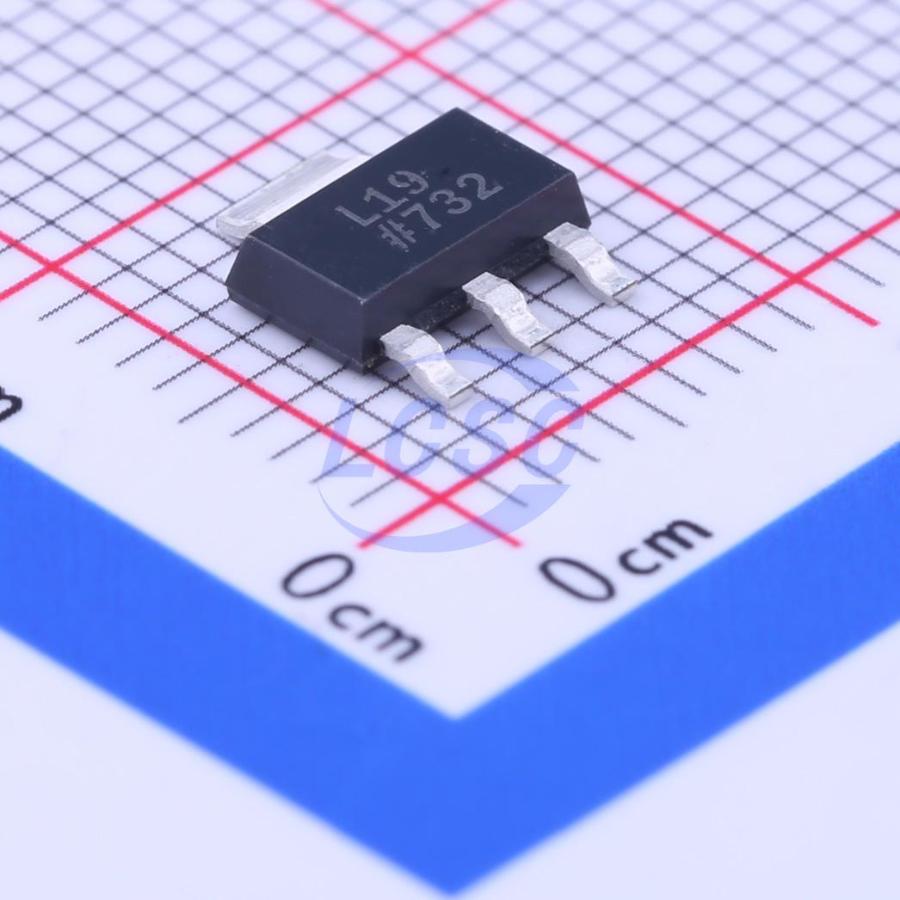

ADP3339AKCZ-1.8-RL

The ADP3339 is a member of the ADP33xx family of precision, low dropout, anyCAP voltage regulators. The ADP3339 operates with an input voltage range of 2.8 V to 6 V and delivers a load current up to 1.5 A. The ADP3339 stands out from the conventional LDOs with a novel architecture and an enhanced process that enables it to offer performance advantages and higher output current than its competition. Its patented design requires only a 1.0 μF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3339 achieves exceptional accuracy of ±0.9% at room temperature and ±1.5% over temperature, line, and load variations. The dropout voltage of the ADP3339 is only 230 mV (typical) at 1.5 A. The device also includes a safety current limit and thermal overload protection. The ADP3339 has ultralow quiescent current: 130 μA (typical) in light load situations.

Applications

• Notebooks, palmtop computers
• SCSI terminators
• Battery-powered systems
• PCMCIA regulators
• Bar code scanners
• Camcorders, cameras

Key features

• High accuracy over line and load: ±0.9% at 25°C, ±1.5% over temperature
• Ultralow dropout voltage: 230 mV (typical) at 1.5 A
• Requires only Cout = 1.0 μF for stability
• anyCAP = stable with any type of capacitor (including MLCC)
• Current and thermal limiting
• Low noise
• 2.8 V to 6 V input voltage range
• -40°C to +85°C ambient temperature range
• SOT-223 package
