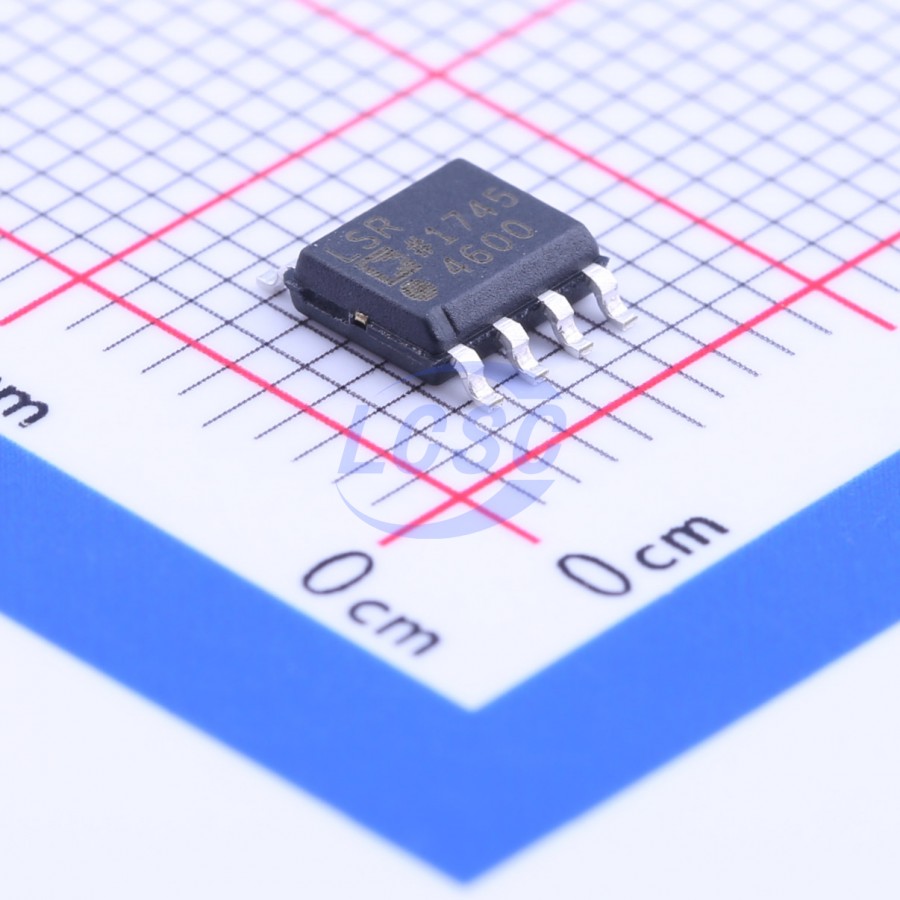

ADP7158ARDZ-3.3-R7

3.3V Positive Fixed SOIC-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOIC-8-EPROHS3 CompliantActive

Input 5.5V Output 3.3V 2A

Manufacturer: ADI
Manufacturer part #: ADP7158ARDZ-3.3-R7
Store part #: C208319
Package / case: SOIC-8-EP
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

66 in stock

#C208319

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹2,534.19	₹2,534.19
10+	₹2,235.14	₹22,351.40
30+	₹2,037.21	₹61,116.30
100+	₹1,864.68	₹1,86,468.00

Quantity (min 1)

1 × ₹2,534.19

₹2,534.19

excl. GST

₹2,990.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

ADP7158ARDZ-3.3-R7

₹2,534.19 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 4mA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 2A
Features: Enable control;Input under-voltage protection;Output discharge;Thermal shutdown;Noise bypass terminal;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.133 g

Overview

The ADP7158 is a linear regulator that operates from 2.3 V to 5.5 V and provides up to 2 A of output current. Using an advanced proprietary architecture, it provides high power supply rejection and ultralow noise, achieving excellent line and load transient response with only a 10 μF ceramic output capacitor. There are 16 standard output voltages for the ADP7158. The following voltages are available from stock: 1.2 V, 1.8 V, 2.0 V, 2.5 V, 2.8 V, 3.0 V and 3.3 V. Additional voltages available by special order are 1.3 V, 1.5 V, 1.6 V, 2.2 V, 2.6 V, 2.7 V, 2.9 V, 3.1 V and 3.2 V. The ADP7158 regulator typical output noise is 0.9 μV rms from 100 Hz to 100 kHz and 1.7 nV/√Hz for noise spectral density from 10 kHz to 1 MHz. The ADP7158 is available in a 10 - lead, 3 mm×3 mm LFCSP and 8 - lead SOIC packages, making it not only a very compact solution, but also providing excellent thermal performance for applications requiring up to 2 A of output current in a small, low profile footprint.

Applications

Regulation to noise sensitive applications: phase - locked loops (PLLs), voltage controlled oscillators (VCOs), and PLLs with integrated VCOs
Communications and infrastructure
Backhaul and microwave links

Key features

Input voltage range: 2.3 V to 5.5 V
16 standard voltages between 1.2 V and 3.3 V available
Maximum load current: 2 A
Low noise
0.9 μV rms total integrated noise from 100 Hz to 100 kHz
1.6 μV rms total integrated noise from 10 Hz to 100 kHz
Noise spectral density: 1.7 nV/√Hz from 10 kHz to 1 MHz
Power supply rejection ratio (PSRR): 70 dB from 1 kHz to 100 kHz; 50 dB at 1 MHz, Vout = 3.3 V, Vin = 4.0 V
Dropout voltage: 200 mV typical at IOUT = 2 A, VOUT = 3.3 V
Initial accuracy: ±0.6% at ILOAD = 10 mA
Accuracy over line, load, and temperature: ±1.5%
Quiescent current: IGND = 4.0 mA at no load, 9.0 mA at 2 A
Low shutdown current: 0.2 μA
Stable with a 10 μF ceramic output capacitor
10 - lead, 3 mm×3 mm LFCSP and 8 - lead SOIC packages
Precision enable
Supported by ADIsimPower tool
