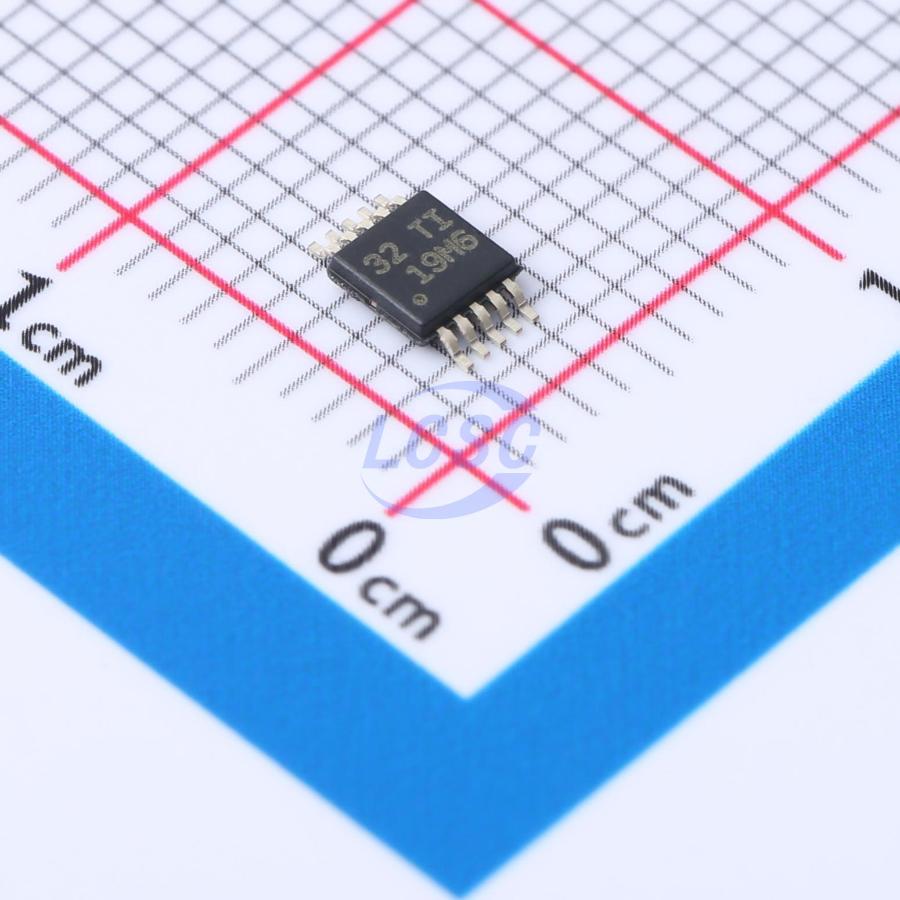

ADS1015BQDGSRQ1
12 Bit Analog to Digital Converter 2 Input Sigma-Delta VSSOP-10-0.5mm
VSSOP-10-0.5mmROHS3 CompliantActive
Automotive-grade, low-power 3.3 ksps, 12-bit ADC with internal reference, oscillator, and programmable comparator, and I2C compatible
- Manufacturer
- TI
- Manufacturer part #
- ADS1015BQDGSRQ1
- Store part #
- C701605
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,912 in stock
#C701605
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹395.47 | ₹395.47 |
| 10+ | ₹337.80 | ₹3,378.00 |
| 30+ | ₹301.82 | ₹9,054.60 |
| 100+ | ₹264.96 | ₹26,496.00 |
| 500+ | ₹248.26 | ₹1,24,130.00 |
| 1,000+ | ₹241.10 | ₹2,41,100.00 |
1 × ₹395.47
₹395.47
excl. GST
₹466.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADS1015BQDGSRQ1
₹395.47 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C
- Quiescent Current (Iq)
- 150uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 2
- Integral non - linearity
- 0.5LSB
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 1MHz
- Features
- Multiplexers;Power-on reset
- Resolution(Bits)
- 12;3.3kHz
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADS1015IDGSR#C193969TI · VSSOP-10-0.5mm | TI | VSSOP-10-0.5mm | 5,392 | ₹253.46 · 5,392 in stock | View |
 | ADS1015IDGST#C701606TI · VSSOP-10-0.5mm | TI | VSSOP-10-0.5mm | 642 | ₹293.19 · 642 in stock | View |
 | AD7992BRMZ-1REEL#C652125ADI · MSOP-10 | ADI | MSOP-10 | 5 | ₹1,402.19 · 5 in stock | View |
 | AD7992BRMZ-1#C652124ADI · MSOP-10 | ADI | MSOP-10 | 4 | ₹1,852.86 · 4 in stock | View |
| AD7992BRMZ-0#C578587ADI · MSOP-10 | ADI | MSOP-10 | On request | ₹1,188.46 · 0 in stock | View | |
