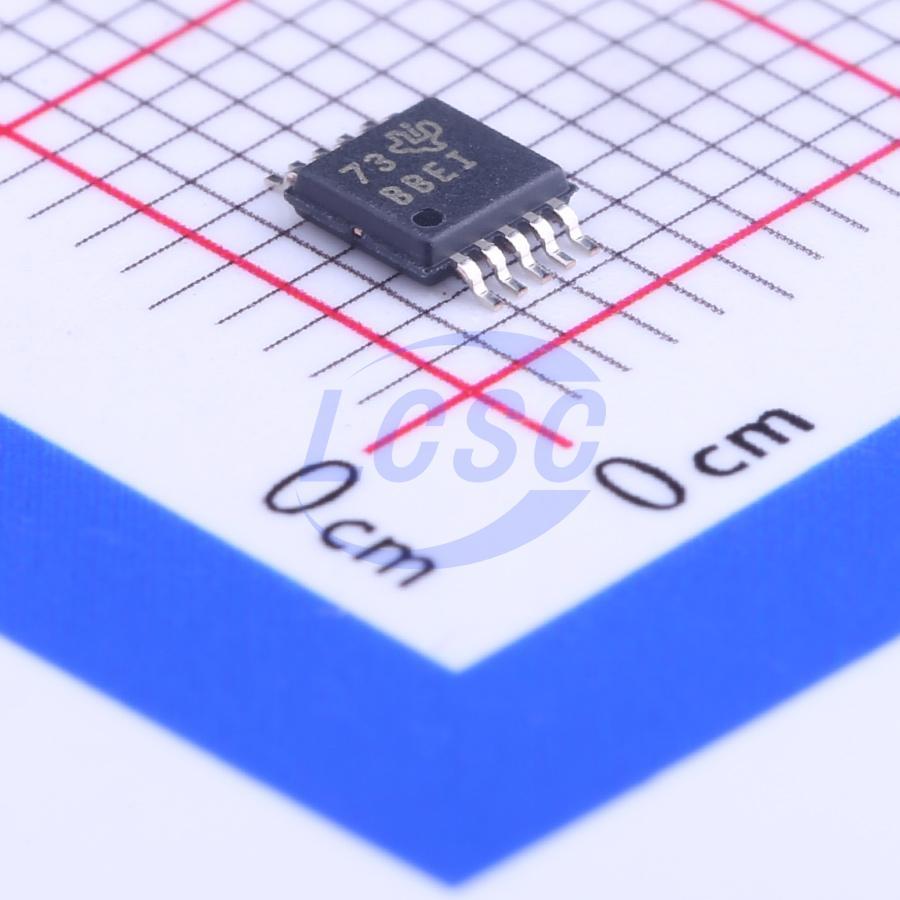

ADS1118IDGSR

The ADS1118 is a high-precision, low-power 16-bit ADC. Available in an ultra-small leadless X2QFN-10 package or an ultra-thin small-outline VSSOP-10 package, the device integrates all the functions required to measure the most common sensor signals. The ADS1118 incorporates a PGA, voltage reference, oscillator, and high-precision temperature sensor. These features, combined with a wide supply voltage range of 2V to 5.5V, make the ADS1118 ideal for power- and space-constrained sensor measurement applications. The ADS1118 supports data conversion rates up to 860 SPS. The PGA offers an input range of ±256mV to ±6.144V, enabling high-resolution measurement of both large and small signals. The device measures two differential inputs or four single-ended inputs via an input MUX. The high-precision temperature sensor supports system-level temperature monitoring or cold-junction compensation for thermocouples. The ADS1118 can be configured for either continuous-conversion mode or single-shot mode. In single-shot mode, the device automatically powers down after completing a conversion, significantly reducing current consumption during idle periods. All data is transferred via SPI. The ADS1118 is rated for an operating temperature range of -40°C to +125°C.

Applications

• Temperature Measurement:
• Thermocouple measurement
• Cold junction compensation
• Thermistor measurement
• Portable instrumentation
• Factory automation and process control

Key features

• Ultra-compact X2QFN package: 2mm×1.5mm×0.4mm
• Wide supply voltage range: 2V to 5.5V
• Low current consumption: Continuous mode: only 150μA; Single-shot mode: auto power-down
• Programmable data rate: 8SPS to 860SPS
• Single-cycle settling
• Internal low-drift voltage reference
• Internal temperature sensor: 0.5°C (maximum) error: 0°C to 70°C
• Internal oscillator
• Internal programmable gain amplifier (PGA)
• Four single-ended or two differential inputs
