TIDatasheet (PDF)

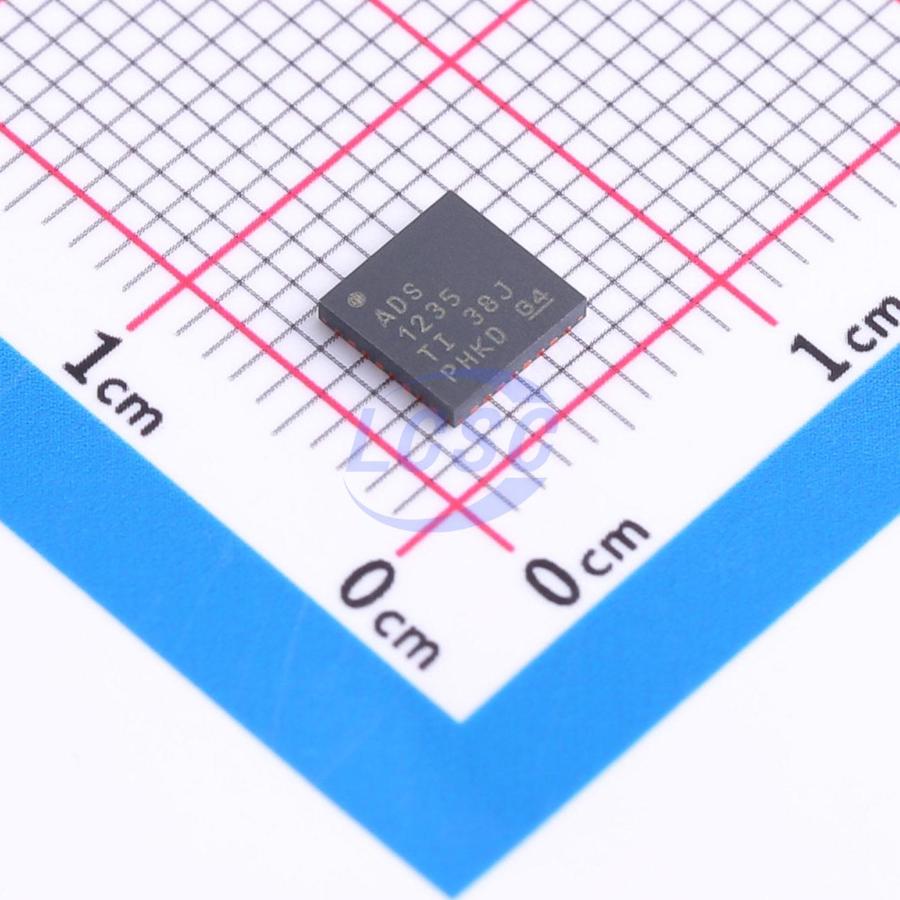

ADS1235IRHBR
24 Bit Analog to Digital Converter 3 Input Sigma-Delta VQFN-32-EP(5x5)
VQFN-32-EP(5x5)ROHS3 CompliantActive
Precision 3-channel differential input Δ-Σ ADC suitable for bridge sensors
- Manufacturer
- TI
- Manufacturer part #
- ADS1235IRHBR
- Store part #
- C2669975
- Package / case
- VQFN-32-EP(5x5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,333 in stock
#C2669975
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,341.43 | ₹1,341.43 |
| 10+ | ₹1,205.93 | ₹12,059.30 |
| 30+ | ₹1,119.21 | ₹33,576.30 |
| 100+ | ₹1,035.30 | ₹1,03,530.00 |
1 × ₹1,341.43
₹1,341.43
excl. GST
₹1,582.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADS1235IRHBR
₹1,341.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- SPI
- Quiescent Current (Iq)
- 30uA;50uA
- Voltage - Supply
- 5V
- Number of Channels
- 3
- Integral non - linearity
- 2LSB
- Voltage Reference
- External
- Clock/Oscillator
- Built-in;External
- Clock Frequency
- 7.3728MHz;1MHz~8MHz
- Features
- Bipolar input;Multiplexers;Integrated modulator;Built-in digital filter;Built-in temperature sensor;Bipolar power supply
- Resolution(Bits)
- 7.2kHz;24
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The PGA's high-impedance input (1GΩ) minimizes measurement errors caused by sensor loading. The ADC supports AC bridge excitation to eliminate temperature drift errors caused by sensor wiring. The ADC provides clock control signals for AC excitation operation. The flexible digital filter can be programmed for single-cycle settling conversion and simultaneously provides 50Hz and 60Hz line cycle rejection. The ADS1235 is available in a thin 5mm×5mm QFh package, rated for a temperature range of -40°C to +125°C.
Applications
- Weighing scales and strain gauge digital converters
- Dynamic weighing systems
- Pressure measurement
- Process analysis
Key features
- 24-bit high-precision ADC
- 120,000 noise-free counts (10mV input, 10SPS)
- Offset drift: 1nV/°C
- Gain drift: 0.5ppm/°C
- Dual reference inputs
- Wide input voltage range: ±7mV to ±5V
- Low-noise PGA, gain: 1, 64, and 128
- Data rate: 2.5SPS to 7200SPS
- AC or DC bridge excitation options
- Chop mode for zero temperature drift operation
- Simultaneous 50Hz and 60Hz rejection mode
- Single-cycle settling mode
- Missing reference input monitor
- Signal out-of-range monitor
- Temperature sensor
- CRC
- 5V or ±2.5V supply
