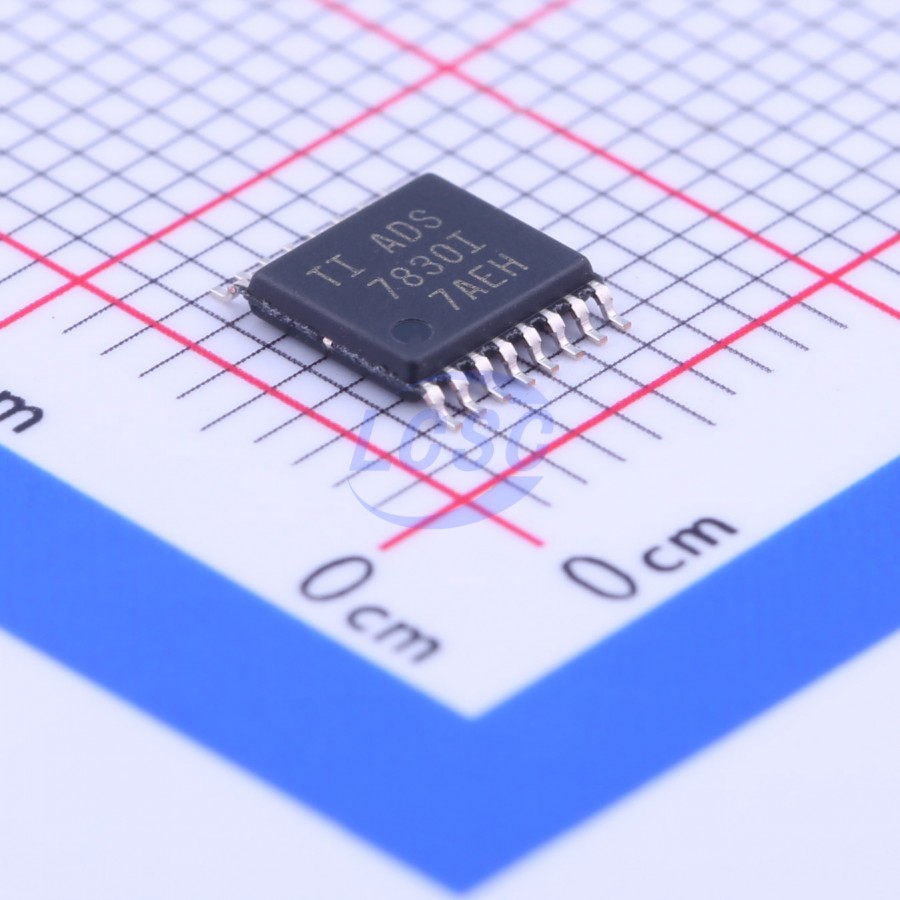

ADS7830IPWR
I2C 2.7V~5V TSSOP-16 Analog to Digital Converters (ADC) RoHS
TSSOP-16ROHS CompliantActive
8-Bit, 8-Channel Sampling Analog-to-Digital Converter with I²C Interface
- Manufacturer
- TI
- Manufacturer part #
- ADS7830IPWR
- Store part #
- C161747
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,672 in stock
#C161747
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.00 | ₹242.00 |
| 10+ | ₹203.52 | ₹2,035.20 |
| 30+ | ₹179.39 | ₹5,381.70 |
| 100+ | ₹145.69 | ₹14,569.00 |
| 500+ | ₹134.38 | ₹67,190.00 |
| 1,000+ | ₹129.59 | ₹1,29,590.00 |
1 × ₹242.00
₹242.00
excl. GST
₹285.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADS7830IPWR
₹242.00 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C
- Quiescent Current (Iq)
- 70uA
- Voltage - Supply
- 2.7V~5V
- Number of Channels
- 4
- Integral non - linearity
- 0.5LSB
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 3.4MHz
- Features
- Multiplexers
- Resolution(Bits)
- 70kHz;8
- S/N Ratio
- 50dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
The ADS7830 is a single-supply, low-power, 8-bit data acquisition device that features a serial I²C interface and an 8-channel multiplexer. The Analog-to-Digital (A/D) converter features a sample-and-hold amplifier and internal, asynchronous clock. The combination of an I²C serial, 2-wire interface and micropower consumption makes the ADS7830 ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation. The ADS7830 is available in a TSSOP-16 package.
Applications
- VOLTAGE-SUPPLY MONITORING
- ISOLATED DATA ACQUISITION
- TRANSDUCER INTERFACE
- BATTERY-OPERATED SYSTEMS
- REMOTE DATA ACQUISITION
Key features
- 70kHz SAMPLING RATE
- ±0.5LSB INL/DNL
- 8 BITS NO MISSING CODES
- 4 DIFFERENTIAL/8 SINGLE-ENDED INPUTS
- 2.7V TO 5V OPERATION
- BUILT-IN 2.5V REFERENCE/BUFFER
- SUPPORTS ALL THREE I2C MODES: Standard, Fast, and High-Speed
- LOW POWER: 180μW (Standard Mode), 300μW (Fast Mode), 675μW (High-Speed Mode)
- DIRECT PIN COMPATIBLE WITH ADS7828
- TSSOP-16 PACKAGE
