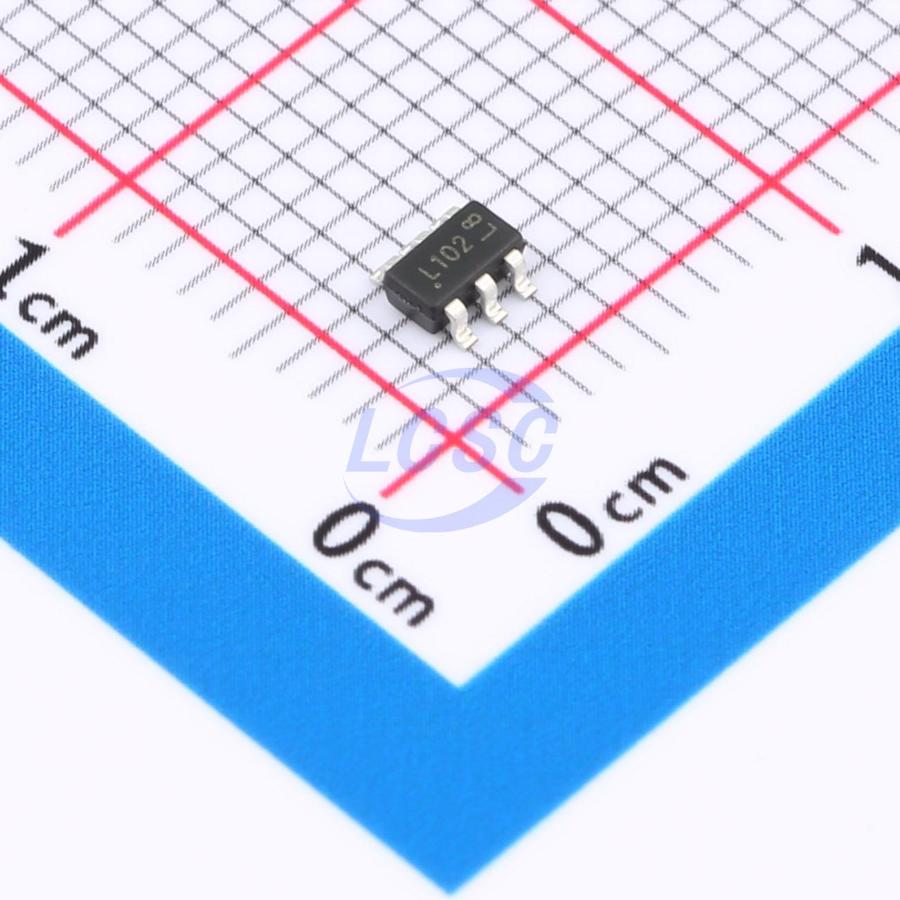

AL5802-7
120mA PWM 1 DC-DC 800mV~30V 4.5V~30V SOT-26 LED Drivers RoHS
30V, ADJUSTABLE CURRENT SINK LINEAR LED DRIVER
- Manufacturer
- DIODES
- Manufacturer part #
- AL5802-7
- Store part #
- C129160
- Package / case
- SOT-26
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,846 in stock
#C129160
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.98 | ₹70.98 |
| 10+ | ₹57.74 | ₹577.40 |
| 30+ | ₹52.09 | ₹1,562.70 |
| 100+ | ₹45.15 | ₹4,515.00 |
| 500+ | ₹42.11 | ₹21,055.00 |
| 1,000+ | ₹40.15 | ₹40,150.00 |
1 × ₹70.98
₹70.98
excl. GST
₹83.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AL5802-7
₹70.98 for 1 + GST
Specifications
- Output Current
- 120mA
- Operating Temperature
- -40℃~+125℃
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Features
- Over-Temperature Protection (OTP)
- Output Voltage
- 800mV~30V
- Voltage - Input(DC)
- 4.5V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
The AL5802 combines a high gain NPN transistor with a pre-biased NPN transistor to make a simple small footprint LED driver. The LED current is set by an external resistor connected from REXT pin (6) to GND pin (4), the internal high gain transistor develops approximately 0.6V across the external resistor. The AL5802 open-collector output can operate from 0.8V to 30V enabling it to operate from 5V to 24V power supplies without additional components. PWM dimming of the LED current can be achieved by either driving the BIAS pin (2) with a low impedance voltage source, or driving the EN pin (3) with an external open-collector NPN transistor or opendrain N-channel MOSFET. The AL5802 is available in a SOT26 package and is ideal for driving 20mA to 120mA LED currents.
Applications
- Linear LED driver
- LED signs
- Offline LED luminaries
Key features
- Reference voltage VRSET = 0.65V
- -40 to +125°C temperature range
- 0.8V to 30V open-collector output
- Negative temperature co-efficient – automatically reduces the LED current at high temperatures
- Low thermal impedance SOT26 with copper leadframe
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
