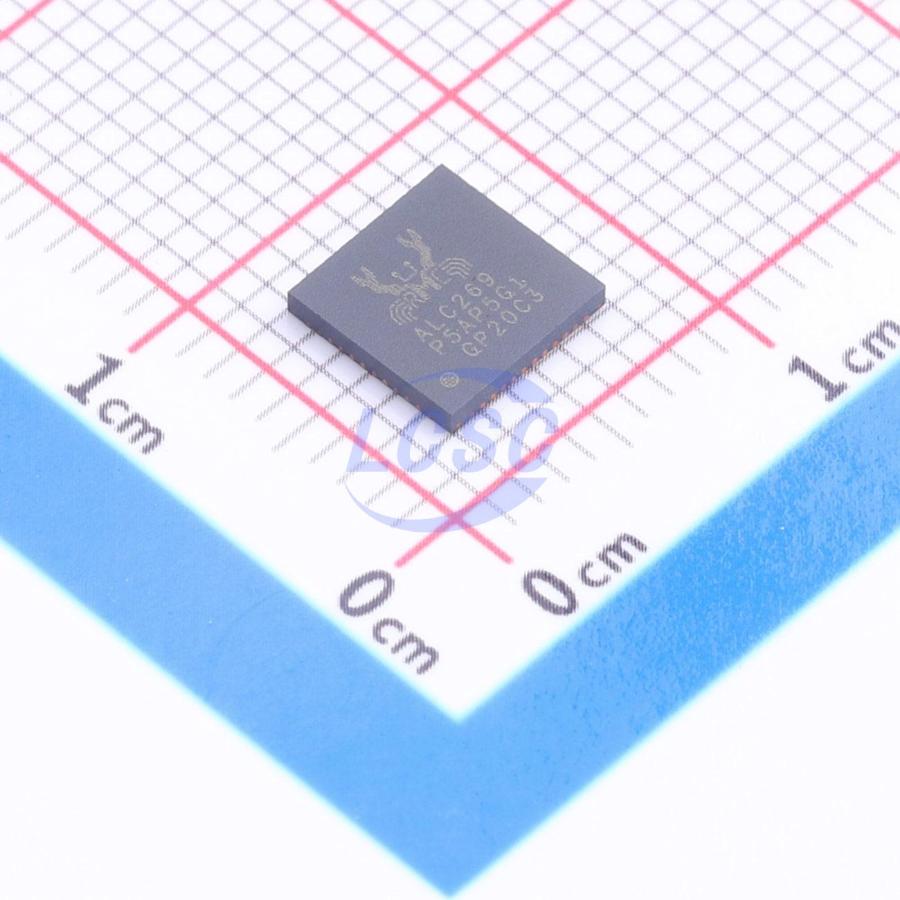

ALC269Q-VC3-GR
Encoder/decoder QFN-48-EP(6x6) Audio Special Purpose
- Manufacturer
- REALTEK
- Manufacturer part #
- ALC269Q-VC3-GR
- Store part #
- C669848
- Package / case
- QFN-48-EP(6x6)
- Category
- Audio Special Purpose
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,348 in stock
#C669848
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹288.97 | ₹288.97 |
| 10+ | ₹247.65 | ₹2,476.50 |
| 30+ | ₹221.79 | ₹6,653.70 |
| 100+ | ₹195.26 | ₹19,526.00 |
| 490+ | ₹183.30 | ₹89,817.00 |
| 980+ | ₹178.30 | ₹1,74,734.00 |
1 × ₹288.97
₹288.97
excl. GST
₹340.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 490 per tray
ALC269Q-VC3-GR
₹288.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Type
- Encoder/decoder
- Features
- Multi-channel audio
- Interface
- I2S;S/PDIF
- Voltage - Supply
- 3.3V;5V
- Resolution (Bits)
- 44.1kHz;48kHz;96kHz;192kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tray
- Standard pack
- 490 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
ALC269-VC is a high-definition audio codec integrating a Class-D speaker amplifier. It supports HD audio links and features a low-power design, suited for laptops and other portable audio applications.
Applications
- Laptop
- Desktop computer
- All-in-one PC
- Portable audio device
Key features
- Integrated Class-D speaker amplifier
- High-definition audio link support
- Multi-channel audio input and output
- Low-power design
- Multiple audio sample rates and formats support
- Built-in DSP functionality
- Flexible pin configuration and power management
- Software-controlled audio parameter settings
