YLPTEC

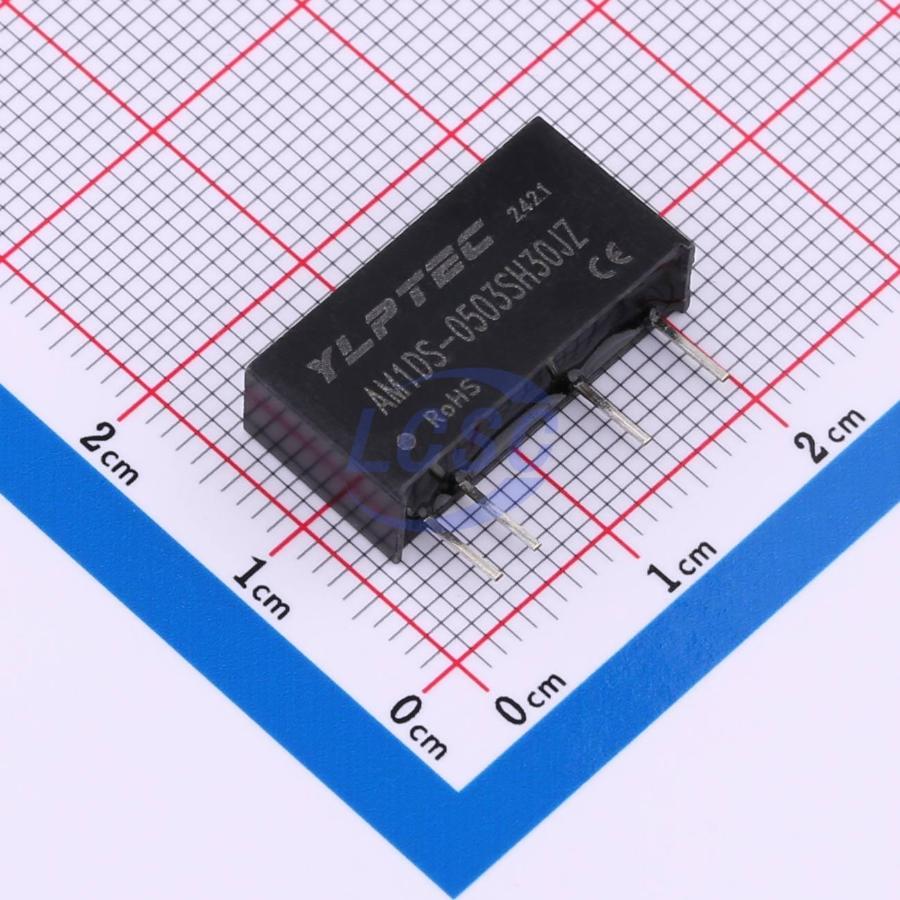

AM1DS-0503SH30JZ

Isolated Module DC DC Converter Buck 1 Output 3.3V 303mA 4.5V~5.5V Input

SIP,19.5x6mmRoHSActive

1W Isolated Non-Regulated Single-Output DC/DC Module Power Supply with Fixed Voltage Input

Manufacturer: YLPTEC
Manufacturer part #: AM1DS-0503SH30JZ
Store part #: C22372299
Package / case: SIP,19.5x6mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C22372299

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹403.50	₹403.50
10+	₹341.49	₹3,414.90
25+	₹302.68	₹7,567.00
100+	₹262.79	₹26,279.00
500+	₹244.79	₹1,22,395.00
1,000+	₹237.20	₹2,37,200.00

Quantity (min 1)

1 × ₹403.50

₹403.50

excl. GST

₹476.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

AM1DS-0503SH30JZ

₹403.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Ripple Noise: 30mVp-p
Operating Temperature: -40℃~+85℃
Voltage - Supply: 4.5V~5.5V
Capacitive Load(Max): 2400uF
Number of Outputs: 1
Iout: 303mA
Height: 10mm
Frequency - Switching: 100kHz
Isolation Voltage(Vrms): 3kV
Output Power: 1W
Conversion Efficiency: 83%
Features: Short Circuit Protection;Automatic fault recovery;Over-temperature protection
Length: 19.5mm
Width: 6mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.25 g

Overview

1W, Fixed Voltage Input, Isolated Unregulated Single Output DC/DC Module Power Supply. The AM1DS-SH30JZ series is a compact, high-efficiency micro-power, fixed voltage input, isolated unregulated, single output DC/DC module power supply; this series is specifically designed for on-board power system applications that require generating an isolated voltage from the input power supply.

Applications

Pure digital circuit applications
General low-frequency analog circuit applications
Relay driver circuits
Data switching circuit applications

Key features

Fixed voltage input, isolated unregulated output, 1W power
Isolation voltage: 3000VDC
Low no-load power consumption: 0.025W (Typ.)
Efficiency: up to 90%
Operating temperature: -40°C ~ +85°C
MTBF ≥ 3,500,000 Hrs
Output short-circuit protection: continuous short-circuit protection with auto-recovery
Compact SIP package, plastic housing
Industry-standard pinout
Ripple/Noise (20MHz bandwidth): 30mVp-p (Typ.)
