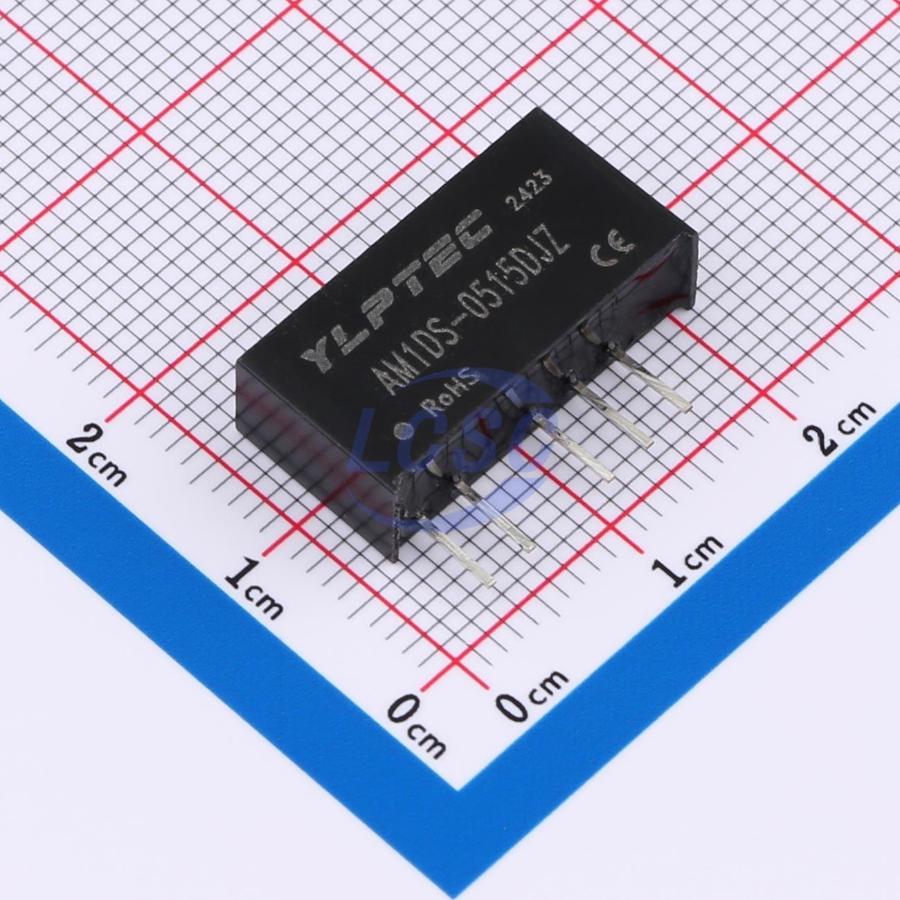

AM1DS-0515DJZ
Isolated Module DC DC Converter Boost 2 Output ±15V ±34mA 4.5V~5.5V Input
Fixed-voltage input isolated non-regulated dual-output DC/DC modular power supply
- Manufacturer
- YLPTEC
- Manufacturer part #
- AM1DS-0515DJZ
- Store part #
- C22372333
- Package / case
- SIP,19.5x6mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C22372333
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹408.50 | ₹408.50 |
| 10+ | ₹347.33 | ₹3,473.30 |
| 25+ | ₹309.05 | ₹7,726.25 |
| 100+ | ₹269.91 | ₹26,991.00 |
| 500+ | ₹252.16 | ₹1,26,080.00 |
| 1,000+ | ₹244.46 | ₹2,44,460.00 |
1 × ₹408.50
₹408.50
excl. GST
₹482.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
AM1DS-0515DJZ
₹408.50 for 1 + GST
Specifications
- Output Voltage
- ±15V
- Ripple Noise
- 30mVp-p
- Type
- Plastic encapsulated type
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Capacitive Load(Max)
- 330uF
- Number of Outputs
- 2
- Iout
- 34mA
- Height
- 10mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Conversion Efficiency
- 89%
- Output Power
- 1W
- Features
- Short Circuit Protection;Automatic fault recovery;Over-temperature protection
- Length
- 19.5mm
- Width
- 6mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.23 g
Overview
1W, fixed voltage input, isolated unregulated dual positive/negative output, DC/DC module power supply. This series is specifically designed for applications in on-board power systems that require generating a set of voltages isolated from the input power supply.
Applications
- Pure digital circuit applications
- General low-frequency analog circuit applications
- Relay driver circuits
- Data switching circuit applications
Key features
- Fixed voltage input, isolated unregulated dual output, 1W power
- Low no-load power consumption: 0.025W (Typ.)
- Isolation voltage: 1500VDC
- Efficiency: up to 90%
- Operating temperature range: -40°C~+85°C
- MTBF 23.5 million hours (3500000Hrs)
- Output short-circuit protection: continuous short-circuit protection, auto-recovery
- Compact SIP package, plastic housing
- International standard pinout
- Ripple/Noise (20MHz bandwidth): 30mVp-p (Typ.)
