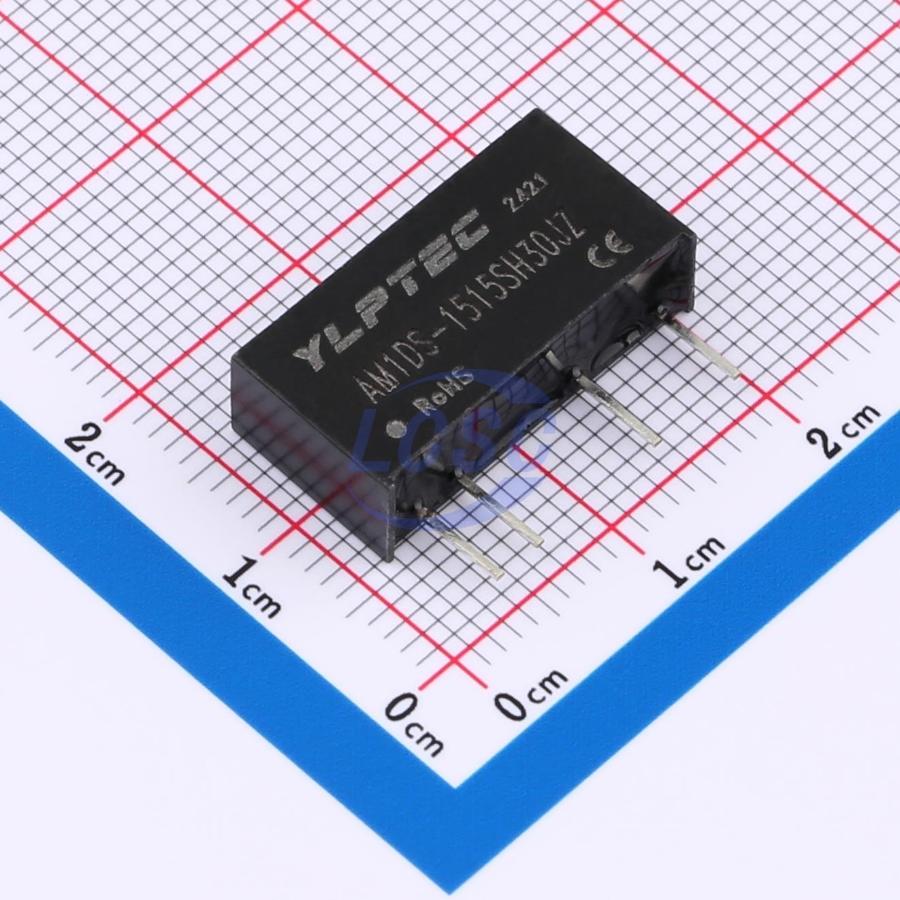

AM1DS-1515SH30JZ
Isolated Module DC DC Converter 1 Output 15V 67mA 13.5V~16.5V Input
1W Isolated Non-Regulated Single-Output DC/DC Module Power Supply with Fixed Voltage Input
- Manufacturer
- YLPTEC
- Manufacturer part #
- AM1DS-1515SH30JZ
- Store part #
- C22372314
- Package / case
- SIP,19.5x6mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C22372314
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹390.91 | ₹390.91 |
| 10+ | ₹330.84 | ₹3,308.40 |
| 25+ | ₹293.24 | ₹7,331.00 |
| 100+ | ₹254.58 | ₹25,458.00 |
| 500+ | ₹237.16 | ₹1,18,580.00 |
| 1,000+ | ₹229.81 | ₹2,29,810.00 |
1 × ₹390.91
₹390.91
excl. GST
₹461.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
AM1DS-1515SH30JZ
₹390.91 for 1 + GST
Specifications
- Output Voltage
- 15V
- Ripple Noise
- 30mVp-p
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 13.5V~16.5V
- Capacitive Load(Max)
- 560uF
- Number of Outputs
- 1
- Iout
- 67mA
- Height
- 10mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 3kV
- Output Power
- 1W
- Conversion Efficiency
- 90%
- Features
- Short Circuit Protection;Automatic fault recovery;Over-temperature protection
- Length
- 19.5mm
- Width
- 6mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.36 g
Overview
1W, Fixed Voltage Input, Isolated Unregulated Single Output DC/DC Module Power Supply. The AM1DS-SH30JZ series is a compact, high-efficiency micro-power, fixed voltage input, isolated unregulated, single output DC/DC module power supply; this series is specifically designed for on-board power system applications that require generating an isolated voltage from the input power supply.
Applications
- Pure digital circuit applications
- General low-frequency analog circuit applications
- Relay driver circuits
- Data switching circuit applications
Key features
- Fixed voltage input, isolated unregulated output, 1W power
- Isolation voltage: 3000VDC
- Low no-load power consumption: 0.025W (Typ.)
- Efficiency: up to 90%
- Operating temperature: -40°C ~ +85°C
- MTBF ≥ 3,500,000 Hrs
- Output short-circuit protection: continuous short-circuit protection with auto-recovery
- Compact SIP package, plastic housing
- Industry-standard pinout
- Ripple/Noise (20MHz bandwidth): 30mVp-p (Typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AM1DR-1515SH30VZ#C22372257YLPTEC · SIP,19.5x6mm | YLPTEC | SIP,19.5x6mm | 25 | ₹390.91 · 25 in stock | View |
 | F1515S-1WR3#C22749937YLPTEC · SIP,19.5x6mm | YLPTEC | SIP,19.5x6mm | 40 | ₹315.26 · 40 in stock | View |
 | IF1515S-1WR3#C22751345YLPTEC · SIP,19.5x6mm | YLPTEC | SIP,19.5x6mm | 19 | ₹293.14 · 19 in stock | View |
 | AM1DS-1215SH30JZ#C22372309YLPTEC · SIP,19.5x6mm | YLPTEC | SIP,19.5x6mm | 25 | ₹400.05 · 25 in stock | View |
 | F1215S-1WR3#C22749931YLPTEC · SIP,19.5x6mm | YLPTEC | SIP,19.5x6mm | 56 | ₹262.69 · 56 in stock | View |
