VBsemi ElecDatasheet (PDF)

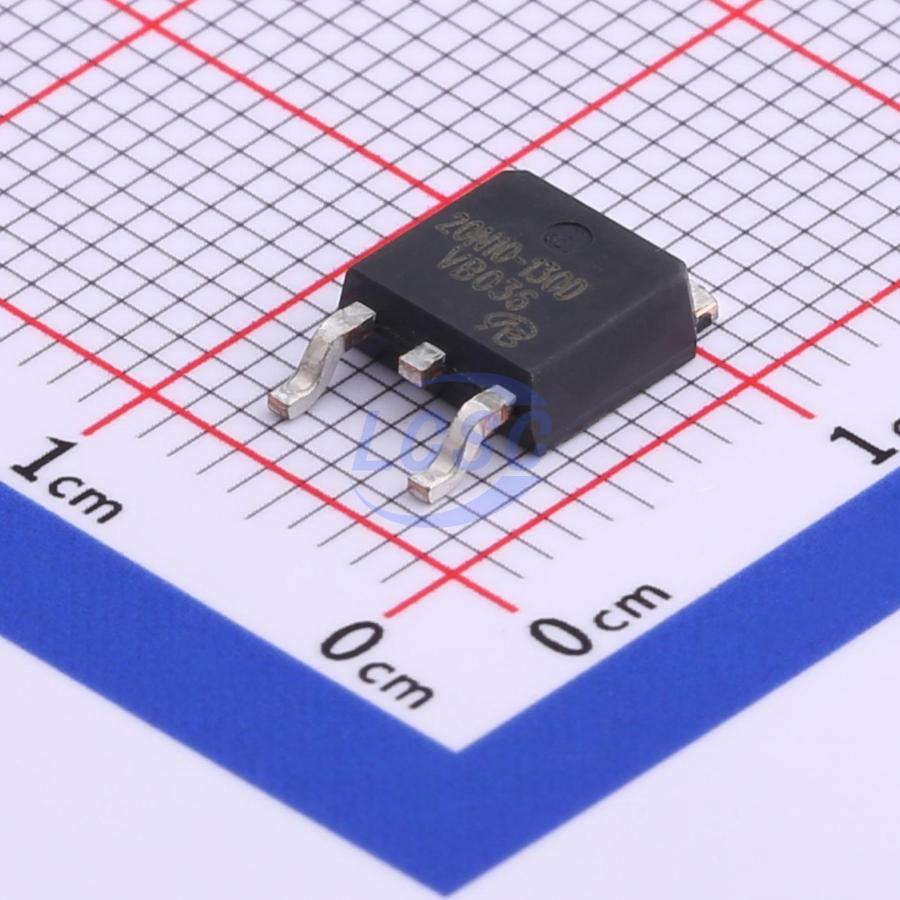

AM20N10-130D-VB
100V 15A 96W 114mΩ@10V 1 N-channel TO-252-2 Single FETs, MOSFETs
TO-252-2RoHSActive
MOSFET N-CH 100V 15A TO-252-2
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AM20N10-130D-VB
- Store part #
- C878945
- Package / case
- TO-252-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C878945
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.63 | ₹69.63 |
| 10+ | ₹55.24 | ₹552.40 |
| 30+ | ₹49.00 | ₹1,470.00 |
| 100+ | ₹41.26 | ₹4,126.00 |
| 500+ | ₹37.82 | ₹18,910.00 |
| 1,000+ | ₹35.89 | ₹35,890.00 |
1 × ₹69.63
₹69.63
excl. GST
₹82.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AM20N10-130D-VB
₹69.63 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 114mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.391 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 150 °C
- Optimized for PWM
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RU1HE12L-VB#C18212472VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹69.07 · 10 in stock | View |
 | IRFR3911TRPBF-VB#C18212473VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹70.54 · 3 in stock | View |
 | 2SK3147STL-E-VB#C18212506VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹65.75 · 1 in stock | View |
 | AOD478-VB#C18212568VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹69.07 · 49 in stock | View |
 | AOD446-VB#C18794979VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 12 | ₹72.06 · 12 in stock | View |
