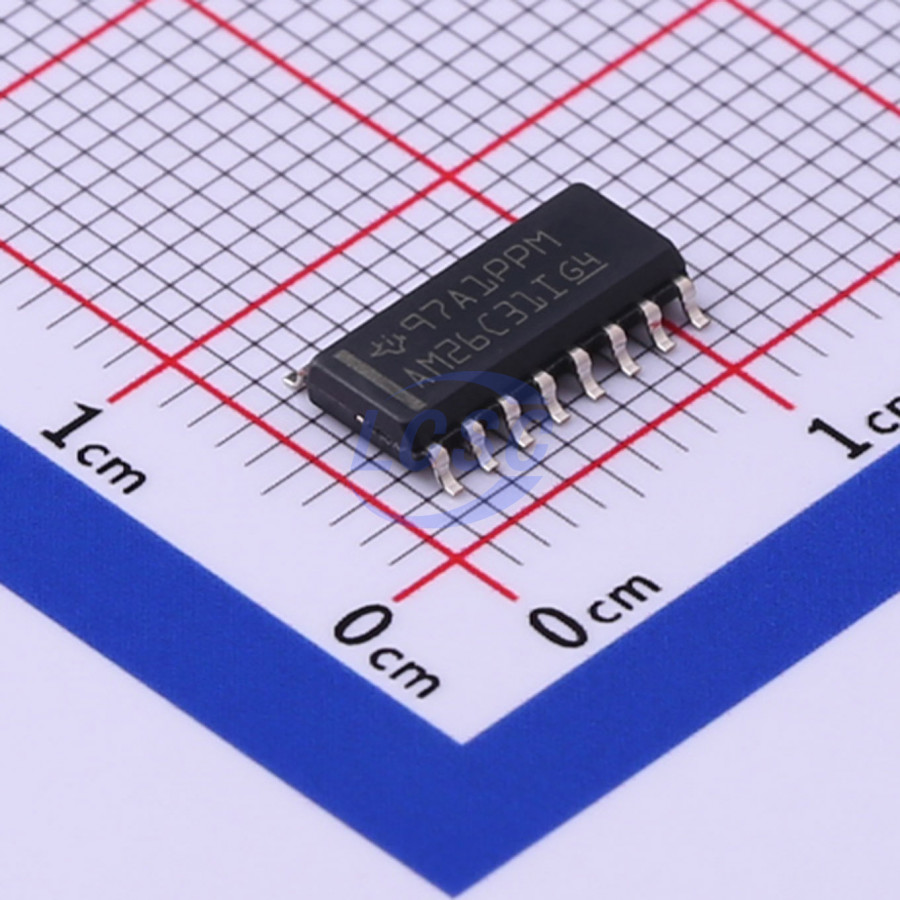

AM26C31IDR

4.5V~5.5V 20mA 20mA SOIC-16 Drivers, Receivers, Transceivers RoHS

SOIC-16ROHS3 CompliantActive

QUADRUPLE DIFFERENTIAL LINE DRIVER

Manufacturer: TI
Manufacturer part #: AM26C31IDR
Store part #: C34923
Package / case: SOIC-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

91,055 in stock

#C34923

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹47.52	₹237.60
50+	₹36.65	₹1,832.50
150+	₹31.34	₹4,701.00
500+	₹26.61	₹13,305.00
2,500+	₹25.30	₹63,250.00
5,000+	₹24.52	₹1,22,600.00

Quantity (min 5, multiples of 5)

5 × ₹47.52

₹237.60

excl. GST

₹280.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

AM26C31IDR

₹237.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4.5V~5.5V
Logic Family: AM26C31
Current - Output Low(IOL): 20mA
Propagation Delay: 7ns@5V,170pF
number of channels: 4
Operating Temperature: -40℃~+85℃
Output Type: Tri-State
Current - Output High(IOH): 20mA
Features: Power-off isolation;Output enable;Short-Circuit Protection
Quiescent Supply Current: 100uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.288 g

Overview

The AM26C31 is a differential line driver with complementary outputs, designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT). The three-state outputs have high current capability and can be used to drive balanced lines, such as twisted-pair or parallel transmission lines, and provide a high-impedance state in the power-off state. The enable function is common to all four drivers and offers the option of an active-high (G) or active-low (G bar) enable input. The BiCMOS circuit reduces power consumption without sacrificing speed.
