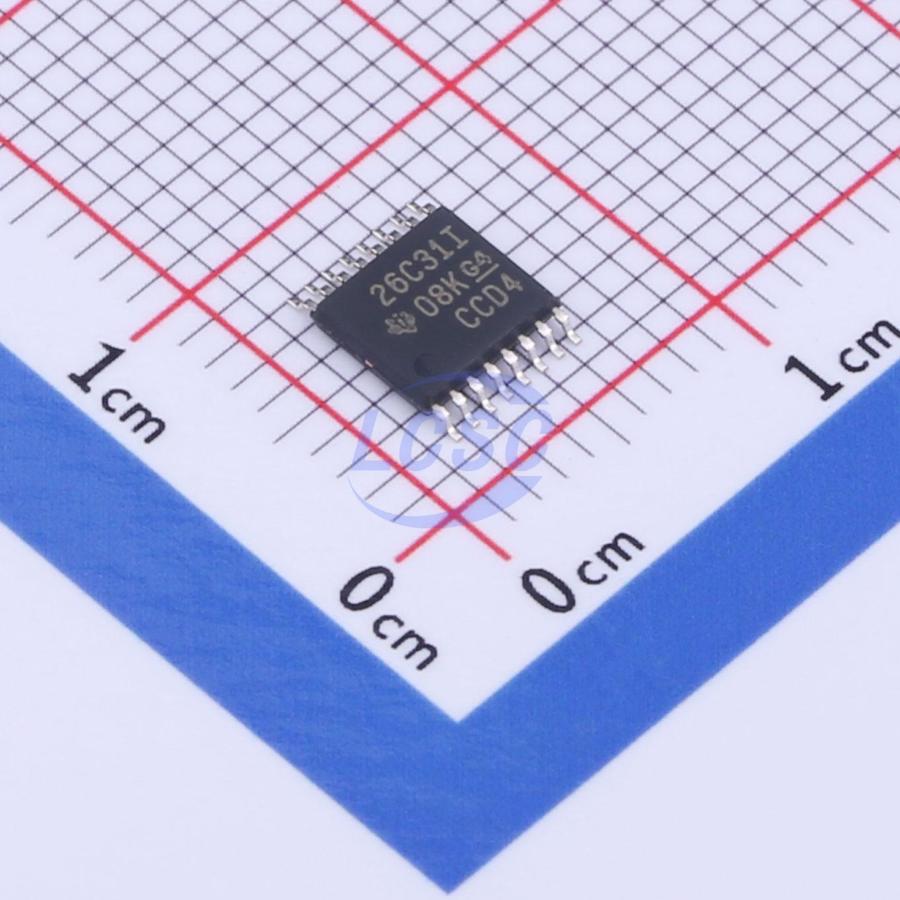

AM26C31IPWR
4.5V~5.5V 20mA 20mA TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS3 CompliantActive
Quadruple Differential Line Driver
- Manufacturer
- TI
- Manufacturer part #
- AM26C31IPWR
- Store part #
- C468241
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,305 in stock
#C468241
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.01 | ₹72.01 |
| 10+ | ₹56.12 | ₹561.20 |
| 30+ | ₹49.39 | ₹1,481.70 |
| 100+ | ₹41.12 | ₹4,112.00 |
| 500+ | ₹37.20 | ₹18,600.00 |
| 1,000+ | ₹35.03 | ₹35,030.00 |
1 × ₹72.01
₹72.01
excl. GST
₹84.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
AM26C31IPWR
₹72.01 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 7ns
- Current - Output Low(IOL)
- 20mA
- number of channels
- 4
- Operating Temperature
- -40℃~+85℃
- Output Type
- Tri-State
- Current - Output High(IOH)
- 20mA
- Features
- Power-off isolation;Output enable
- Quiescent Supply Current
- 100uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
The AM26C31 device is a differential line driver with complementary outputs, designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT). The 3-state outputs have high-current capability for driving balanced lines, such as twistedpair or parallel-wire transmission lines, and they provide the high-impedance state in the power-off condition. The enable functions are common to all four drivers and offer the choice of an active-high ( G) or active-low (G̅) enable input. BiCMOS circuitry reduces power consumption without sacrificing speed. The AM26C31C device is characterized for operation from 0℃ to 70℃, the AM26C31I device is characterized for operation from -40℃ to 85℃, the AM26C31Q device is characterized for operation over the automotive temperature range of -40℃ to 125℃, and the AM26C31M device is characterized for operation over the full temperature range of -55℃ to 125℃.
Applications
- Chemical and Gas Sensors
- Field Transmitters: Temperature Sensors and Pressure Sensors
- Motor Control: Brushless DC and Brushed DC
- Temperature Sensors and Controllers Using Modbus
Key features
- Meets or Exceeds the Requirements of TIA/EIA422-B and ITU Recommendation V.11
- Low Power, ICC = 100 μA Typical
- Operates From a Single 5-V Supply
- High Speed, tPLH = tPHL = 7 ns Typical
- Low Pulse Distortion, tsk(p) = 0.5 ns Typical
- High Output Impedance in Power-Off Conditions
- Improved Replacement for AM26LS31 Device
- Available in Q-Temp Automotive
- High-Reliability Automotive Applications
- Configuration Control and Print Support
- Qualification to Automotive Standards
