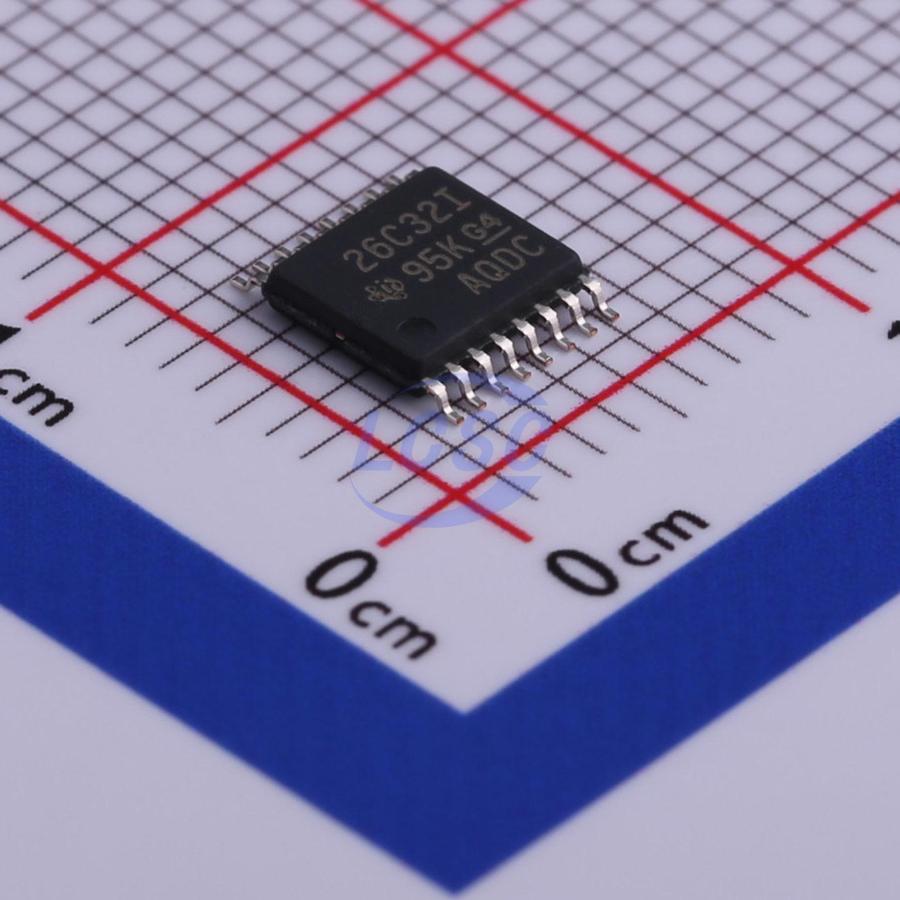

AM26C32IPWR

The AM26C32 device is a quadruple differential line receiver for balanced or unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design specifies that if the inputs are open, the outputs always are high. The AM26C32 devices are manufactured using a BiCMOS process, which is a combination of bipolar and CMOS transistors. This process provides the high voltage and current of bipolar with the low power of CMOS to reduce the power consumption to about one-fifth that of the standard AM26LS32, while maintaining AC and DC performance.

Applications

• High-Reliability Automotive Applications
• Factory Automation
• ATM and Cash Counters
• Smart Grid
• AC and Servo Motor Drives

Key features

• Meets or exceeds the requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendation V.10 and V.11
• Low power, Icc = 10 mA typical
• ±7-V common-mode range with ±200-mV sensitivity
• Input hysteresis: 60 mV typical
• Δfpd = 17 ns typical
• Operates from a single 5-V supply
• 3-state outputs
• Input fail-safe circuitry
• Improved replacements for AM26LS32 device
• Available in Q-Temp Automotive
