TIDatasheet (PDF)

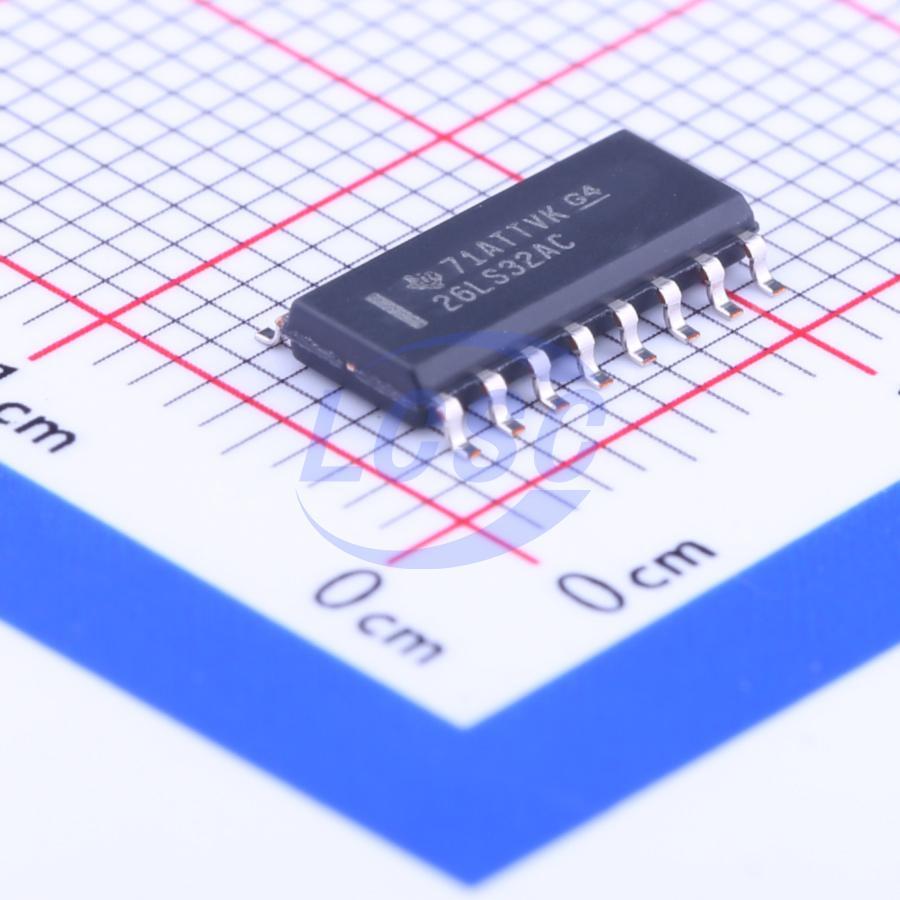

AM26LS32ACDR
4.75V~5.25V Receiver SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
QUADRUPLE DIFFERENTIAL LINE RECEIVERS
- Manufacturer
- TI
- Manufacturer part #
- AM26LS32ACDR
- Store part #
- C6180
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49,829 in stock
#C6180
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.96 | ₹64.96 |
| 10+ | ₹49.74 | ₹497.40 |
| 30+ | ₹42.15 | ₹1,264.50 |
| 100+ | ₹35.42 | ₹3,542.00 |
| 500+ | ₹33.67 | ₹16,835.00 |
| 1,000+ | ₹32.59 | ₹32,590.00 |
1 × ₹64.96
₹64.96
excl. GST
₹76.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AM26LS32ACDR
₹64.96 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Receiver
- Operating Temperature
- 0℃~+70℃
- Number of Drivers
- 0
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 4
- Quiescent Supply Current
- 52mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.314 g
Overview
Applications
- Industrial data transmission
- Communication systems
- Computer networks
- Balanced and unbalanced digital data transmission
Key features
- AM26LS32A Devices Meet or Exceed the Requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendations V.10 and V.11
- AM26LS32A Devices Have ±7-V Common-Mode Range With ±200-mV Sensitivity
- AM26LS33A Devices Have ±15-V Common-Mode Range With ±500-mV Sensitivity
- Input Hysteresis... 50 mV Typical
- Operate From a Single 5-V Supply
- Low-Power Schottky Circuitry
- 3-State Outputs
- Complementary Output-Enable Inputs
- Input Impedance... 12 kΩ Minimum
- Designed to Be Interchangeable With Advanced Micro Devices AM26LS32 and AM26LS33
