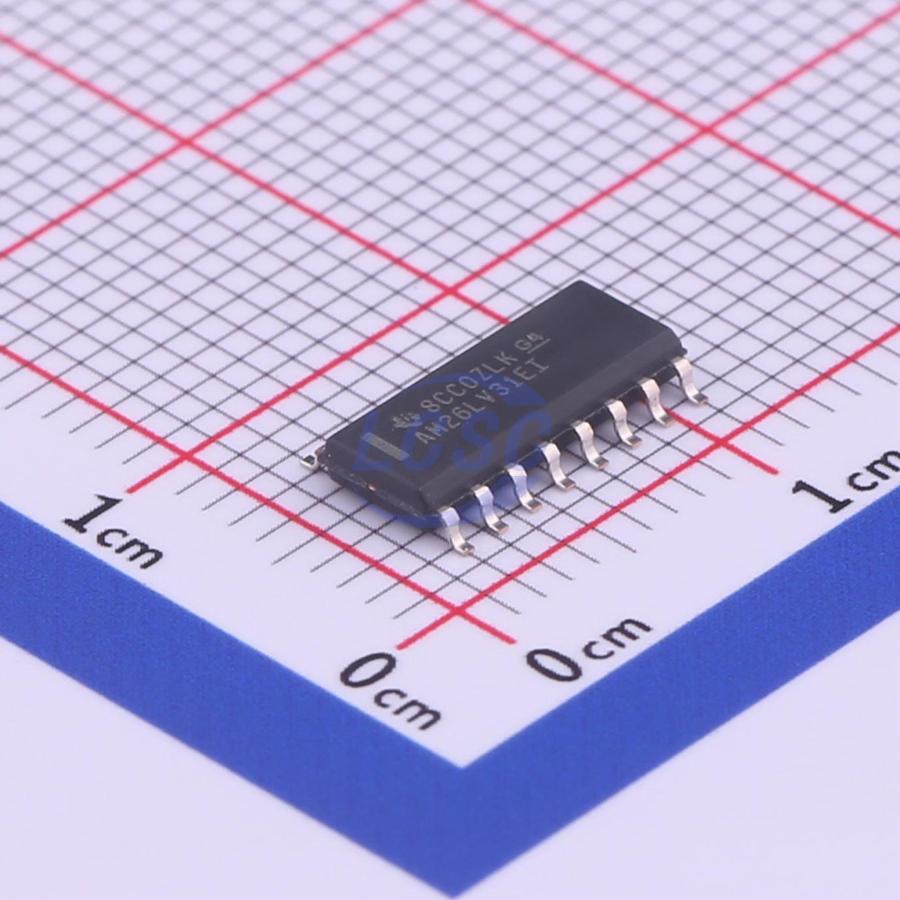

AM26LV31EIDR

The AM26LV31E is a quadruple differential line driver with 3-state outputs. This driver has ±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge) protection. This device is designed to meet TIA/EIA-422-B and ITU Recommendation V.11 drivers with reduced supply voltage. The device is optimized for balanced-bus transmission at switching rates up to 32 MHz. The outputs have high current capability for driving balanced lines, such as twisted-pair transmission lines, and provide a high impedance in the power-off condition. The AM26LV31EI is characterized for operation from -40°C to +85°C.

Applications

• Motor Drives
• Medical Healthcare and Fitness
• Wireless Infrastructure
• Factory Automation and Control

Key features

• Meets or Exceeds Standards TIA/EIA-422-B and ITU Recommendation V.11
• Operates From a Single 3.3-V Power Supply
• ESD Protection for RS422 Bus Pins: ±15-kV Human-Body Model (HBM)
• ±8-kV IEC61000-4-2, Contact Discharge
• ±15-kV IEC61000-4-2, Air-Gap Discharge
• Switching Rates Up to 32 MHz
• Propagation Delay Time: 8 ns Typical
• Pulse Skew Time: 500 ps Typical
• High Output-Drive Current: ±30 mA
• Controlled Rise and Fall Times: 5 ns Typical
• Differential Output Voltage With 100-Ω Load: 2.6 V Typical
• Accepts 5-V Logic Inputs With 3.3-V Supply
• Supports Partial-Power-Down Mode Operation
• Driver Output Short-Protection Circuit
• Glitch-Free Power-Up and Power-Down Protection
• Package Options: SO, SOIC, TSSOP, VQFN
