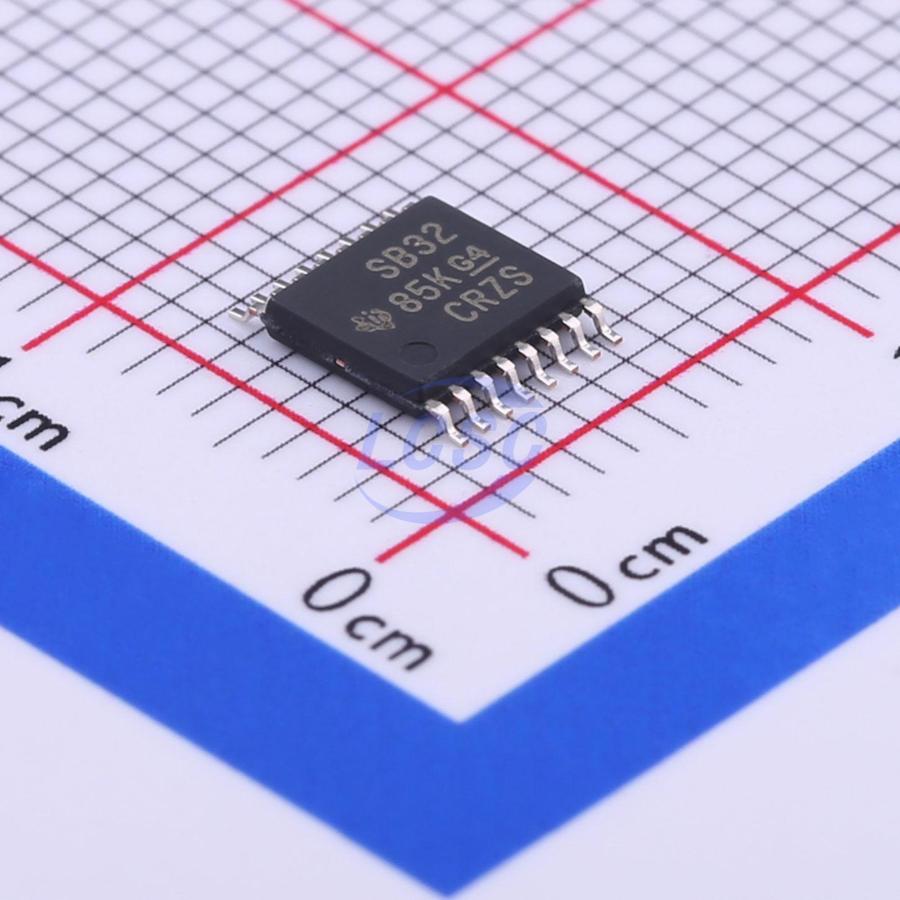

AM26LV32EIPWR

The AM26LV32E device consists of quadruple differential line receivers with 3-state outputs. This device is designed to meet TIA/EIA-422-B and ITU recommendation V.11 drivers with reduced supply voltage. The device is optimized for balanced bus transmission at switching rates up to 32 MHz. The 3- state outputs permit connection directly to a bus-organized system. The AM26LV32E has an internal fail-safe circuitry that prevents the device from putting an unknown voltage signal at the receiver outputs. In the open fail-safe, shorted fail-safe, and terminated fail-safe, a high state is produced at the respective output. This device is supported for partial-powerdown applications using |off. |off circuitry disables the outputs, preventing damaging current back-flow through the device when it is powered down.

Applications

• High-Reliability Automotive Applications
• Configuration Control/Print Support
• ATM and Cash Counters
• Smart Grid
• AC and Servo Motor Drives

Key features

• Meets or Exceeds Standard TIA/EIA-422-B and ITU Recommendation V.11
• Operates From a Single 3.3-V Power Supply
• Switching Rates up to 32 MHz
• ESD Protection for RS422 Bus Pins (See ESD Ratings)
• Low Power Dissipation: 27 mW Typ
• Open Circuit, Short Circuit, and Terminated Fail Safe
• ±7-V Common-Mode Input Voltage Range With ±200-mV Sensitivity
• Accepts 5-V Logic Inputs With 3.3-V Supply (Enable Inputs)
• Input Hysteresis: 35 mV Typ
• Pin-to-Pin Compatible With AM26C32, AM26LS32
• |off Supports Partial-Power-Down Mode Operation
