HGSEMIDatasheet (PDF)

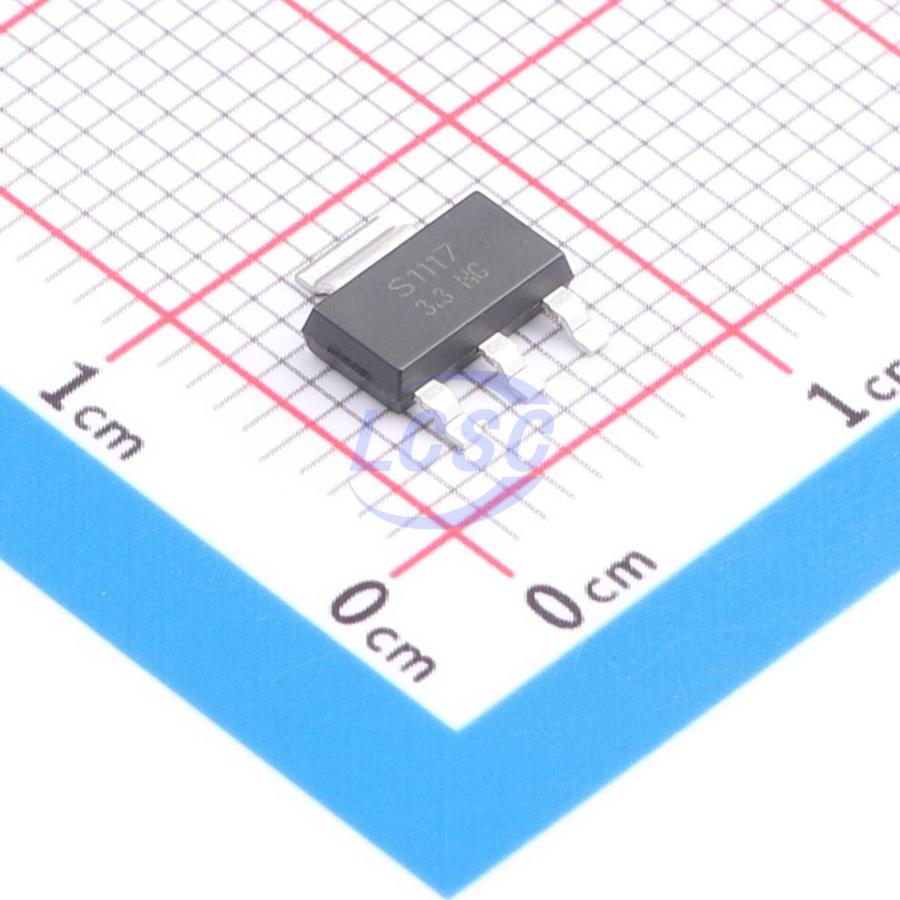

AMS1117-3.3/TR
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOT-223
SOT-223RoHSActive
800mA LDO voltage regulator circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- AMS1117-3.3/TR
- Store part #
- C22461603
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,810 in stock
#C22461603
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.86 | ₹586.00 |
| 300+ | ₹5.08 | ₹1,524.00 |
| 2,500+ | ₹4.17 | ₹10,425.00 |
| 5,000+ | ₹3.70 | ₹18,500.00 |
| 10,000+ | ₹3.47 | ₹34,700.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-3.3/TR
₹74.40 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.385 g
Overview
The AMS1117 is a positive-voltage, low-dropout three-terminal linear voltage regulator with a 1.2V dropout voltage at 800mA output current. It is available in two versions: fixed voltage output and adjustable voltage output. Fixed output voltages are 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. The adjustable version and fixed-voltage versions (except 1.2V) offer 1% output voltage accuracy, while the 1.2V fixed version offers 2% accuracy. With integrated thermal shutdown and current limiting protection, it is suitable for a wide range of electronic applications.
Key features
- Fixed output voltages of 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable versions with 1% output voltage accuracy
- Fixed 1.2V output accuracy: 2%
- Low dropout voltage: 1.2V at 800mA output current
- Current limiting
- Thermal shutdown
- Temperature range: -40°C~125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC33269MP-3.3/TR#C46614067HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,305 | ₹17.24 · 2,305 in stock | View |
 | LM1117MP-3.3/TR#C498153HGSEMI · SOT-223-3L | HGSEMI | SOT-223-3L | On request | ₹12.67 · 0 in stock | View |
 | LM1117IMP-3.3/TR#C5116310HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,740 | ₹15.43 · 2,740 in stock | View |
 | MIC39100MP-3.3/TR#C3007920HGSEMI · SOT-223 | HGSEMI | SOT-223 | 353 | ₹70.45 · 353 in stock | View |
