Advanced Monolithic SystemsDatasheet (PDF)

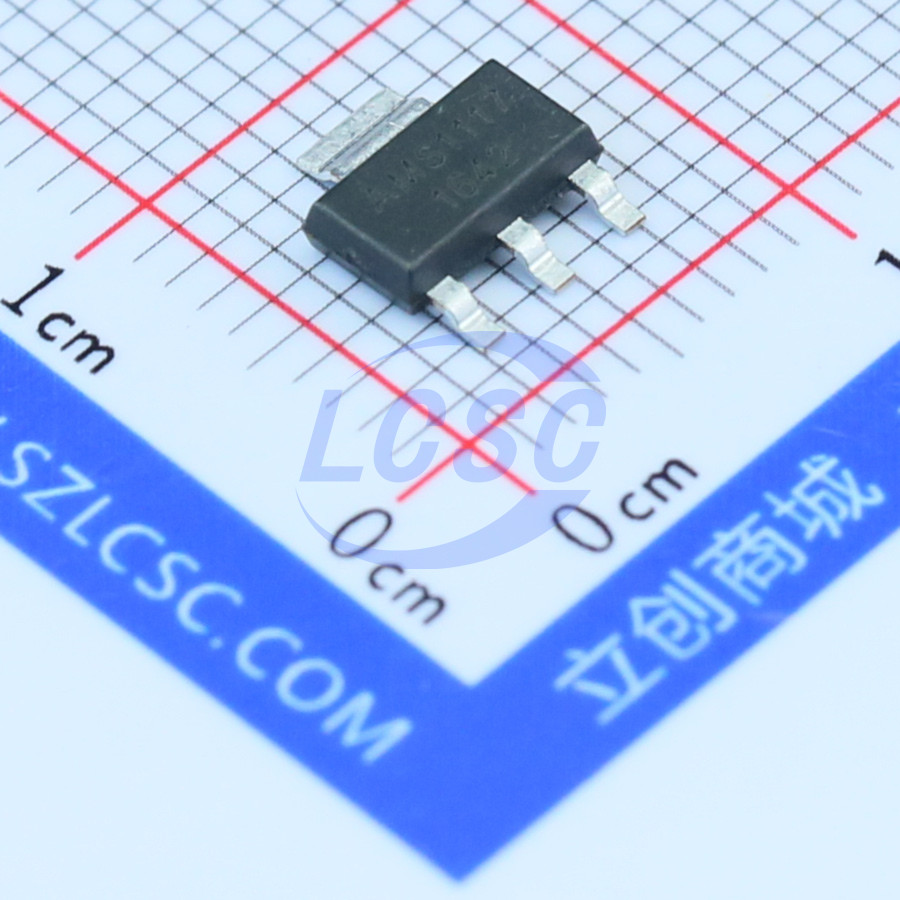

AMS1117-ADJ
1.25V~12V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
1A Low Dropout (LDO) Regulator
- Manufacturer
- Advanced Monolithic Systems
- Manufacturer part #
- AMS1117-ADJ
- Store part #
- C6188
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,750 in stock
#C6188
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.98 | ₹159.90 |
| 50+ | ₹25.16 | ₹1,258.00 |
| 150+ | ₹22.23 | ₹3,334.50 |
| 500+ | ₹18.59 | ₹9,295.00 |
| 2,500+ | ₹16.96 | ₹42,400.00 |
| 5,000+ | ₹15.98 | ₹79,900.00 |
5 × ₹31.98
₹159.90
excl. GST
₹188.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-ADJ
₹159.90 for 5 + GST
Specifications
- Output Voltage
- 1.25V~12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.236 g
Overview
The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry. The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.
Applications
- High Efficiency Linear Regulators
- Post Regulators for Switching Supplies
- 5V to 3.3V Linear Regulator
- Battery Chargers
- Active SCSI Terminators
- Power Management for Notebook
- Battery Powered Instrumentation
Key features
- Three Terminal Adjustable or Fixed Voltages: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
- Output Current of 1A
- Operates Down to 1V Dropout
- Line Regulation: 0.2% Max.
- Load Regulation: 0.4% Max.
- SOT-223, TO-252 and SO-8 package available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AZ1117H-ADJTRE1#C92103DIODES · SOT-223 | DIODES | SOT-223 | 7,655 | ₹24.09 · 7,655 in stock | View |
 | AMS1117-ADJ#C963406JSMSEMI · SOT-223-3 | JSMSEMI | SOT-223-3 | 6,090 | ₹7.49 · 6,090 in stock | View |
 | CBM1117C-ADJ#C918919Corebai Microelectronics · SOT-223-3 | Corebai Microelectronics | SOT-223-3 | On request | ₹39.40 · 0 in stock | View |
 | Sk1117-ADJ#C475601Shikues · SOT-223-4 | Shikues | SOT-223-4 | 1,640 | ₹8.15 · 1,640 in stock | View |
 | JTD1117A-ADJ#C42443430JTD · SOT-223 | JTD | SOT-223 | 2,030 | ₹5.94 · 2,030 in stock | View |
