VBsemi ElecDatasheet (PDF)

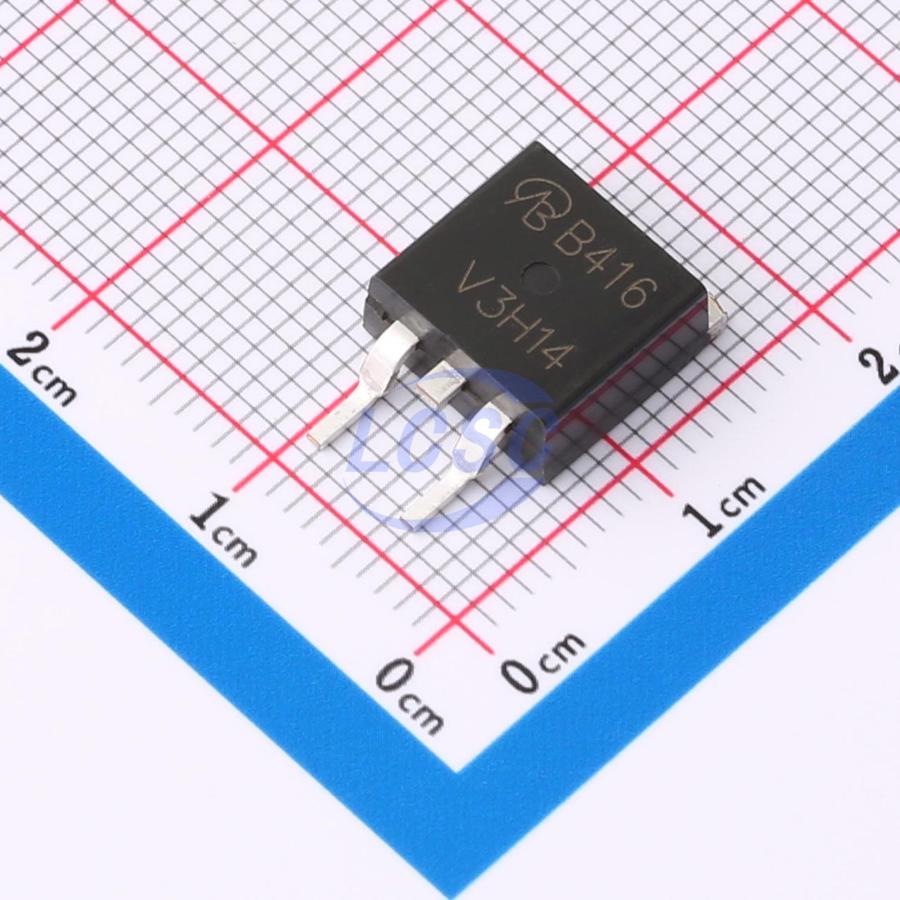

AOB416-VB
N-Channel 100V 45A 127W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)ROHS CompliantActive
MOSFET N-CH 100V 45A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOB416-VB
- Store part #
- C7568752
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568752
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.49 | ₹131.49 |
| 10+ | ₹107.55 | ₹1,075.50 |
| 50+ | ₹87.38 | ₹4,369.00 |
| 100+ | ₹75.41 | ₹7,541.00 |
| 500+ | ₹68.28 | ₹34,140.00 |
| 1,000+ | ₹64.71 | ₹64,710.00 |
1 × ₹131.49
₹131.49
excl. GST
₹155.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOB416-VB
₹131.49 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 410pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 127W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.49 g
Overview
Applications
- Battery, load, and adapter switching
- Notebook computers
- Notebook computer battery packs
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- RoHS compliant
