DIODESDatasheet (PDF)

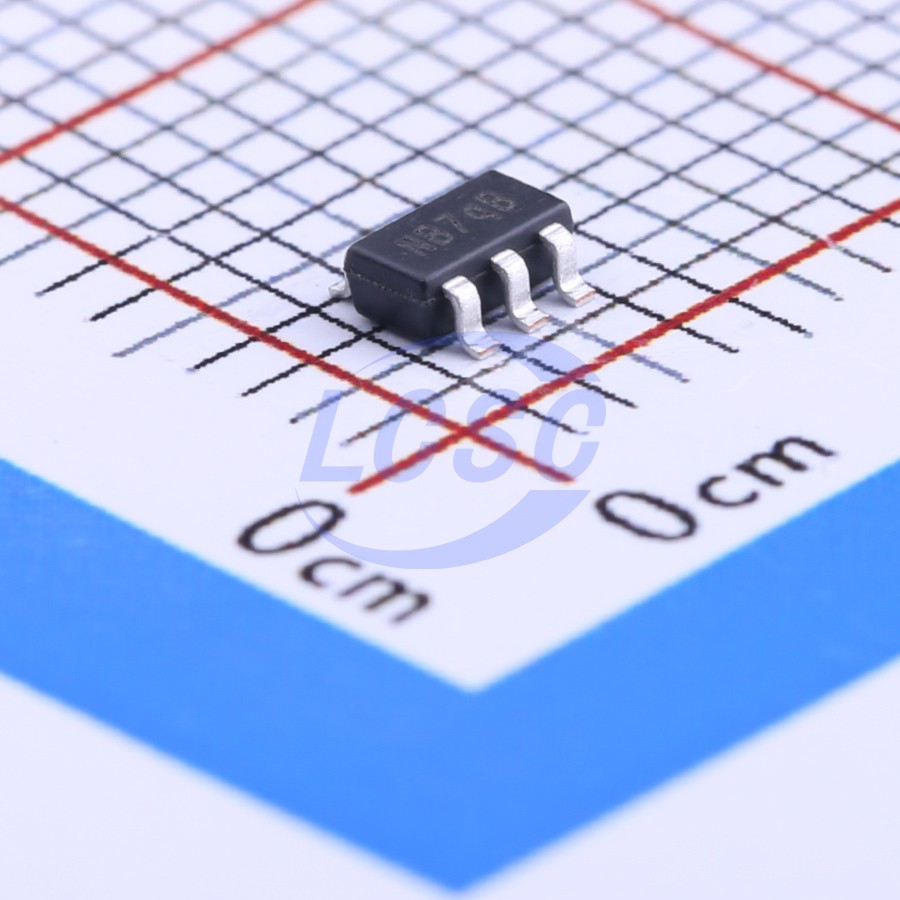

AP133-WG-7
1V~5V Positive Adjustable SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
ADJ Input 6V Output 1V~5V 300mA
- Manufacturer
- DIODES
- Manufacturer part #
- AP133-WG-7
- Store part #
- C141331
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C141331
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.72 | ₹128.60 |
| 50+ | ₹20.41 | ₹1,020.50 |
| 150+ | ₹18.14 | ₹2,721.00 |
| 500+ | ₹15.31 | ₹7,655.00 |
| 3,000+ | ₹14.05 | ₹42,150.00 |
| 6,000+ | ₹13.30 | ₹79,800.00 |
5 × ₹25.72
₹128.60
excl. GST
₹151.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP133-WG-7
₹128.60 for 5 + GST
Specifications
- Output Voltage
- 1V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The AP133 is a 300mA, adjustable output voltage, low dropout linear regulator. The device includes pass element, error amplifier, bandgap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low dropout voltage and less quiescent current make it good for low power applications, for example, battery powered devices. The typical quiescent current is approximately 40μA from zero to maximum load. Built- in current- limit and thermal- shutdown functions prevent IC from damage in fault conditions. The AP133 is available in SOT25 and DFN2020- 6 packages.
Applications
- Cellular Phones
- Smart Phones, PDAs
- MP3/MP4
- Bluetooth Head Set
- Low Power Application
Key features
- 300mA Low Dropout Regulator with EN
- Very Low Io: 40μA
- Wide Input Voltage Range: 2V to 6V
- Adjustable Output: 1V to 5V
- High PSRR: 65dB at 1kHz
- Ultra- fast Start- Up Time: 25μs
- Stable with Low ESR, 1μF Ceramic Output Capacitor
- Excellent Load/Line Transient Response
- Low Dropout: 350mV at 300mA
- Current Limit Protection
- Short Circuit Protection
- Thermal Shutdown Protection
- Ambient Temperature Range: - 40°C to +85°C
- SOT25 and DFN2020- 6: Available in "Green" Molding Compound (No Br, Sb)
