DIODES

AP139-30WG-7

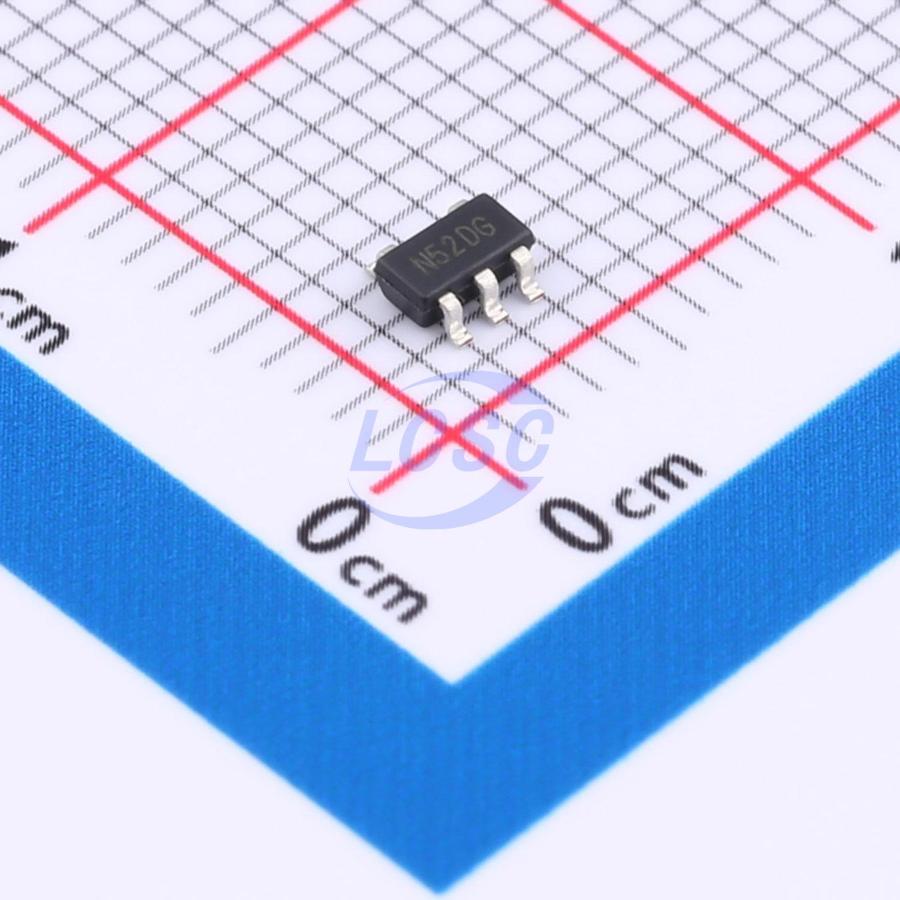

3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS CompliantActive

300mA Low-Noise CMOS LDO

Manufacturer: DIODES
Manufacturer part #: AP139-30WG-7
Store part #: C460650
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

80 in stock

#C460650

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹19.26	₹96.30
50+	₹18.85	₹942.50
150+	₹18.57	₹2,785.50
500+	₹18.30	₹9,150.00

Quantity (min 5, multiples of 5)

5 × ₹19.26

₹96.30

excl. GST

₹113.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP139-30WG-7

₹96.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 45uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The AP139 is a positive voltage linear regulator utilizing CMOS technology. The features that include low quiescent current (45µA typ.), low dropout voltage, and high output voltage accuracy, make it ideal for battery applications. EN input connected to the device will produce a low bias current. The space - saving SOT25 package is attractive for "pocket" and "hand held" applications. This rugged device has both thermal shutdown, and current limit protections to prevent device failure under the "worst" operating conditions. In a low noise, regulated supply application, a 10nF capacitor is necessary to be placed in between Bypass and Ground. The AP139 is stable with a low ESR output capacitor of 1.0μF or greater.

Applications

Personal Communication Devices
Home Electric/Electronic Appliances
PC Peripherals
Battery - Powered Devices

Key features

Very Low Dropout Voltage
Low Current Consumption: Typ. 45µA, max. 60µA
Output Voltage: 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, and 3.5V
Guaranteed 300mA Output
Input Range from 2.7 up to 5.5V
Thermal Shutdown
Current Limiting
Stability with Low ESR Capacitors
Low Temperature Coefficient
Lead Free Package: SOT25
SOT25: Available in "Green" Molding Compound (No Br, Sb)
Lead Free Finish/RoHS Compliant
