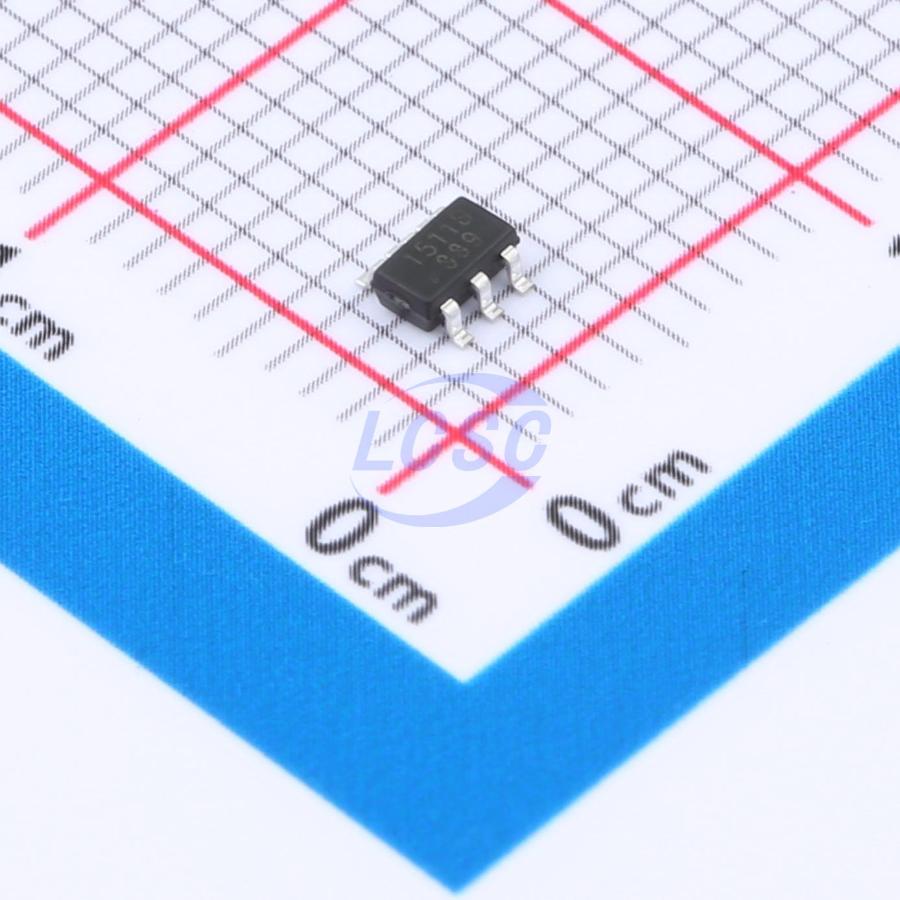

AP1511-MS
SOT-23-6 Motor Drivers, Controllers
Integrated motor driver solution
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AP1511-MS
- Store part #
- C19272817
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C19272817
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.76 | ₹68.80 |
| 50+ | ₹10.89 | ₹544.50 |
| 150+ | ₹9.46 | ₹1,419.00 |
| 500+ | ₹8.37 | ₹4,185.00 |
| 3,000+ | ₹7.51 | ₹22,530.00 |
| 6,000+ | ₹7.08 | ₹42,480.00 |
5 × ₹13.76
₹68.80
excl. GST
₹81.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP1511-MS
₹68.80 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Motor stall protection;Current sensing/regulation function;Active braking function;Soft-start;Soft switching
- Technology
- Yes
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 20uA
- Output Current
- 1.2A
- Peak Current
- 2.5A
- RDS(on)
- 550mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
AP1511-MS provides an integrated motor driver solution for security electronics, smart hardware, and other low-voltage or battery-powered motion control applications. The device is capable of driving one brushed DC motor, featuring an internal charge pump to generate the required gate drive voltage and an H-bridge consisting of four power NMOS transistors, with integrated forward/reverse motor control functionality. The AP1511-MS supports a maximum operating voltage of 7.5V, continuous current of 1.2A, and peak current of 2.5A. It also integrates protection features including over-temperature protection and under-voltage lockout (UVLO). The AP1511-MS features a PWM (FBC) input interface, compatible with industry-standard devices.
Applications
- IR - CUR Security Electronics
Key features
- Operating voltage range: 2.0 - 7.5V
- Continuous current 1.2A, peak 2.5A
- Low on-resistance: 550mΩ ([HS+LS])
- Compatible with 1.8V/3.3V/5.0V IO
- Low standby current
- Low quiescent current
- Integrated over-temperature protection
- Integrated under-voltage protection
- SOT-23-6 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP1511B-MS#C19272816MSKSEMI · SOT-23-6 | MSKSEMI | SOT-23-6 | 2,475 | ₹14.38 · 2,475 in stock | View |
